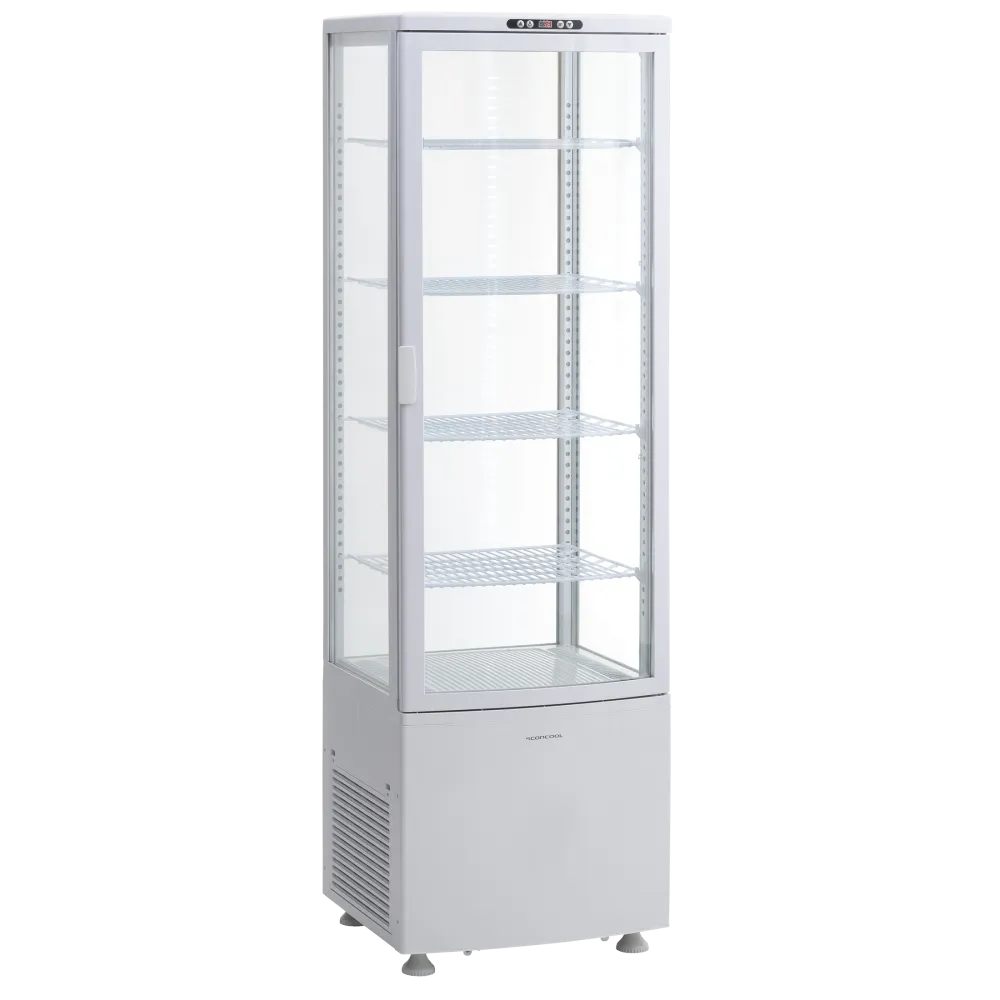

Refrigerated display cabinet SCANDOMESTIC 19310237WE10000

A refrigerated display case keeps chilled goods visible while maintaining a steady low temperature. The unit draws heat from the stored items and expels it through a refrigeration cycle. A compressor circulates refrigerant, which absorbs heat inside the cabinet and releases it outside. Ventilated cooling uses a fan to move cold air evenly across every shelf, preventing warm spots and ensuring consistent chilling from front to back. This method allows the case to hold products at a precise temperature without freezing them, making it suitable for items that need gentle cooling rather than deep freezing.

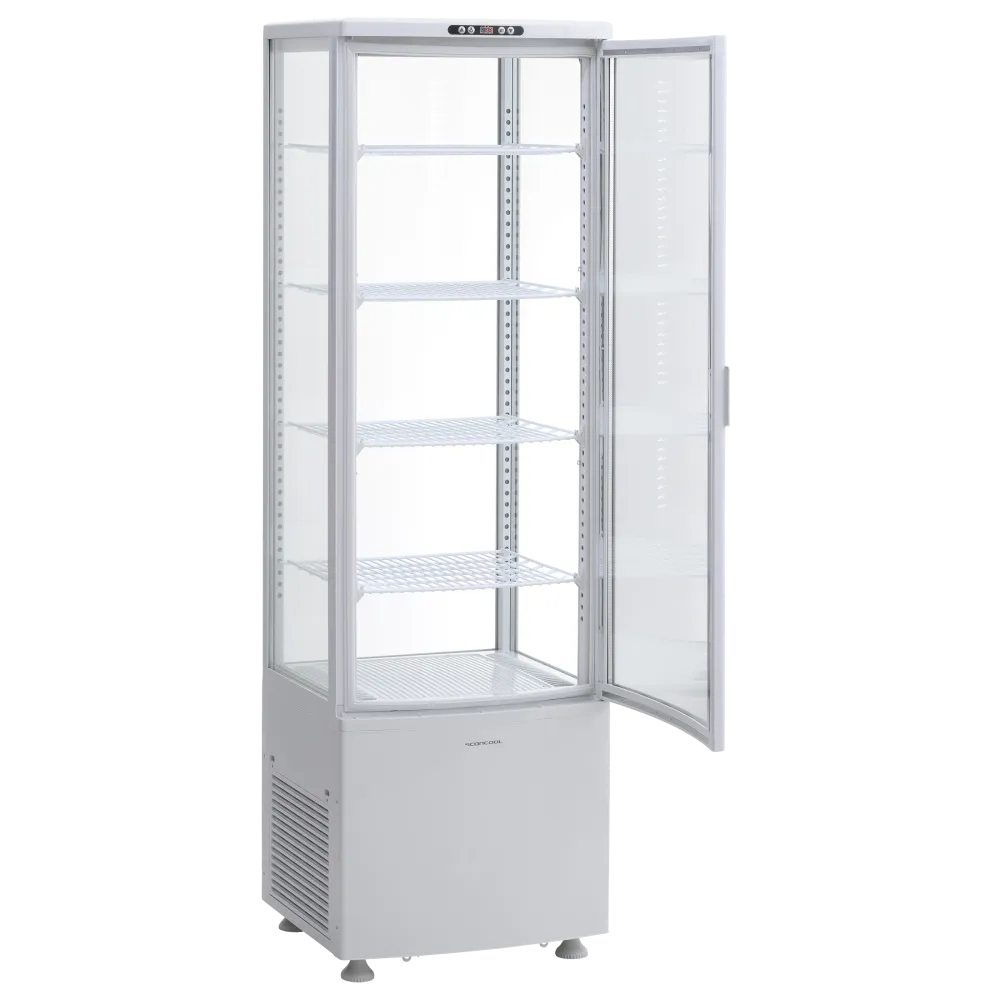

The operator loads the four adjustable shelves with goods, then sets the desired temperature on the external digital display. The ventilated system circulates cold air continuously, while the double-glazed glass sides retain the chill and showcase the products. Two vertical LED lights illuminate the interior, highlighting the goods for customers. The door lock secures the contents overnight or during closing hours.

The case is constructed with a white exterior and double-glazed glass panels on all sides. Four adjustable feet allow levelling on uneven floors, and the four shelves measure 410 by 370 mm each. The refrigerant used is R600a, with a charge of 90 g, and the unit operates on a 220–240 V, 50 Hz supply.

The temperature range of 0 to 12 °C accommodates a variety of chilled goods, from dairy and deli items to prepared foods and beverages. The 176 L volume provides ample space for organised display, while the 80.5 kg weight indicates a sturdy build that requires careful positioning on the shop floor. The 515 mm width, 485 mm depth and 1690 mm height define the footprint, fitting into most retail layouts without occupying excessive floor space.

Cleaning involves wiping the glass panels with a non-abrasive cleaner to maintain visibility, and the adjustable shelves can be removed for thorough washing. The ventilated cooling system requires periodic dusting of the condenser to ensure efficient operation. The LED lighting does not generate heat, reducing the cooling load and extending bulb life.

The RTC 237 WE is available in white with glass sides, and the model is designed for retail environments such as bakeries, delicatessens, cafés and convenience stores. The catalogue places it in refrigerated display equipment for professional catering use.
