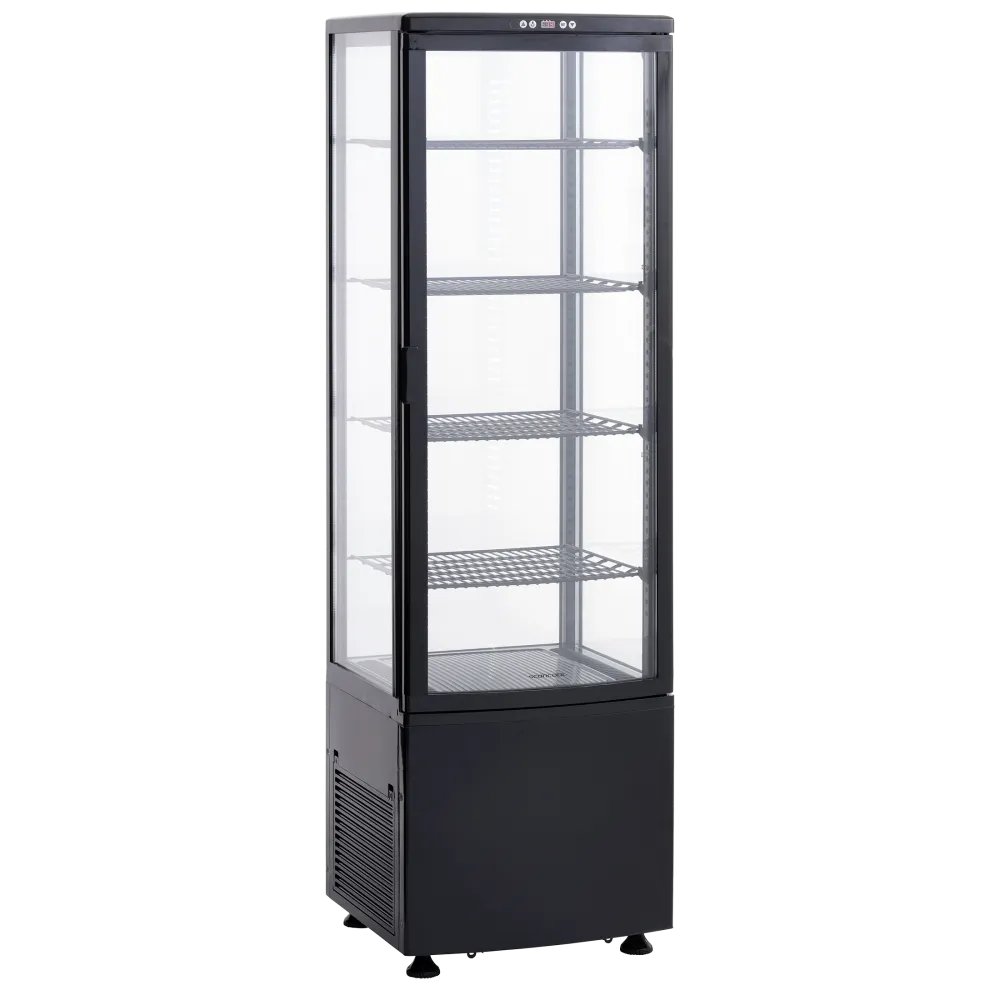

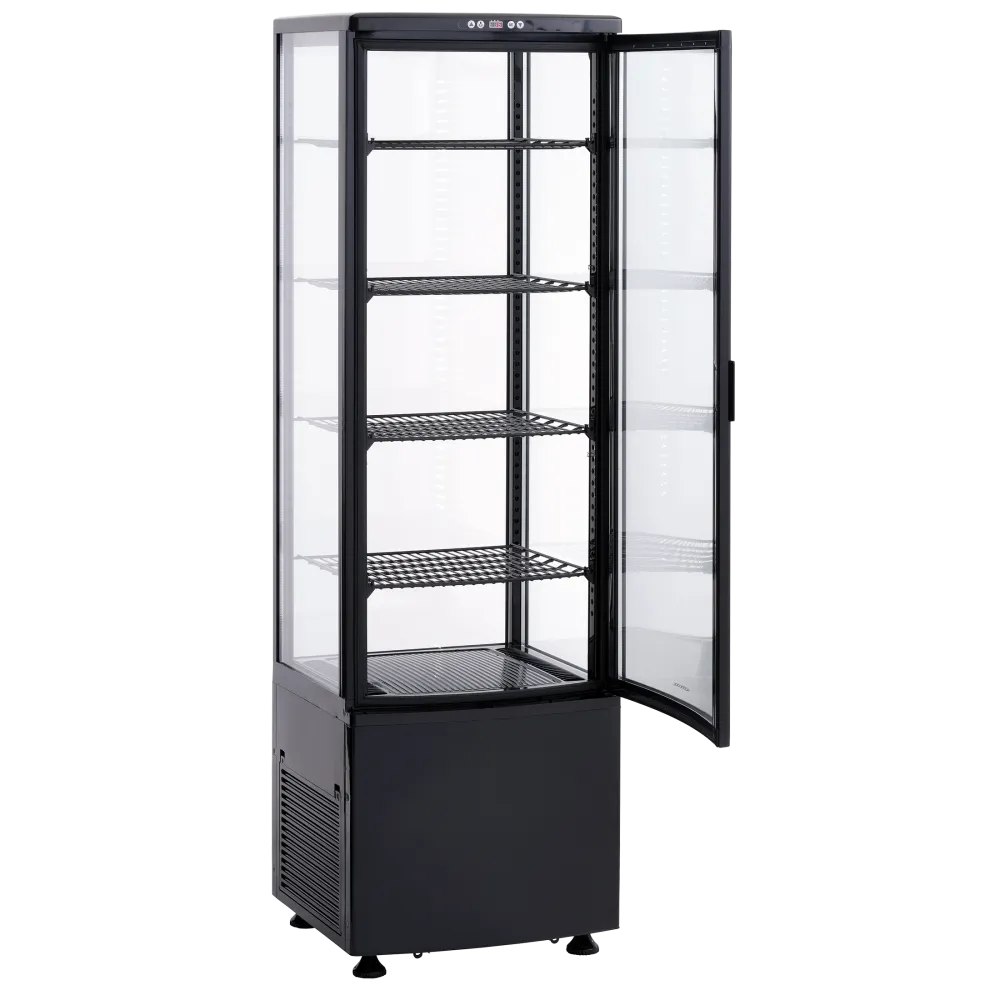

Refrigerated display cabinet SCANDOMESTIC 19310237BE10000

This refrigerated display case showcases chilled items while preserving a consistent low temperature. A compressor and refrigerant system remove heat from the interior, releasing it through a rear condenser. A fan distributes cooled air evenly, maintaining uniform temperature across all shelves. The refrigerant, R600a, absorbs heat during evaporation and releases it during compression, sustaining an interior range of 0 °C to 12 °C in any environment.

Connect the unit to a 220–240 V supply and allow it to reach the desired temperature. Arrange products on the four adjustable shelves, ensuring unobstructed airflow. The external digital control panel enables precise temperature settings and monitoring without opening the door. Two vertical LED strips provide even illumination, enhancing product visibility. A door lock secures contents during unsupervised periods.

The black steel frame features double-glazed glass on all sides, offering clear visibility from any angle. Four adjustable feet ensure stability on uneven floors, while the ventilated cooling system promotes consistent airflow. The four shelves, each 410 mm by 370 mm, can be repositioned or removed to fit taller items. The 176 litre capacity accommodates a full day's stock of chilled goods.

A 220–240 V connection suits standard single-phase supplies in British commercial settings. Energy consumption stands at 4.44 kWh per 24 hours, covering continuous operation of the compressor, fan, and LED lights. Weighing 80.5 kg, the unit remains stable but can be relocated with assistance. The dimensions of 515 mm width, 485 mm depth, and 1,690 mm height allow passage through standard doorways.

Cleaning involves wiping the glass with mild detergent, washing removable shelves separately, and vacuuming the rear condenser coil to sustain airflow. LED lights require only occasional dusting. The sealed 90 g refrigerant charge needs no replenishment under normal conditions.

The RTC 237 BE model is available in black with glass sides and vertical LED lighting.
