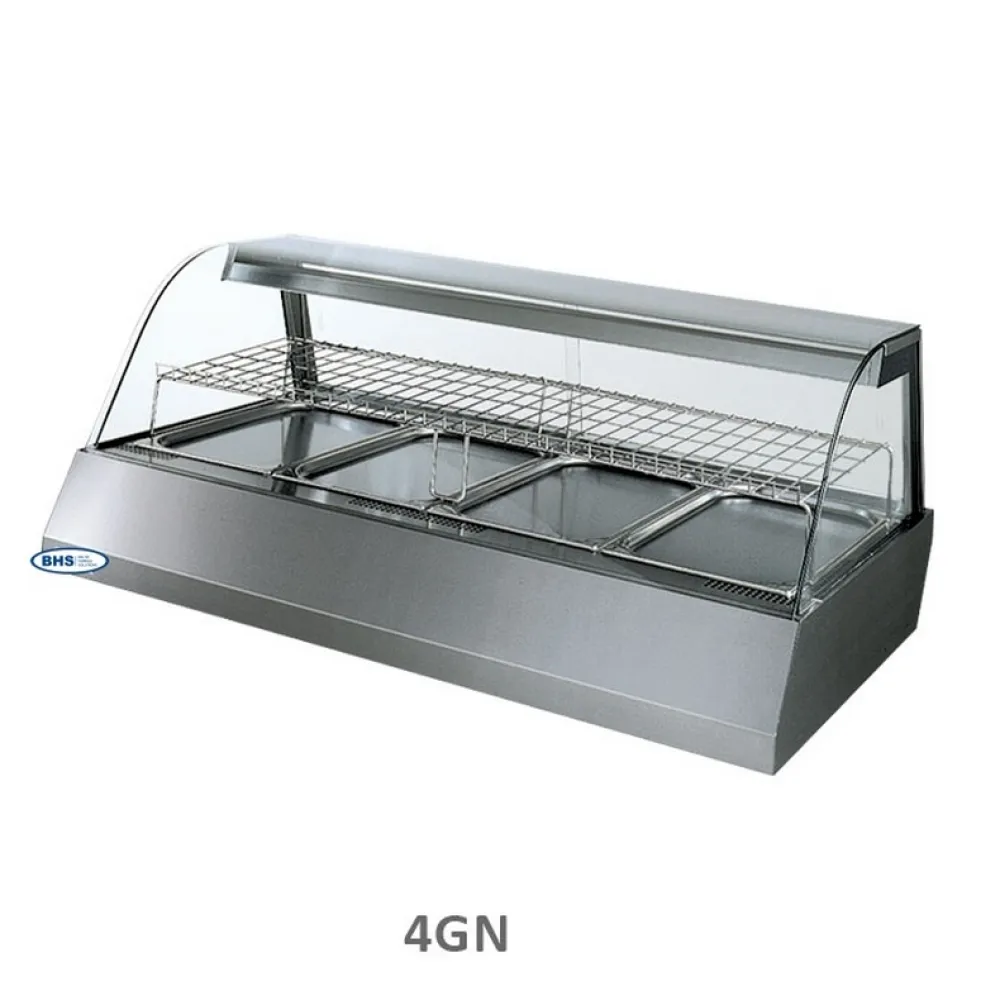

Hot display case UNIS COOL 1130140

A heated display case keeps prepared dishes at serving temperature while presenting them through clear glass. The Kentucky Hot 4GN uses forced convection: an axial fan draws air across a heating element and circulates it evenly around the chamber. This method eliminates cold spots and maintains consistent warmth across every shelf, so each dish stays ready to serve without drying out.

A built-in water reservoir adds controlled humidity to the circulating air. The moisture prevents food from losing texture or flavour during holding, and the fan ensures the humidity is distributed evenly throughout the cabinet. The operator fills the reservoir, sets the mechanical thermostat on the rear panel to the desired temperature between +30 and +90 °C, and switches the unit on. Once the temperature stabilises, dishes are loaded onto the removable wire grid. A fluorescent bulb above the shelves illuminates the contents, making the display attractive to customers.

The case is constructed from stainless steel, including the interior and exterior surfaces. The front glass is rounded for easy cleaning and replacement. A single shelf is provided, measuring 1280 mm long, 400 mm deep and 172 mm high, giving a clear workspace for plated dishes or trays. The overall dimensions are 1410 mm wide, 755 mm deep and 585 mm high, allowing it to fit on most worktops or counters.

The 2.122 kW power rating indicates the load the unit draws. The 94 kg weight means the case is moved with a trolley or by two people, and it should stand on a stable, level surface to prevent strain on the glass or frame.

Cleaning involves wiping the stainless steel surfaces and glass with a damp cloth and mild detergent. The water reservoir should be emptied and rinsed daily to prevent mineral build-up. The wire grid lifts out for thorough cleaning, and the fluorescent bulb can be replaced without tools when it dims.

The Kentucky Hot 4GN is listed in the catalogue under hot-holding equipment for professional kitchens and front-of-house displays.
