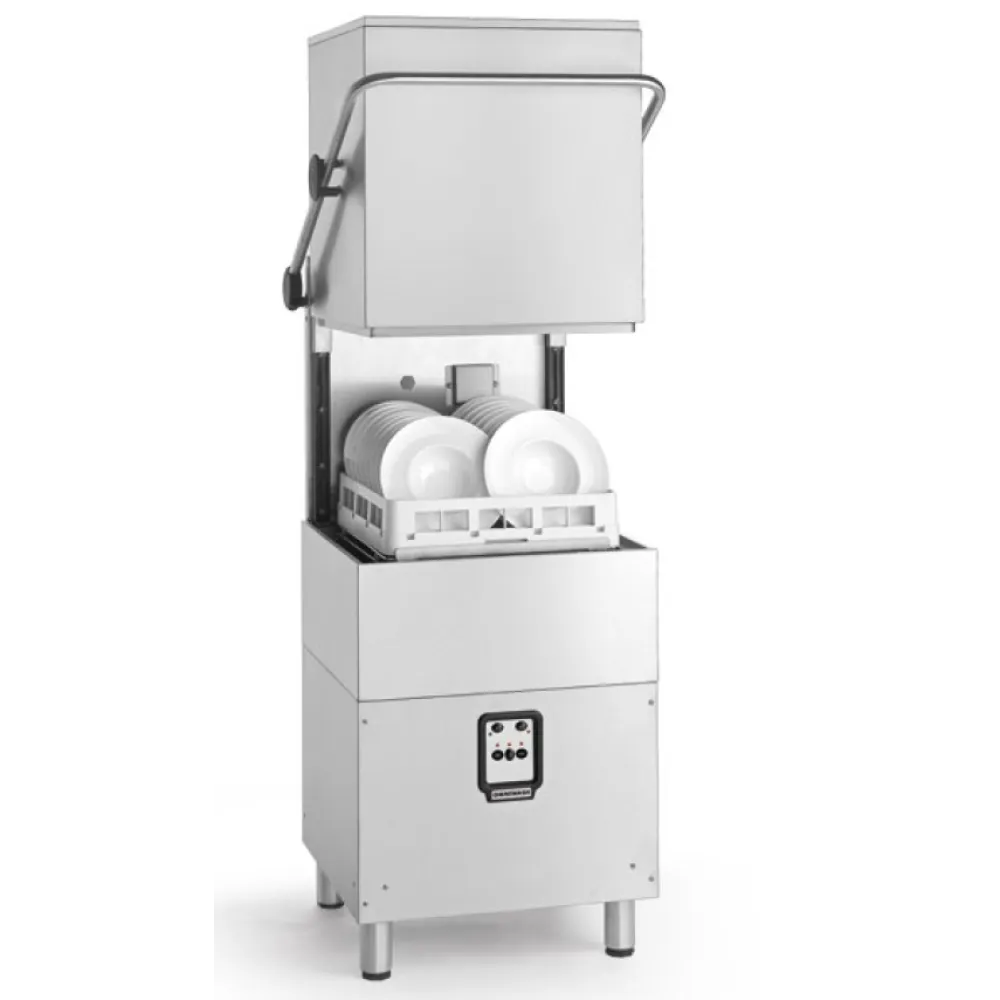

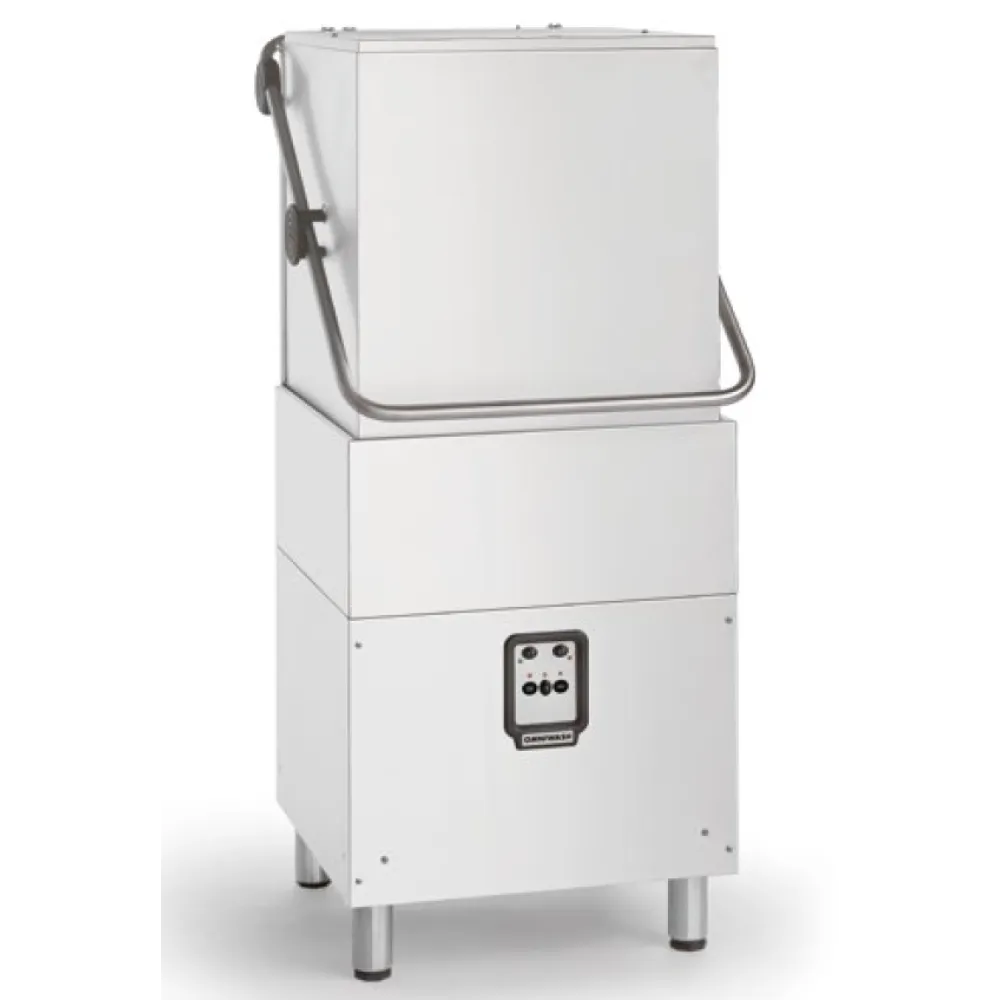

Hood-Type Dishwasher OMNIWASH S60

The OMNIWASH SMART 60 is a hood type dishwasher, identified by article number S60.

This type of dishwasher operates by drawing water into a wash tank, heating it to a specific temperature for washing, and then draining it. A separate boiler heats water to a higher temperature for rinsing. The machine uses powerful jets to spray water and detergent onto the dishes held within a basket. The hood mechanism allows for easy loading and unloading of these baskets and seals the washing chamber during operation, helping to maintain temperature and contain noise.

To use the SMART 60, place soiled dishes in a 500x500 mm basket, ensuring no single dish exceeds 430 mm in height. Position the basket within the machine and lower the hood to initiate the wash cycle. The standard wash cycle runs for either 90 or 180 seconds. Following the wash, a rinse cycle takes place at 82 °C to sanitise the dishes. The machine then drains the used water.

The wash tank has a capacity of 60 litres and is powered by a 4.5 kW heating element. The boiler has a capacity of 8 litres and a power rating of 6 kW, dedicated to heating the rinse water. The wash pump has a power of 0.75 kW. The total connected load for the unit is 6.75 kW, operating on a 400 V supply.

The unit measures 705 mm in length, 841 mm in width, and 1474 mm in height. It weighs 108 kg. The machine requires a water pressure between 2 and 4 bar for optimal operation, with a maximum inlet water temperature of 50 °C. The noise level during operation does not exceed 75 dBA.

Cleaning involves draining the wash tank and cleaning its components. The boiler and wash pump are integral parts of the washing system.

This appliance is listed in the catalogue under professional dishwashers and specifically under hood dishwashers.
