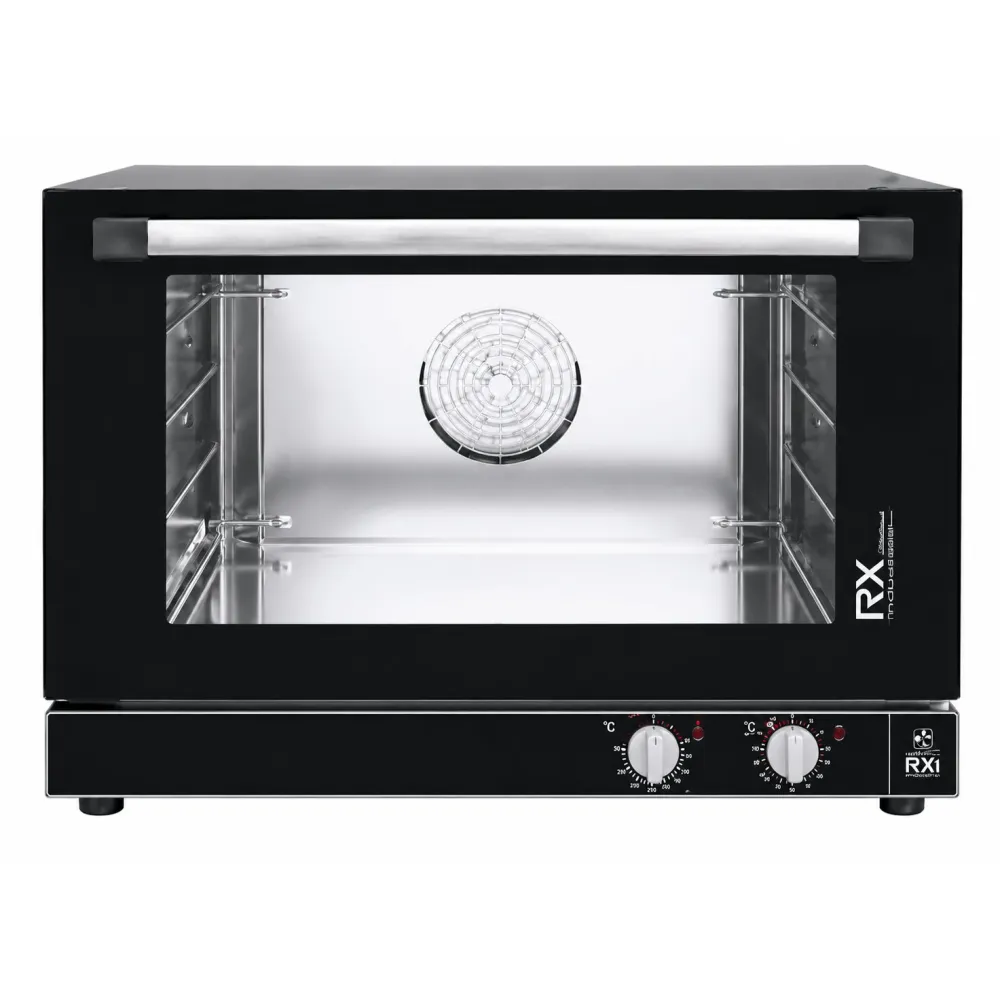

Convection oven FM industrial RX 604 V26

The RX 604 V26 is a bakery oven from FM industrial. Convection ovens cook food by circulating hot air. A fan within the oven draws air over a heating element and then distributes this heated air throughout the cooking chamber. Operation involves placing food items onto trays, which are then inserted into the oven. The desired cooking time is set using the timer, which can be adjusted manually for durations up to 60 minutes, or set to continuous operation. The oven temperature is also manually adjusted, with a maximum setting of 250 °C. Indicator lights show when the oven is heating and when the timer is active. The oven is equipped with a safety thermostat and an alarm sounds when the set cooking time has elapsed. An interior light illuminates the cooking chamber for visual checks. The cooking chamber is constructed from AISI 430 stainless steel. It features a double-glazed door for insulation and two-position tray guides, with a spacing of 80 mm between trays. The fan is designed to reverse direction, aiding in even heat distribution. A door microswitch is fitted for safety. The power rating of 5.7 kW indicates the electrical load the oven will place on the supply. The external dimensions are 820 mm in length, 755 mm in width, and 550 mm in height. The oven weighs 58 kg. Internal dimensions measure 680 mm by 470 mm by 365 mm. The oven operates on a 400 V supply. Cleaning can be carried out on the stainless steel cooking chamber and the door. A version, the RX 604 H V26, includes a humidifier function. This oven is listed in the catalogue under RX series electric convection ovens.
