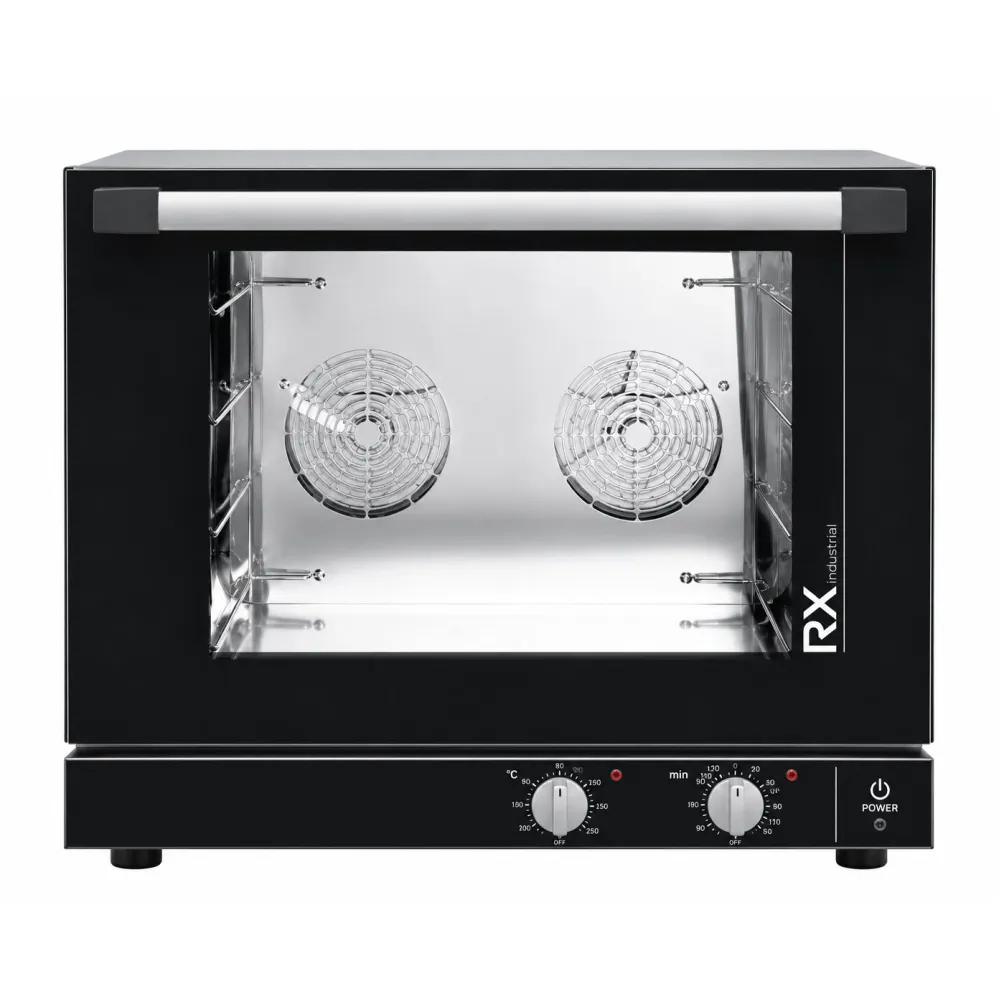

Convection oven FM industrial RX 424 PLUS V26

The FM industrial RX 424 PLUS V26 is a bakery oven designed for professional use.

Convection cooking operates by circulating hot air within the cooking chamber. This method provides even heat distribution around the food, leading to consistent baking results. The temperature within the chamber is manually adjusted by the user, with a maximum setting of 250 degrees Celsius.

Operation involves placing food on the provided trays, which are then positioned within the oven's cooking chamber. The oven has dual-position racks that can accommodate trays measuring 480x340 mm. The distance between these trays is 80 mm, allowing for good use of the internal space. The oven includes 4 trays. The cooking time is set manually using a timer, which can be adjusted up to 60 minutes, or set to continuous operation. Indicator lights show when the temperature has been reached and when the timer is active. An interior light illuminates the cooking chamber for visual checks. The oven also features a safety thermostat and an alarm that sounds when the cooking cycle is complete.

The cooking chamber is constructed from AISI 430 stainless steel. The oven is fitted with a double glass door and an ergonomic handle for ease of use.

Controls are manual, allowing for straightforward adjustment of cooking parameters. A timer is included for setting cooking durations.

The power rating of 3.8 kW indicates the electrical load the oven will place on the supply. Its dimensions are 700 mm in length, 670 mm in width, and 535 mm in height, defining the space it occupies. The maximum operating temperature of 250 °C dictates the range of baking processes possible. The oven operates on a 230 V electrical supply. Its weight of 44 kg provides an indication of its stability and handling requirements. The internal dimensions measure 560 mm by 415 mm by 345 mm, defining the usable cooking space. The capacity accommodates 4 trays of size 480x340 mm, or 4 GN 2/3 containers.

Cleaning involves the stainless steel interior and glass door. The oven includes a safety thermostat and an end-of-cycle alarm.

A variant, the RX 424 PLUS V26 H, includes a humidifier. This model is listed in the catalogue under the RX series.
