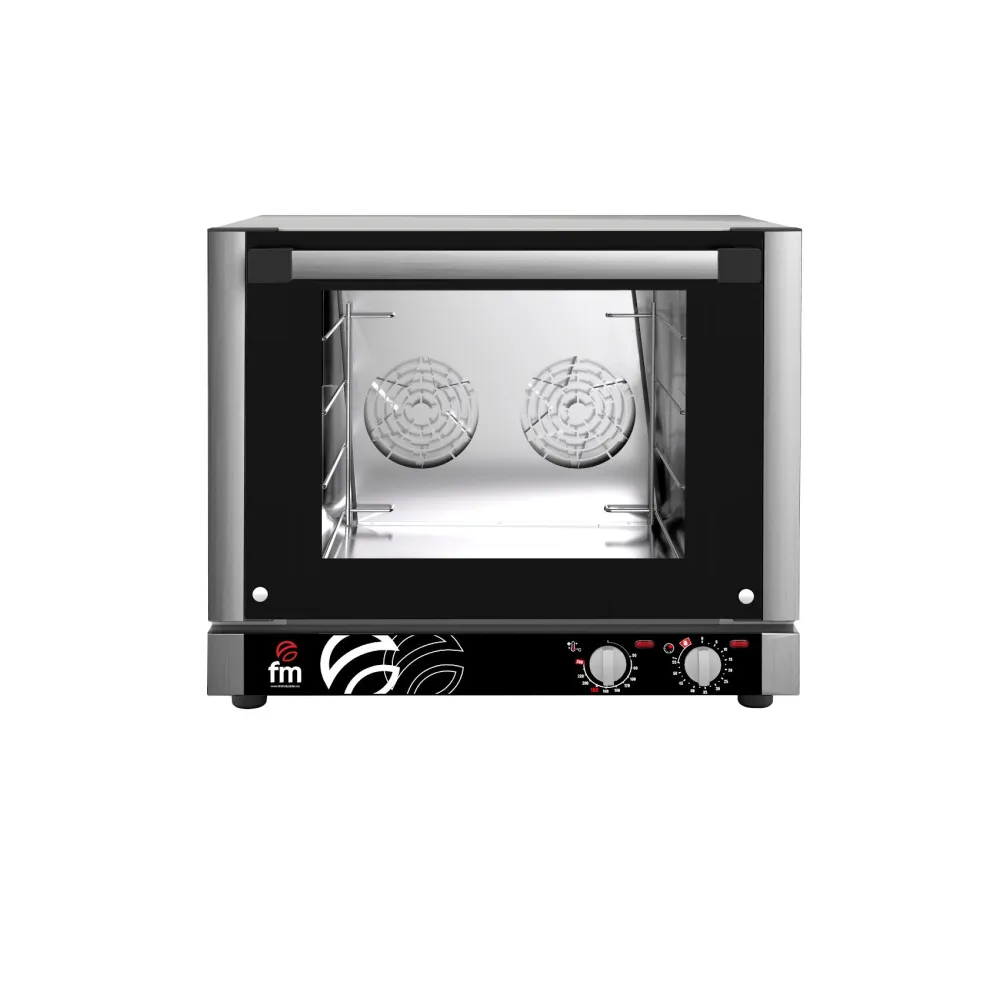

Convection oven FM industrial RX 424

The FM industrial RX 424 is a bakery oven designed for professional use. This appliance operates on the principle of convection heating. A fan circulates hot air within the oven chamber, ensuring even heat distribution around the food. This method allows for consistent cooking results across multiple levels.

To operate the RX 424, place food items onto the provided wire trays. The trays are spaced 80 mm apart within the oven cavity, accommodating up to four GN 2/3 sized pans or trays measuring 480x340 mm. Once loaded, the oven door is closed, and the desired cooking temperature is set, up to a maximum of 250 °C. A timer can be adjusted from 0 to 60 minutes, or the oven can be set to continuous mode for extended operation. An interior lamp illuminates the cooking chamber, allowing for visual checks without opening the door. A safety thermostat is incorporated for operational security.

Key specifications for the FM industrial RX 424 include its capacity for 4x GN 2/3 pans, a maximum operating temperature of 250 °C, and a power requirement of 3.1 kW at 230 V. The oven measures 640 mm in length, 710 mm in width, and 540 mm in height, with a total weight of 37 kg. The unit is part of the FM industrial RX series.

Cleaning of the interior and trays can be performed following standard procedures for convection ovens. The construction includes an interior lamp for visibility.
