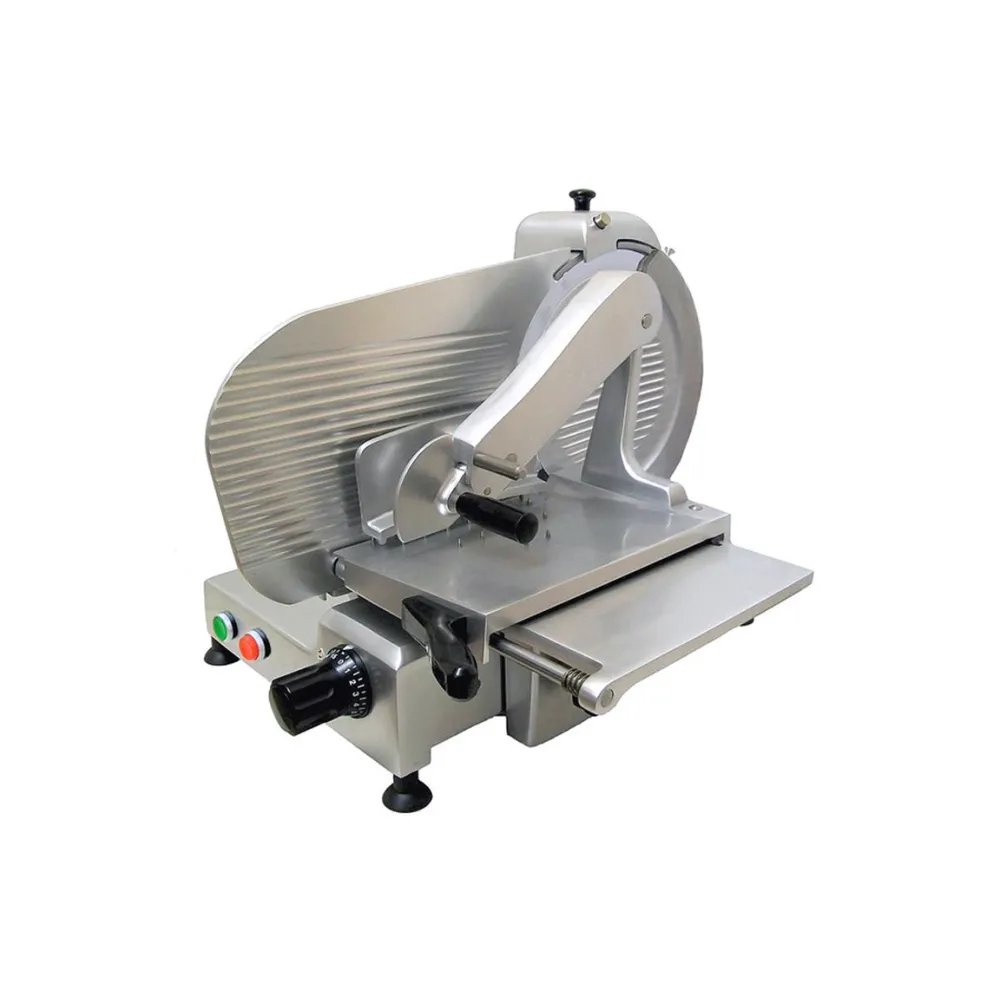

Slicer SAVIOLI AFV370

The SAVIOLI D-370 mm WSAV-AFV370 is a professional slicer designed for consistent food preparation.

Slicers operate by rotating a sharp blade against the food product. As the food is moved across the blade, it is cut into uniform slices. The thickness of these slices is controlled by an adjustable mechanism. This particular model uses a belt drive system, which contributes to smooth, quiet, and safe operation.

To use the slicer, the food product is placed against the blade. The operator then uses the graduated adjustment knob to set the desired slice thickness, ranging from 0 to 14 mm. Once the thickness is set, the machine is activated, and the food is passed across the rotating blade. The slicer is constructed from anodised aluminium, offering an easy-to-clean surface. A fixed blade sharpener is included to maintain blade efficacy. For cleaning purposes, the blade guard is removable.

The machine is powered by a 0.275 kW motor operating on a 230 V, single-phase supply. It rotates at 210 rpm. The unit measures 640 mm in length, 780 mm in width, and 540 mm in height, with a total weight of 39 kg. The design includes a plate with a column-type arm to support the food product during slicing.

Controls include the graduated adjustment knob for setting slice thickness from 0 to 14 mm. The removable blade guard aids in cleaning the blade area.

The power rating of 0.275 kW indicates the electrical load the machine places on the supply. The rotational speed of 210 rpm dictates the cutting action. The dimensions (640 mm x 780 mm x 540 mm) define the unit's footprint and how it will fit within a workspace. The weight of 39 kg provides an indication of its stability and the effort required for repositioning.

Cleaning is facilitated by the removable blade guard. The anodised aluminium construction is also designed for straightforward upkeep.

This slicer is listed in the catalogue under electromechanical equipment and slicer applications.
