Slicer SAVIOLI AFV300

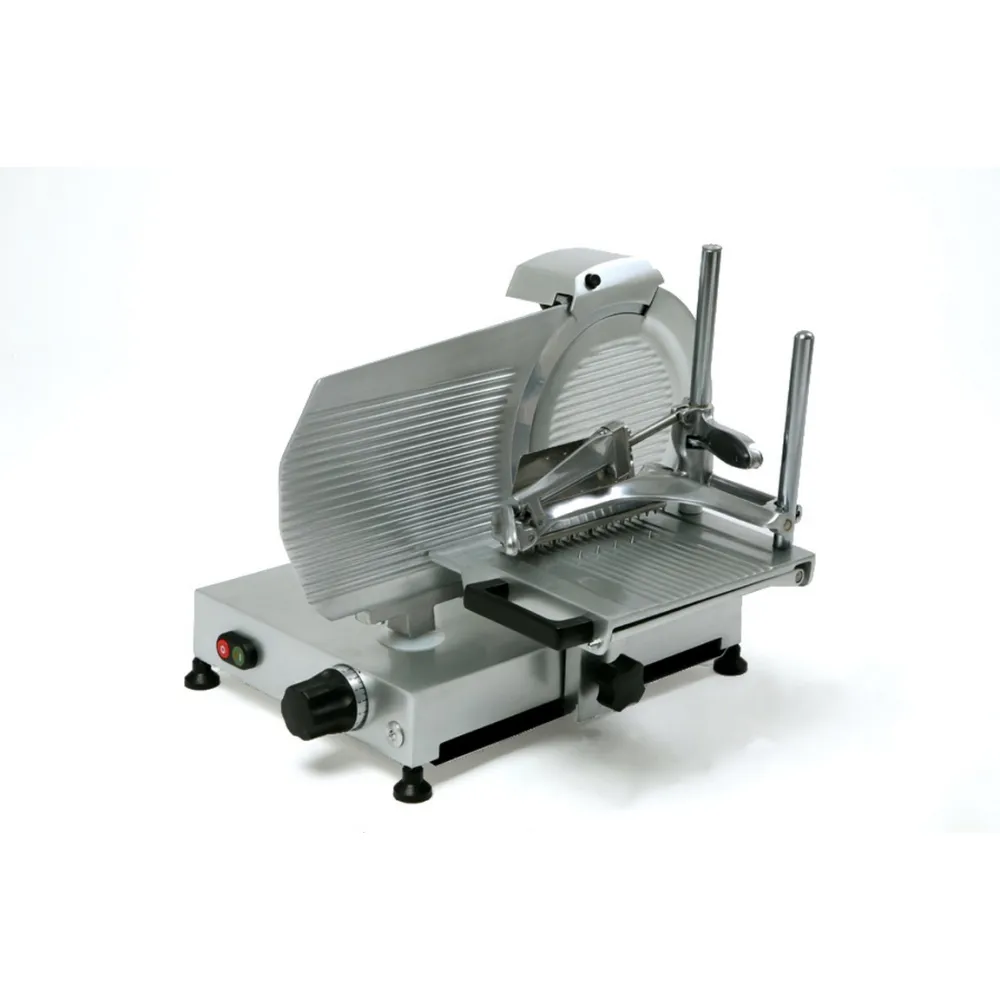

The SAVIOLI AFV300 is a professional slicer designed for food preparation. This machine features an anodised aluminium construction, providing a hygienic surface for food contact.

The operating principle of a slicer involves a rotating blade that cuts food placed against it. The thickness of each slice is determined by the distance between the blade and a guide plate. The SAVIOLI AFV300 uses a graduated adjustment knob, allowing the operator to set and control the precise thickness required for various applications. The smooth operation is facilitated by a belt drive system, which connects the motor to the blade.

Operation begins by placing the food item onto the plate, which is supported by a column-type arm. The operator then uses the graduated adjustment knob to set the desired slice thickness. Once set, the machine is activated, causing the blade to rotate. The food is then guided against the rotating blade to achieve uniform slices. The SAVIOLI AFV300 is equipped with a fixed blade sharpener, enabling the blade to be maintained in optimal cutting condition. The blade guard is removable for cleaning and maintenance purposes.

Key specifications include a blade diameter of 300 mm. The machine operates on a 230 V electrical supply and has a motor power of 0.21 kW. Its rotational speed is 275 rpm. The overall dimensions are 520 mm in length, 655 mm in width, and 475 mm in height, with a weight of 24.5 kg.

Cleaning and upkeep involve ensuring the removable blade guard is detached for thorough cleaning. The anodised aluminium surfaces should be wiped down after use. The fixed blade sharpener is part of the maintenance system for the blade itself.

This slicer is listed in the catalogue under electromechanical equipment and slicer applications.
