Self-service display counter ROCAM 01200HEKO5FBM

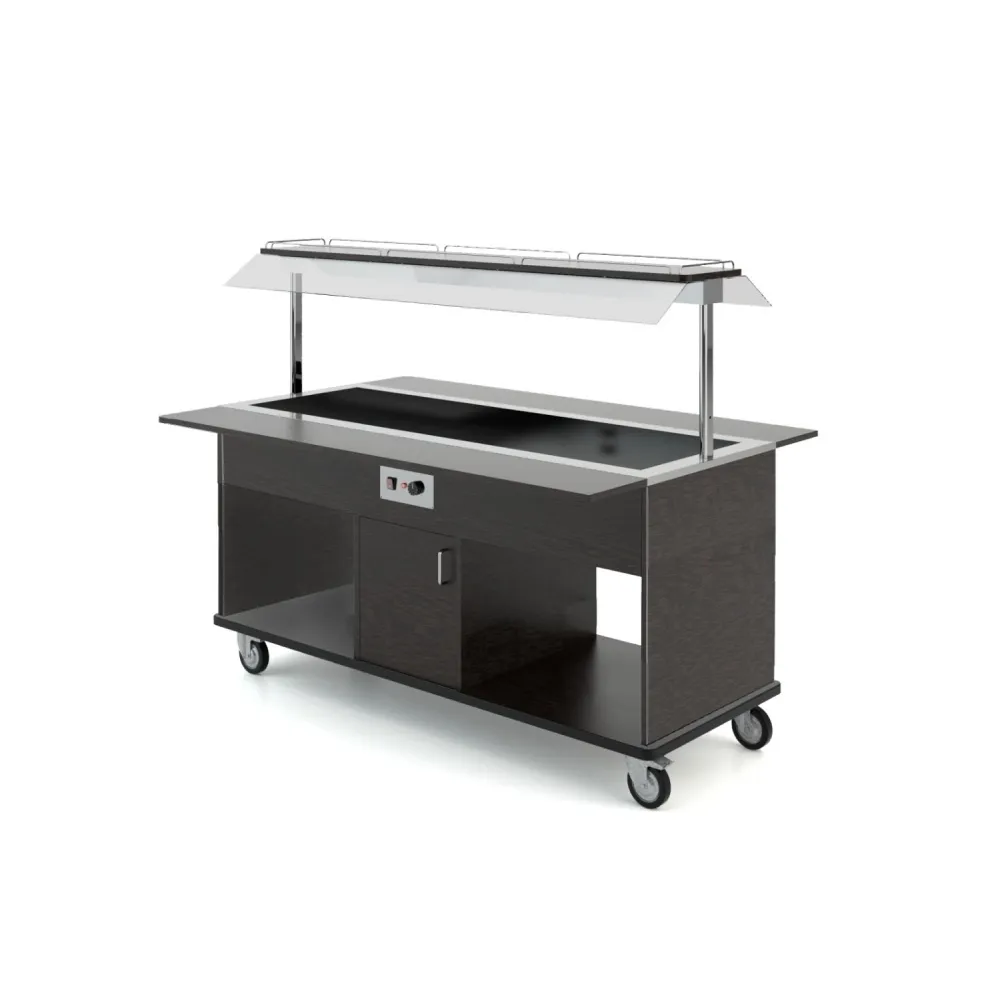

The ROCAM HEKO 5 BM is a heated buffet designed for self-service display cases. Its construction features a laminated wood structure complemented by chromed details.

The operating principle of this type of heated buffet, often referred to as a bain marie, involves heating elements positioned beneath a water-filled well. Food containers, typically Gastronorm (GN) pans, are placed into this heated water, which then transfers heat to the food. This method maintains food at a safe serving temperature without direct contact with the heating elements, preventing scorching.

This unit has a capacity for 5 GN 1/1 containers. The well itself is constructed from stainless steel and measures 18 cm deep. A drain cock is fitted to the well for ease of emptying. The buffet includes a fixed Plexiglas sneezeguard to protect the food. It also features front and back wood dish-holders.

Temperature control is managed by a mechanical thermostat, which is accompanied by an indicator light to show when the heating elements are active. The buffet is equipped with upper neon lighting to illuminate the displayed food. For mobility, two castors, each with a diameter of 125 mm, are fitted, and both include brakes.

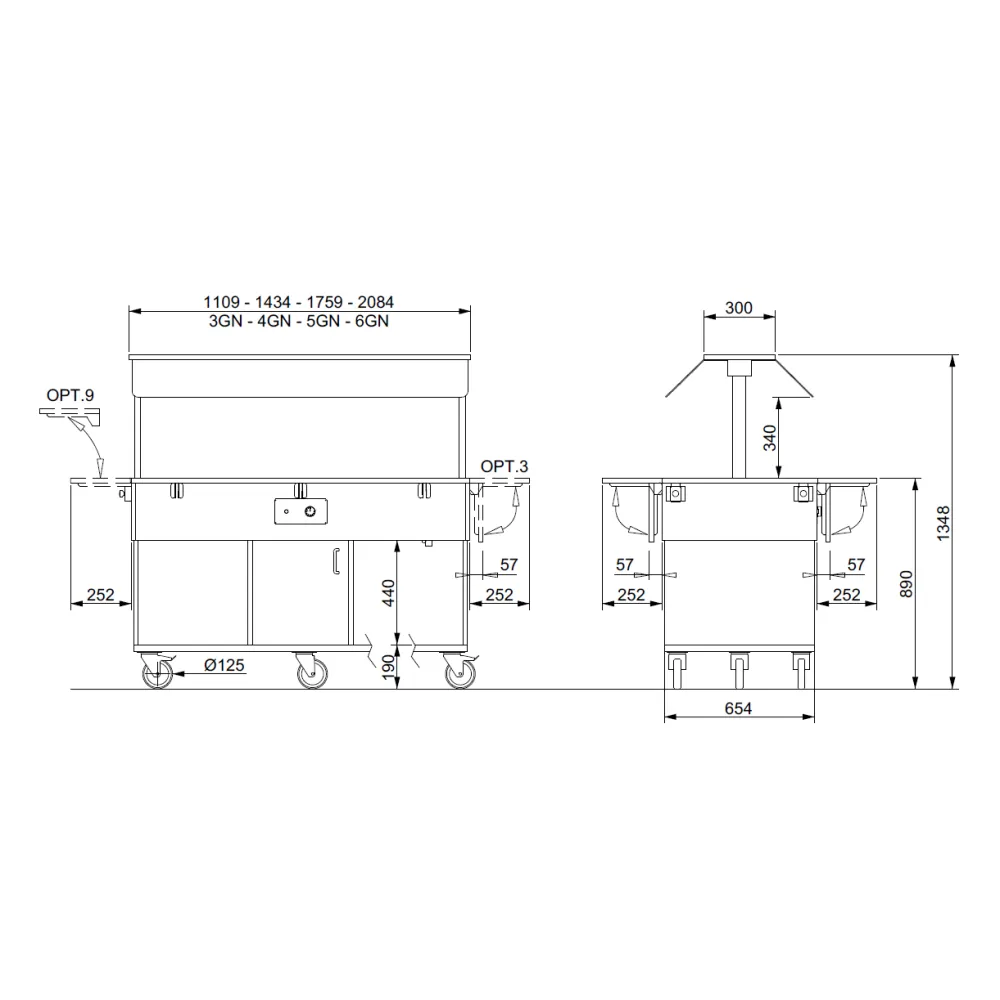

The power rating of this appliance is 3.02 kW, operating on a 230 V supply. The temperature can be adjusted between a minimum of 0 °C and a maximum of 90 °C. The overall dimensions are 1759 mm in length, 654 mm in width, and 1348 mm in height. The unit weighs 200 kg. It is fitted with an industrial plug.

Cleaning of the stainless steel well can be facilitated by the fitted drain cock. The catalogue places this item under the name HEKO within the canteen self-service display cases category.
