Technical data
| Attributes | |
| ARTICLE | 01000ATH3FBMW |
| POWER | 2.263 kW |

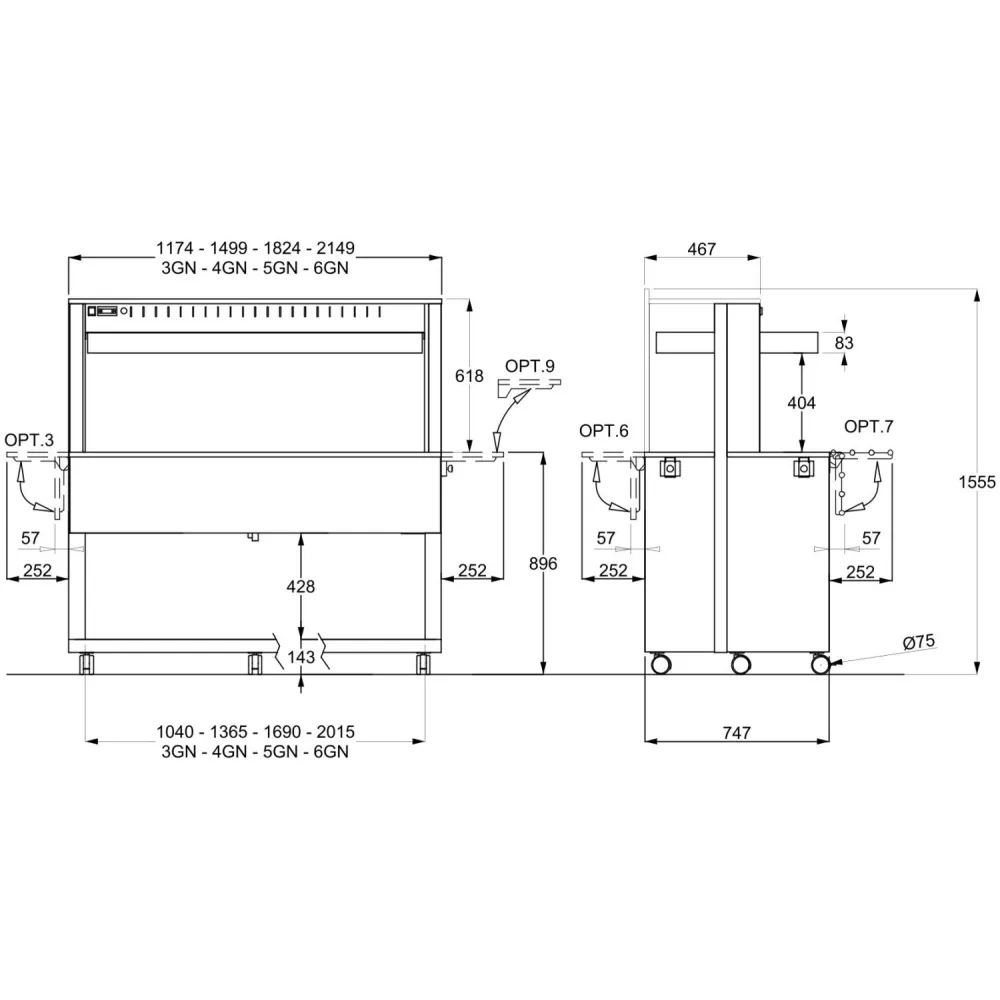

| SIZE L/W/H | 1174/747/1515 mm |
| VOLTAGE | 230V |
| WEIGHT | 123 kg |
| TEMPERATURE MODE | 0°/+90° |
| SIZE | Packing size : 135 / 92 / 185h mm |
| COLOR | You can customize and choose from a variety of colors for the finishing (You can see it in the photos) : SILVER / ROSE / SAFFRON / LIME / SKY / OCEAN / IVY / SAGE / CAPPUCCINO / CLAY / GREY / NIAGARA / VEINED WHITE / WHITE SAND / BIRCH / GREY FOG / ELM / WALNUT / WENGE / ANTHRACITE / VENED BLACK |
| CAPACITY | 3 GN1/1 |
| Additional equipment | It is possible to modify the most convenient option specifically for your needs, with additional options (additional cost) : 3 - Laminated wood folding dish-holder on short side 3-SST - Foldable dish holder short side - stainless steel 3-TUB - Tube stainless steel dishholder on short side 3/FO - Foldable dish holder (short side) - formica 4 - Full lower closure w/doors 5 - Removable display grid 6 - Wooden folding dishholder 6/FO - Foldable dish holder - Formica 7 - Folding S/steel tube trayholder 8 - Foldable tray slide 9-A - Removable long tray slide on short side in laminated wood 9-TUBA - Removable long tray slide on short side in stainless steel tube 9-SSTA - Removable long tray slide on short side in stainless steel 9A/FO - Removable long tray slide for self-service island - Formica 9-C - Removable tray slide on short side in laminated wood, for wall leaning 9-C-TUBA - Removable tray slide on short side in stainless steel tube, for wall leaning 9C-SSTA - Removable tray slide on short side in stainless steel, for wall leaning 9C/FO - Removable tray slide on short side, for wall leaning buffets - Formica 10 - Reinforced 125mm diam steel castors, 2 with brake 14/C - Intermediate floor, compartment mod. neutral and warm 15-C/LAM - Niche for heated modules - Laminated wood 15-C/FO - Niche for heated modules - Formica 16/LAM - Upper shelf top with increased depth and rear containing edge - Laminated wood 16/FO - Upper shelf top with increased depth and rear containing edge - Formica 17 - Intermediate custom module 17CH - Custom head module PZ - feet Z - Aluminium coated PVC feet skirting ADS - Customized adhesive sticker UK - Surcharge for UK plug 45CUT - 45° cut for optional 6/7/8 DIST/G - Stainless steel dividers GN 1/1 DIST/M - Stainless steel dividers GN 1/2 |
LED lighting and two polyamide wheels with brakes as standard.
Using a bain marie well, it circulates warm water or steam to deliver consistent, gentle heat, preventing hot spots and preserving food quality. A thermostat allows precise temperature control from near-freezing to serving warmth, accommodating both chilled and hot dishes without needing separate appliances.
To use, fill the bain marie well with water to the indicated level. Place GN 1/1 gastronorm pans, available separately, into the three wells. Set the thermostat between 0° and +90° and switch on the unit. LED lighting illuminates the dishes, while a fixed plexiglass sneezeguard protects food from contaminants. Two polyamide wheels with brakes enable easy positioning and stability. The laminated wood structure, featuring a rear mirror, enhances visual depth, and an extended upper shelf offers extra display space.

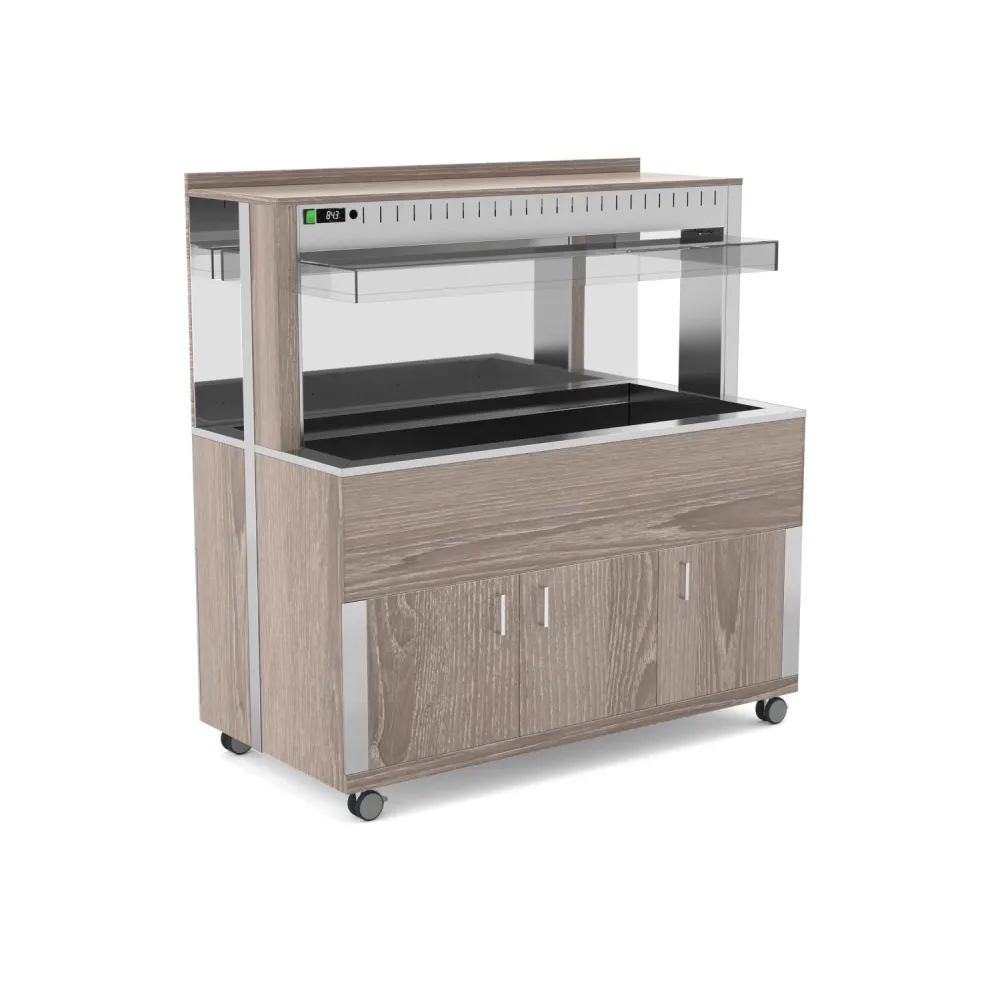

Built with a durable laminated wood frame and a rear mirror, the buffet includes a heated bain marie well controlled by a thermostat. Standard features are LED lighting and two polyamide wheels with brakes. The unit measures 1174 mm wide, 747 mm deep, and 1515 mm high, with a packed size of 135 by 92 by 185h mm. It weighs 123 kg, requiring two people for safe movement. Powered by a 2.263 kW single-phase 230 V supply, it suits standard commercial kitchen circuits.
Modular accessories allow customisation for various service needs. Options include foldable dish holders, removable tray slides, and stainless steel dividers for the short sides. Intermediate floors and custom niches can house heated modules or extra storage. The upper shelf is available in laminated wood or Formica, and the unit can be finished in one of twenty-four colours, such as silver, saffron, anthracite, or walnut. Additional customisation includes optional castors, feet, and adhesive skirting.
Maintenance is simple: drain and wipe the bain marie well after each use, and clean laminated wood surfaces with a damp cloth. The plexiglass sneezeguard can be removed for thorough cleaning, while LED lighting should be wiped with a dry cloth to retain brightness. GN pans and lids are cleaned separately in a commercial dishwasher.
