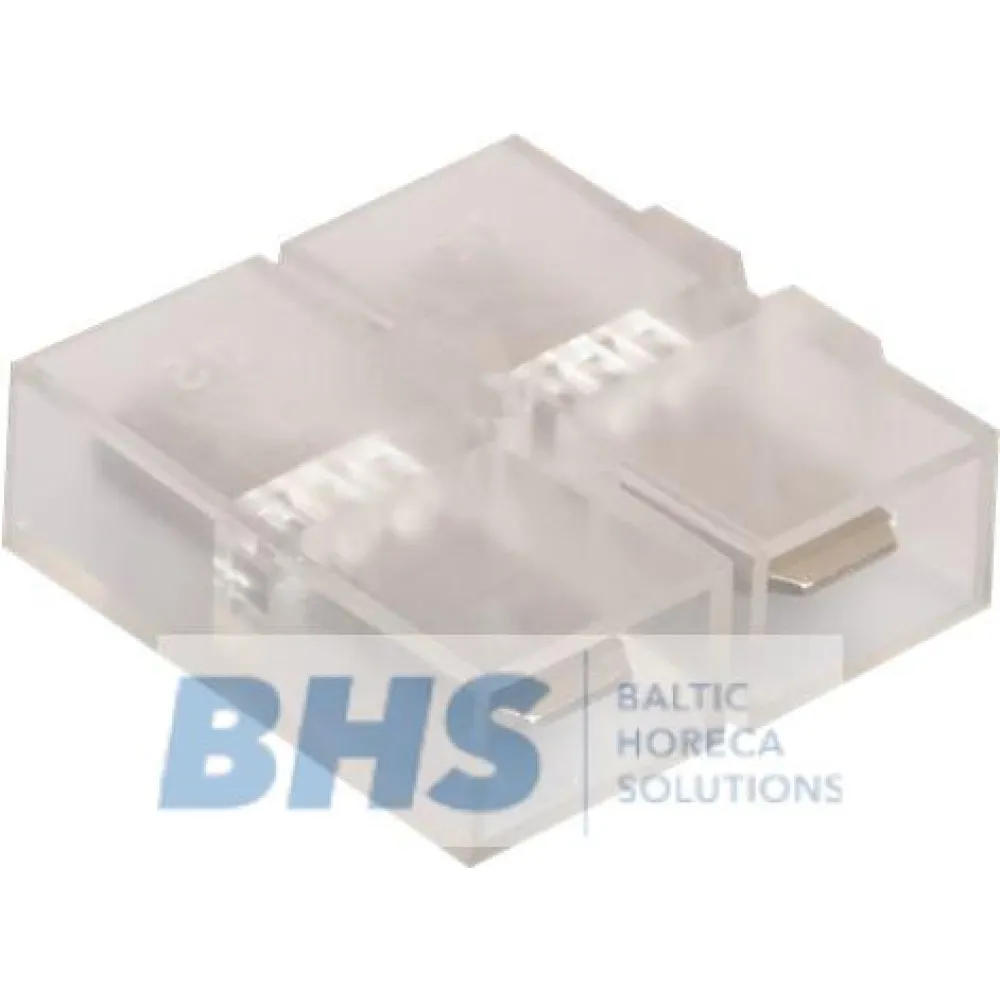

Sealed spade connector LF 7117803

A sealed spade connector provides a secure, moisture-resistant electrical connection between wiring and components in commercial icemakers. Two flat metal terminals slide onto corresponding spade lugs inside the appliance, completing the circuit that powers the compressor, water pump or control board. The seal prevents water ingress, which is critical in environments where condensation and splashes are constant. Without a sealed connection, corrosion or short circuits can interrupt ice production and damage the machine.

To fit the connector, the operator first isolates the appliance from the mains supply. The old connector is removed by gently pulling it from the spade lugs. The new LF connector is aligned with the lugs and pressed firmly into place until it clicks. The seal should sit flush against the appliance housing, ensuring no gaps. Once secured, the appliance is reconnected to the power supply and tested for correct operation.

The LF sealed spade connector is constructed with insulated terminals to prevent accidental contact. The seal is made from a flexible, water-resistant material that withstands the temperature fluctuations typical in icemaker operation. This design ensures consistent electrical flow even in humid or wet conditions, maintaining the reliability of the ice production cycle.

This connector is compatible with a range of ITV icemakers, including models MQ200, Q130C, Q150C, Q20C, Q30C, Q40C, Q40S, Q50, Q50C, Q60, Q60C, Q90, Q90C, and various Quasar series units. It is a direct replacement for the original part, ensuring seamless integration without modification.

Cleaning is minimal due to the sealed design, but the connector should be inspected periodically for signs of wear or damage. If the seal becomes cracked or the terminals show corrosion, the connector should be replaced to maintain safe and efficient operation.

The product is categorised under electrical components for commercial refrigeration and icemakers.
