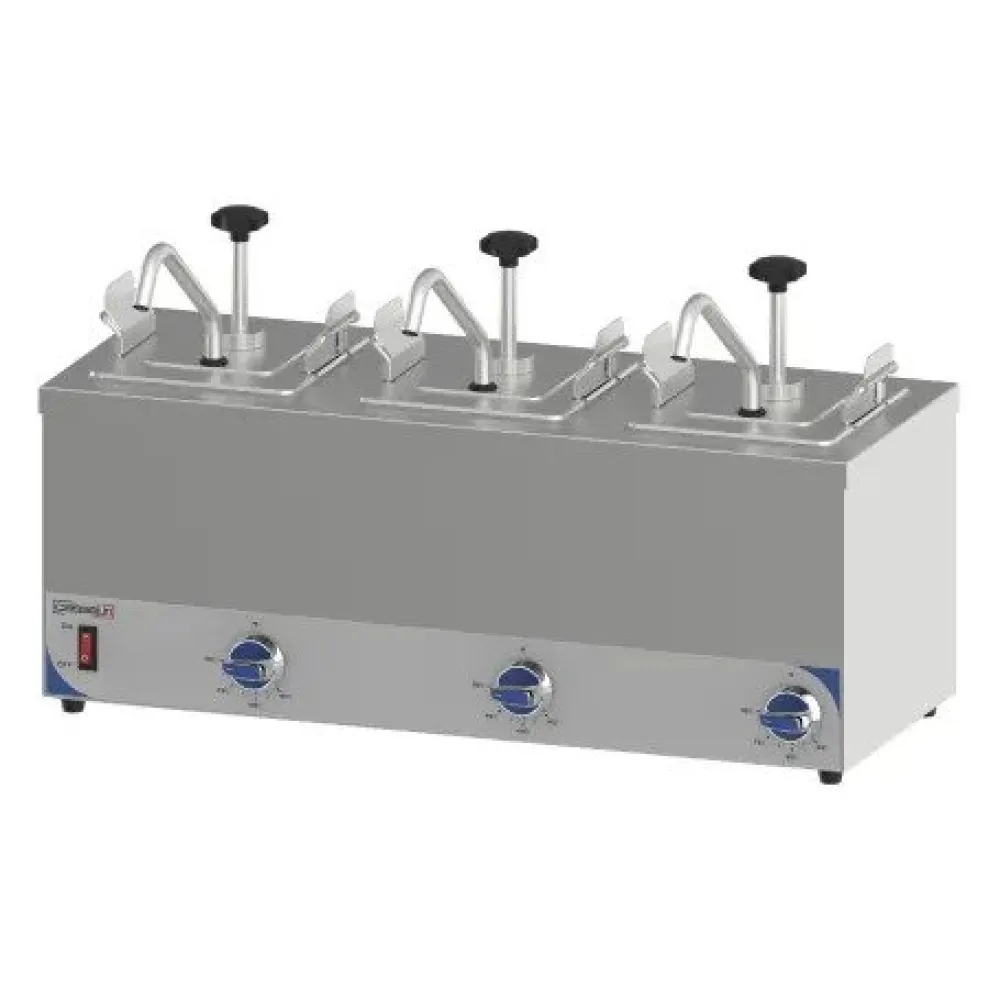

Sauce Dispenser Casselin CPSC3

This Casselin CPSC3 is a pump dispenser designed for professional use. It features a stainless steel body and a stainless steel pump mechanism.

The operating principle of this type of dispenser involves dry heating to maintain the temperature of the contents. An adjustable thermostat allows the user to set the desired temperature within a range of 40 °C to 70 °C. A safety thermostat is also included for added protection.

The dispenser is configured to hold three Gastronorm 1/6 containers, each with a depth of 200 mm. The total volume for each container is 2.8 L. Each operation of the pump dispenses a portion of 20 mL.

Construction is from stainless steel for both the body and the pump. The unit measures 618 mm in length, 280 mm in width, and 330 mm in height. Its weight is 9.7 kg.

The controls consist of an adjustable thermostat to set the operating temperature and a safety thermostat. The power rating is 200 W, operating at 230 V.

The dimensions indicate the footprint of the unit on a work surface.

Cleaning should focus on the stainless steel surfaces and the pump mechanism, following standard catering hygiene practices.

This model is listed in the catalogue under dispensers, organisers, and sauce dispensers.
