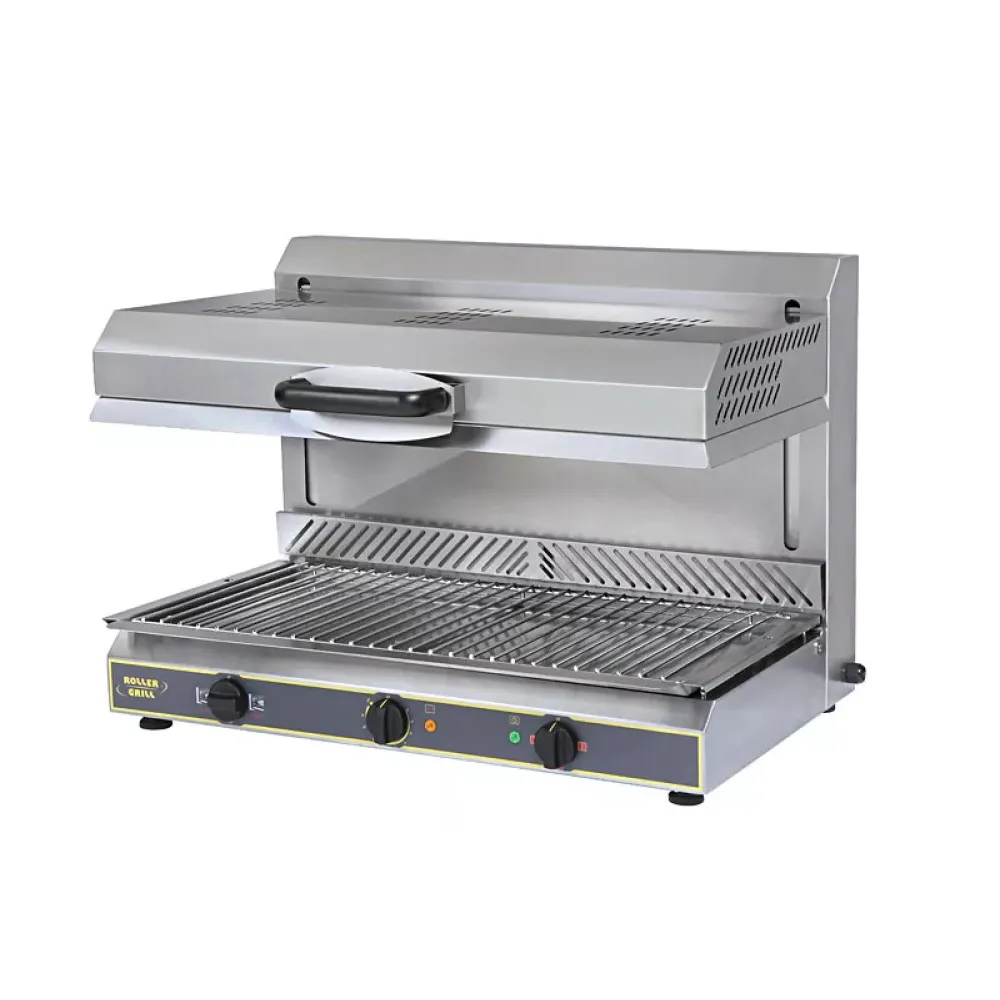

Salamander grill Roller-grill SEM800PDS

The Roller-grill SEM800PDS is an electric salamander toaster designed for professional kitchens.

This appliance operates using a ceramic plate located in the upper section. The heating principle involves the ceramic plate activating when it senses contact with a dish placed on the stainless steel bar above the grid. This plate detection system (PDS) means the ceramic heating area automatically turns off when the dish is removed, conserving energy. The unit can also be operated conventionally without engaging the dish detection feature.

The sequence of use typically involves placing food on the grid. The movable top, equipped with a counterweight and ball-bearing system for smooth operation, can be adjusted for height. When a dish is placed on the grid, the ceramic plate above heats up. The commutator allows for independent control over the 3 heating zones, and a 4-position switch works in conjunction with the power control system to regulate the heating output of the vitroceramic areas. Once cooking is complete, the dish is removed, and the heating elements deactivate if the PDS is engaged.

Construction includes a ceramic plate with 3 heating areas. The stainless steel detection bar, the grid, and the lower tray are removable for ease of cleaning. The overall dimensions are 800 mm in length, 640 mm in width, and 590 mm in height. The internal dimensions available for cooking are 740x375 mm. The unit weighs 60 kg. It operates at a maximum temperature of 570 °C and requires a 380 V electrical supply, with a power rating of 4.5 kW.

Cleaning involves removing the stainless steel detection bar, grid, and lower tray. The controls include a 4-position switch and a power control system for regulating the heating output across the vitroceramic areas.

The catalogue places this product under salamander grill applications.
