Salamander grill Neumarker L05-00719

A conveyor oven moves food on a continuous belt through a heated tunnel, eliminating the need to load and unload trays. Infrared quartz elements heat the product directly, transferring energy as radiant heat rather than warming the surrounding air. This method reaches full temperature instantly, so the oven can begin baking the moment it is switched on. The radiant heat penetrates the surface evenly, browning and cooking items at a steady rate while the belt carries them from inlet to outlet.

The operator sets the belt speed to control how long each item spends inside the tunnel. Slower speeds extend the baking time for thicker or denser products, while faster speeds suit items that need only a brief heat treatment. Two power levels for the top elements allow further adjustment: full power for rapid colour and crust, or half power to moderate the intensity without changing the belt speed. Height-adjustable reflectors above the inlet and outlet keep the heat inside the tunnel, reducing energy loss and maintaining a consistent temperature along the entire path.

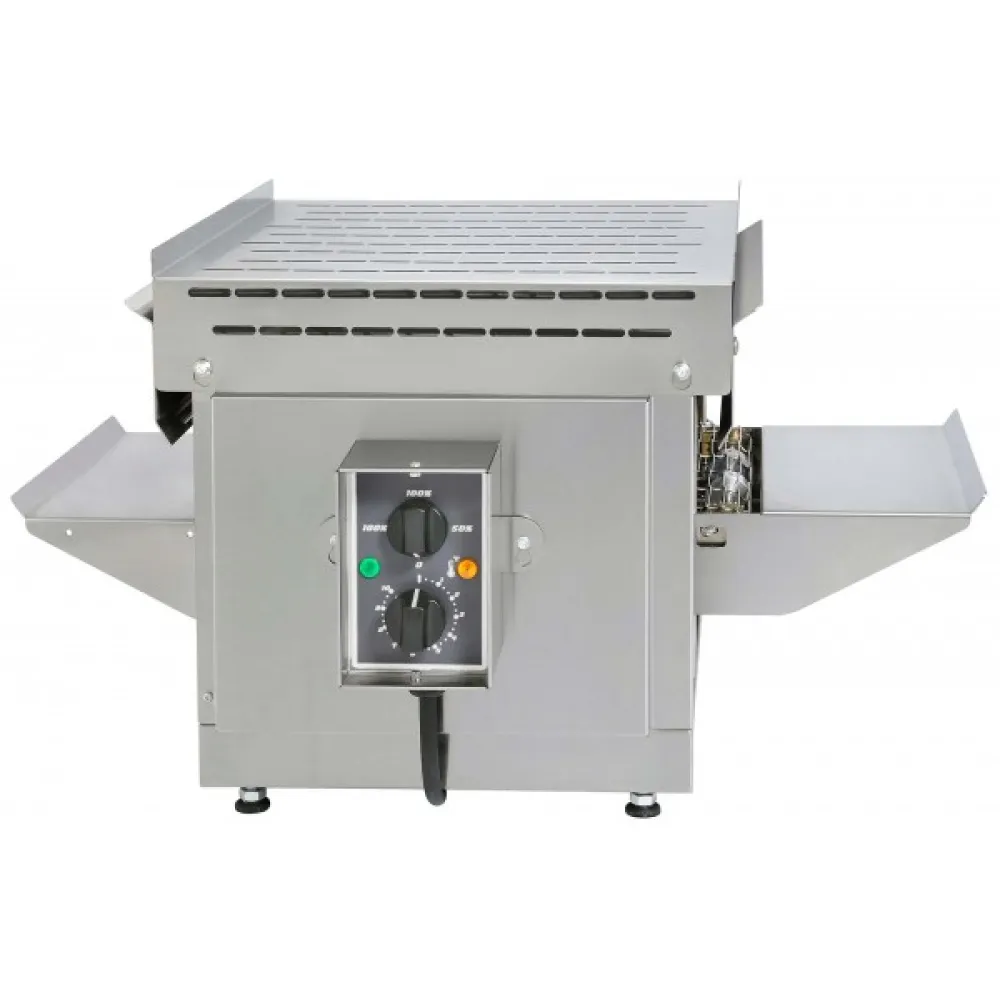

To start, the operator selects the belt speed and power level, then switches the oven on. The pilot light confirms the unit is live. Food is placed on the moving belt at the inlet and emerges cooked at the outlet. The continuous motion means the next item can be loaded as soon as the previous one clears the inlet, allowing a steady flow without pauses.

The casing is stainless steel, chosen for its resistance to heat, moisture and cleaning chemicals. The infrared quartz elements are sealed behind protective panels, while the reflectors are positioned above the belt path and can be set between 70 mm and 110 mm to suit different product heights.

The 3 kW power rating indicates the load the oven places on the electrical circuit. A 230 V supply matches the standard single-phase outlets found in most professional kitchens. The 22 kg weight allows the unit to be moved by two people or a small trolley, while the 470 mm depth, 720 mm width and 385 mm height define the footprint on the worktop or counter.

Cleaning involves wiping the stainless steel casing with a damp cloth and mild detergent. The belt can be removed for thorough cleaning, and the reflectors should be checked periodically to ensure they are free of debris that could block the infrared heat. The quartz elements themselves require no maintenance beyond occasional inspection for damage.

The L05-00719 is a single-chamber conveyor oven without additional variants or accessories listed.
