Refrigerator Arktic 233153

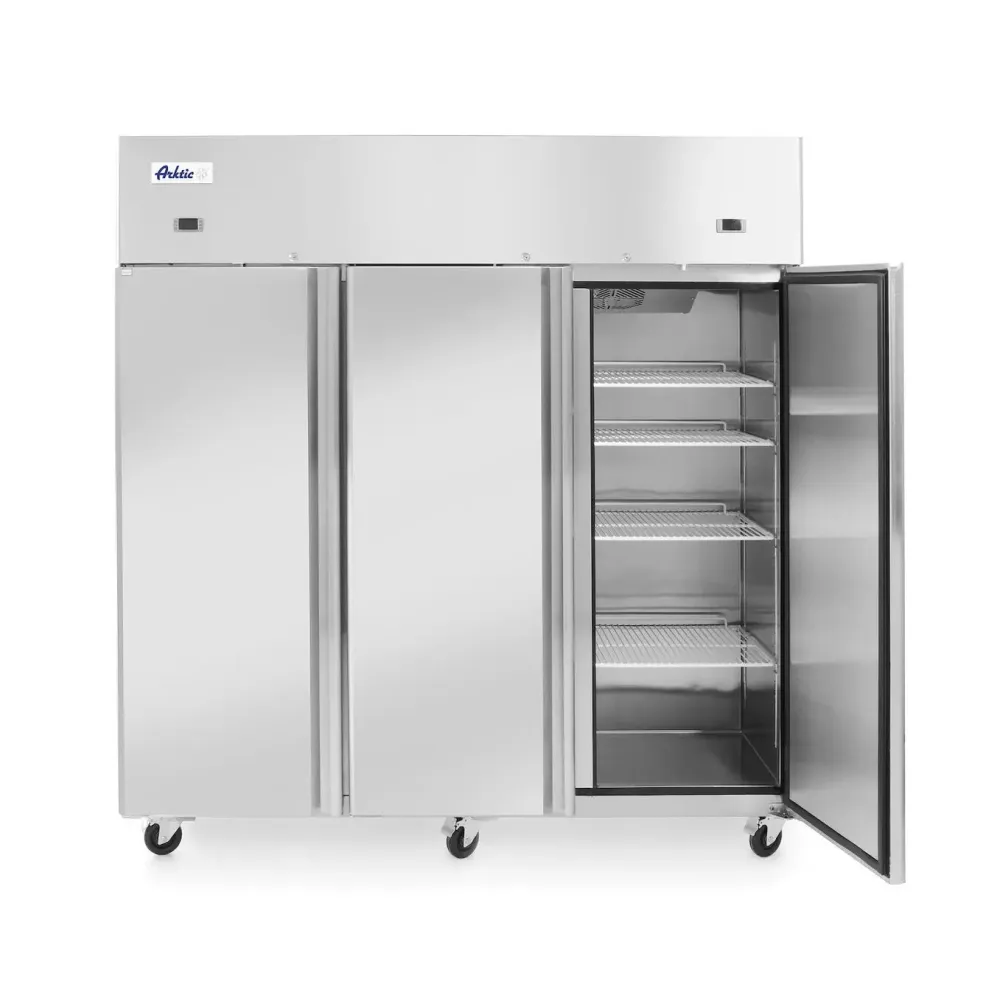

This Arktic 3-door refrigerator with freezer, article 233153, offers a combined capacity of 890 litres for refrigeration and 420 litres for freezing.

The operating principle of this type of appliance involves maintaining a controlled internal temperature to preserve food. Refrigeration units extract heat from the interior, while freezers extract heat to a greater extent, lowering the temperature below freezing point. This unit uses R134a refrigerant in both its refrigerator (330 g) and freezer (390 g) compartments to achieve these temperature ranges.

The sequence of use involves loading food into the appropriate chilled or frozen chambers. The electronic thermostat, visible on the digital display, allows for setting and monitoring the internal temperatures. The refrigerator compartment operates between -2 °C and 8 °C. The doors are self-closing to help maintain the set temperatures. The unit is equipped with 4 wheels, two of which have brakes, for manoeuvrability.

Construction features include a stainless steel body and camera, with the rear outer wall made of galvanised steel. The insulation thickness is 50 mm. The unit has a climate class of 4, designed to operate effectively in ambient temperatures up to 38 °C.

Controls consist of a digital display and an electronic thermostat for temperature management. Automatic condensate drainage is incorporated.

Specifications include a power rating of 1.15 kW, requiring a 230 V supply. It has 6 shelves in total, with 3 shelves in each chamber. The refrigerator chamber dimensions are 1100x540x1380 mm, and the freezer chamber dimensions are 525x540x1380 mm. The overall external dimensions are 1800 mm in length, 740 mm in width, and 1950 mm in height. The unit weighs 180 kg. Each shelf has a permissible load of approximately 40 kg. The average daily energy consumption is 12 kW.

Cleaning and upkeep would involve maintaining the stainless steel and galvanised steel surfaces. The automatic condensate drainage system requires no direct user intervention for its primary function.

This appliance is listed in the catalogue for kitchen refrigerator applications.
