Refrigerated module ROCAM 01900OM5RV/E

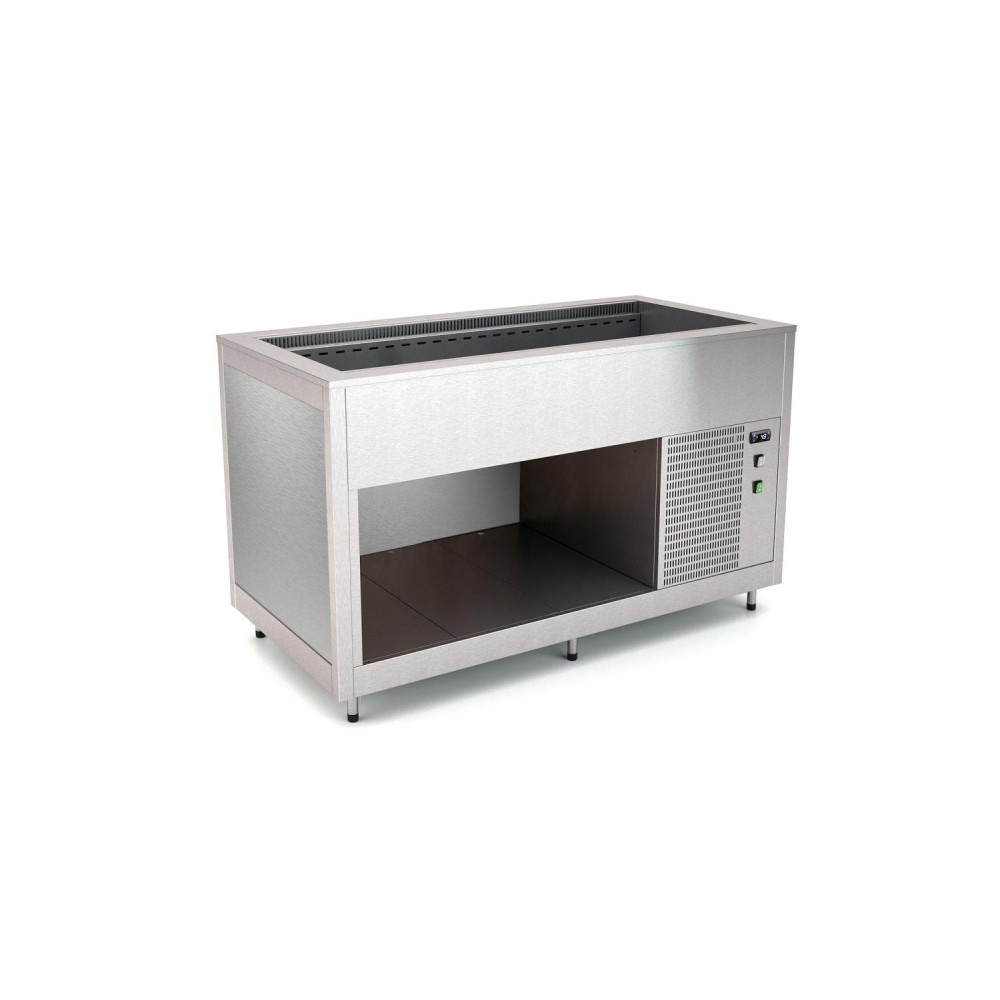

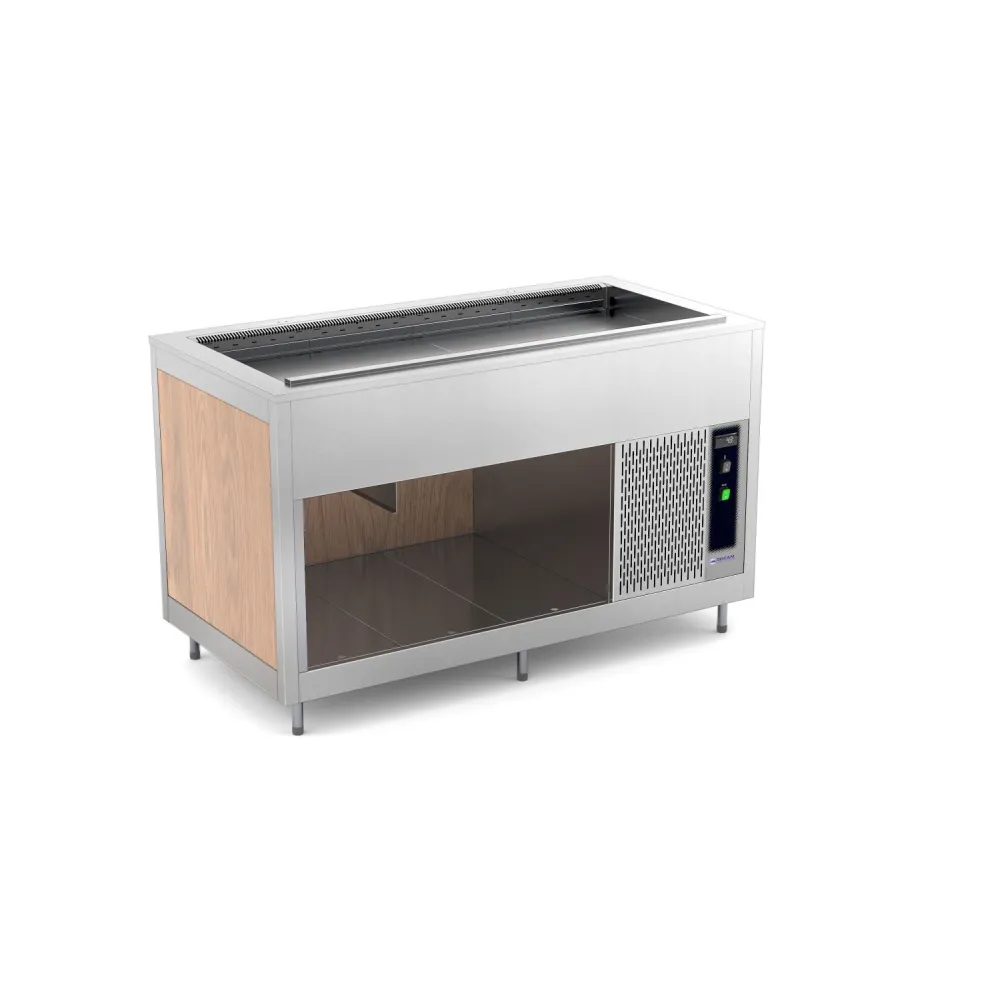

The ROCAM OMNIA 5RV-E is a fan-assisted cold buffet, article number 01900OM5RV/E. This appliance is designed to keep food chilled using a refrigeration system.

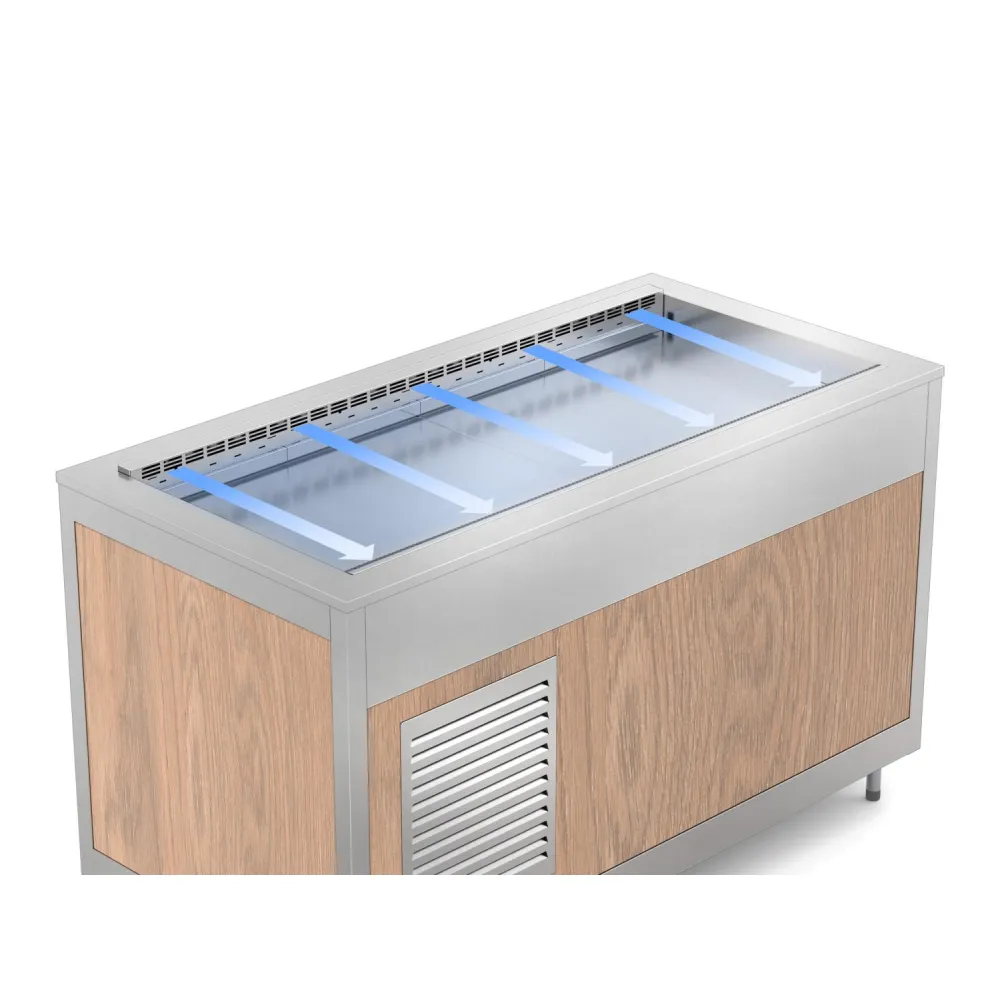

Fan-assisted refrigeration works by circulating cold air throughout the unit. An evaporator coil cools the air, and a fan then distributes this chilled air around the food stored within the buffet's well. This method provides a consistent and even temperature, preventing warm spots and maintaining food safety. The system uses a compressor unit with R290 gas and includes a pre-programmed defrost system to manage ice build-up on the evaporator.

To operate, food is placed in the stainless steel well, which has rounded edges and a drain cock for easy emptying. The temperature within the well is controlled via a digital thermostat, allowing the user to set the desired cooling level between 2 °C and 10 °C.

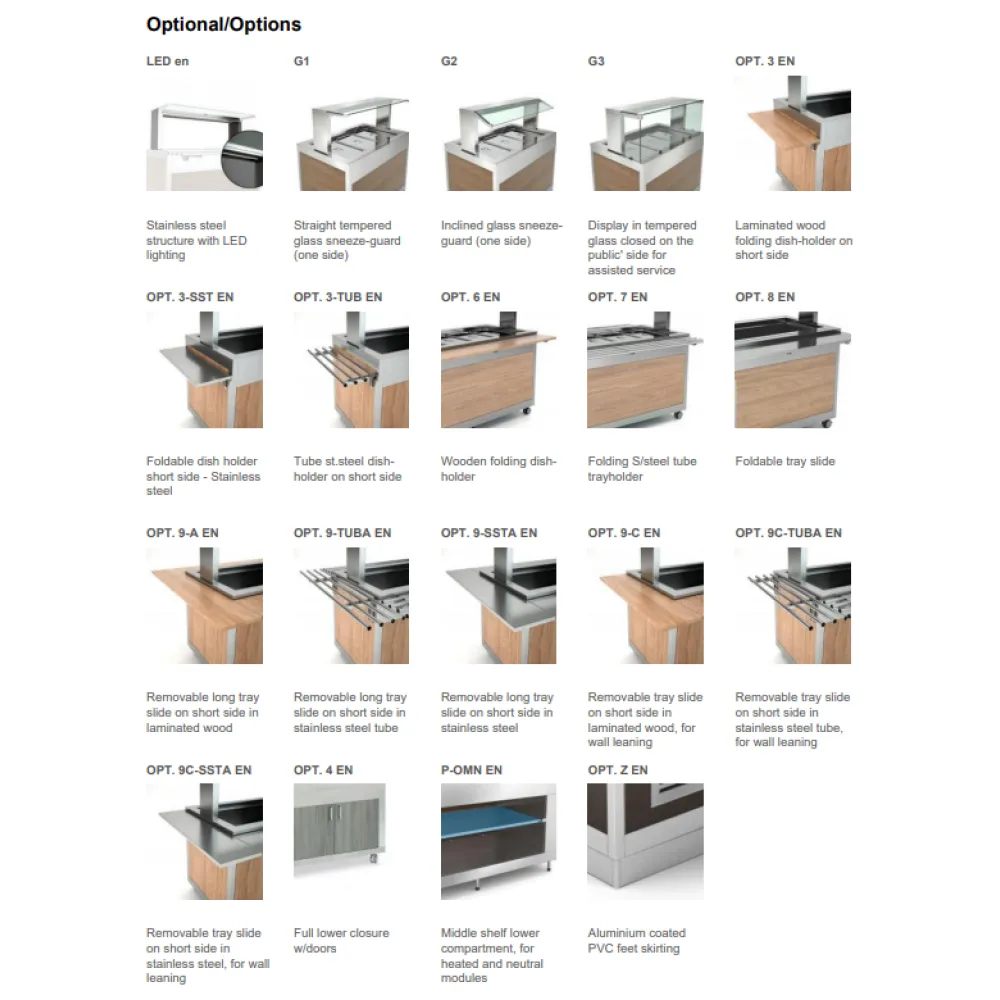

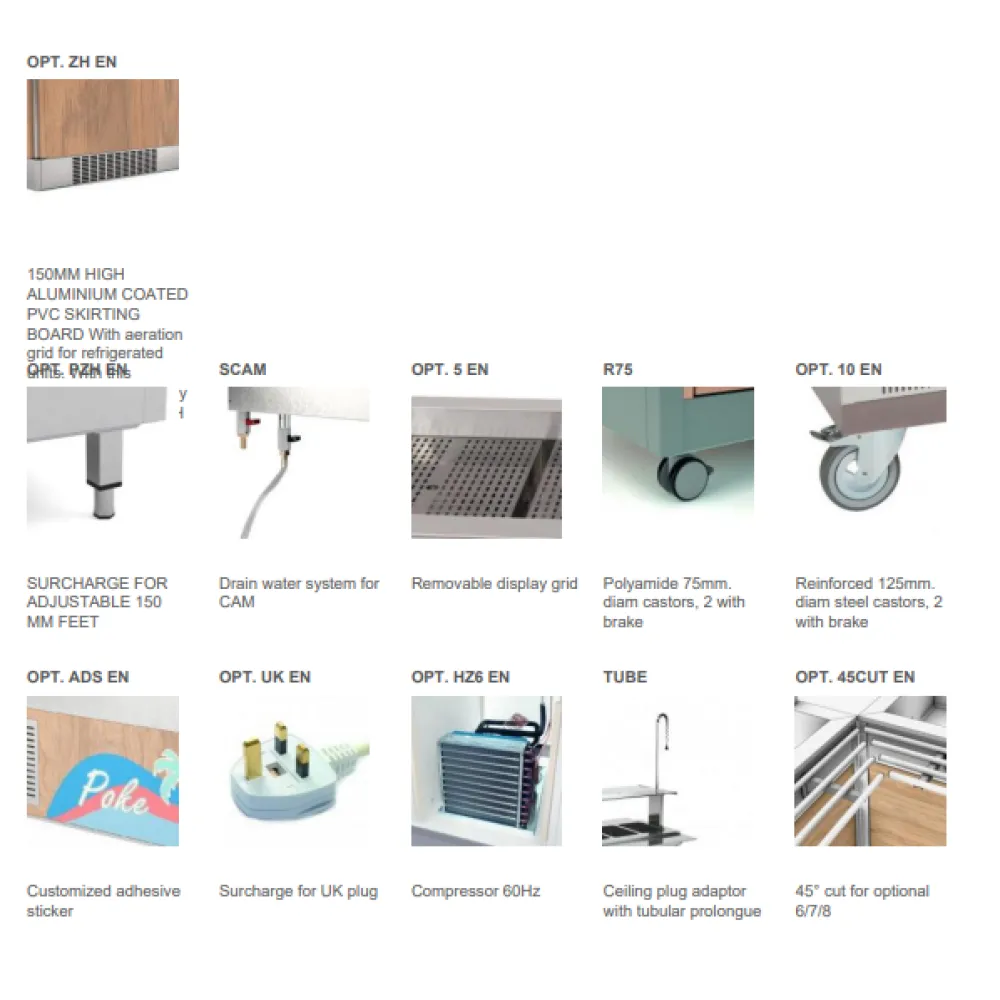

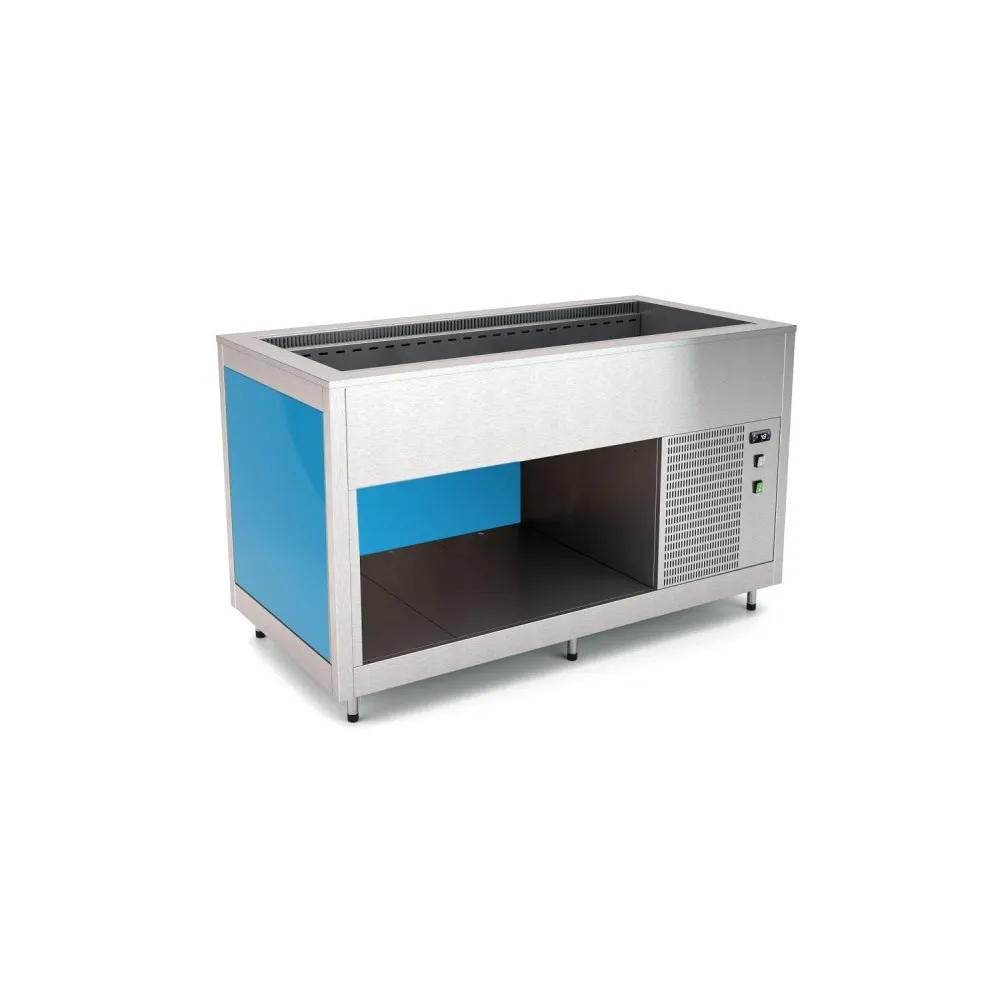

The construction is primarily stainless steel. It features adjustable feet, which can be concealed by a skirting board. Options for customisation include different types of lighting, a sneezeguard, and tray holders, which can be fitted to each module. Available panelling finishes include standard wood, overcoating (SPP), stainless steel (SST), or powder coating (CST).

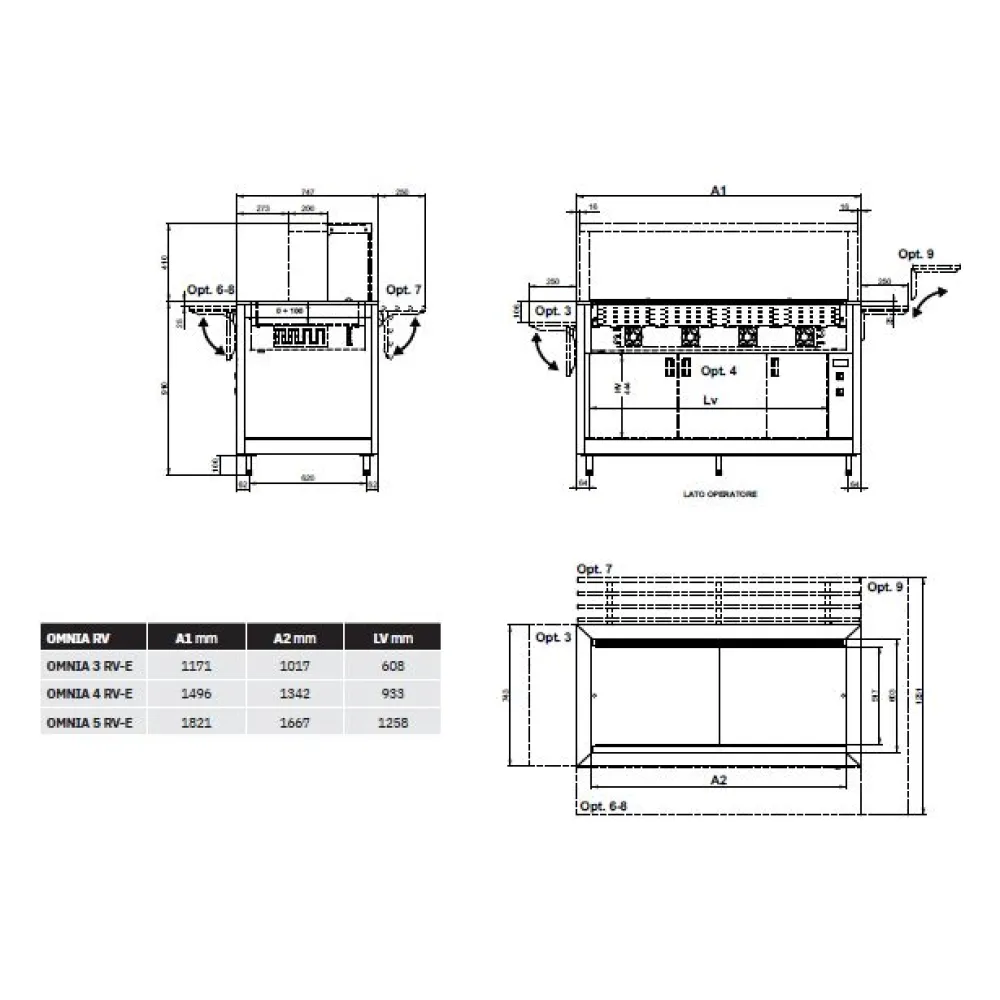

The power consumption is rated at 0.367 kW, operating on a 230 V supply. Its dimensions are 1821 mm in length, 747 mm in width, and 910 mm in height, with a total weight of 120 kg. The 0.367 kW power rating indicates the electrical load the unit will draw when in operation. The temperature range of 2 °C to 10 °C defines the operational parameters for chilling food. The weight of 120 kg suggests the unit is substantial and requires careful placement. The footprint, defined by its length and width (1821 mm x 747 mm), indicates the floor space needed for installation.

Cleaning involves the stainless steel well, which features a drain cock. The unit is listed in the catalogue under OMNIA cold modules.
