Technical data
| Attributes | |
| ARTICLE | 03800GEMM60IN |
| POWER | 0.7 kW |

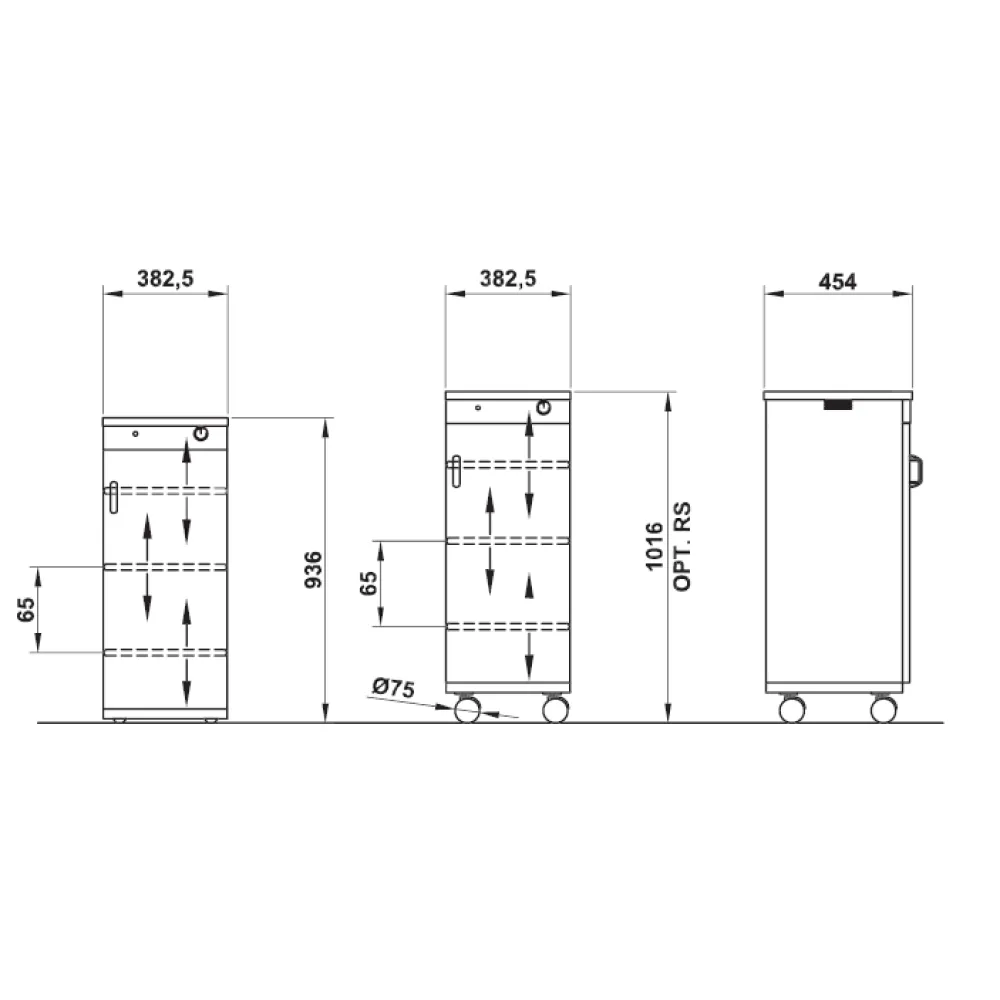

| SIZE L/W/H | 382.5 / 454/ 936 mm ( with option RS (h) 1016 mm ) |
| VOLTAGE | 230 V |
| WEIGHT | 28 kg |
| SIZE | Packing size : 120 / 80 / 110 mm |
| Finishing | Stainless steel |
| CAPACITY | 60 plates x Ø max 32 cm |
| Additional equipment | It is possible to modify the most convenient option specifically for your needs, with additional options (additional cost) : UK - type g plug RS - 4 castors, 2 with brake KIT GR - additional grid - chromed wire steel with 4 grid supporters |
Temperature controlled by mechanical thermostat (+30°/+90°C) with indicator light.

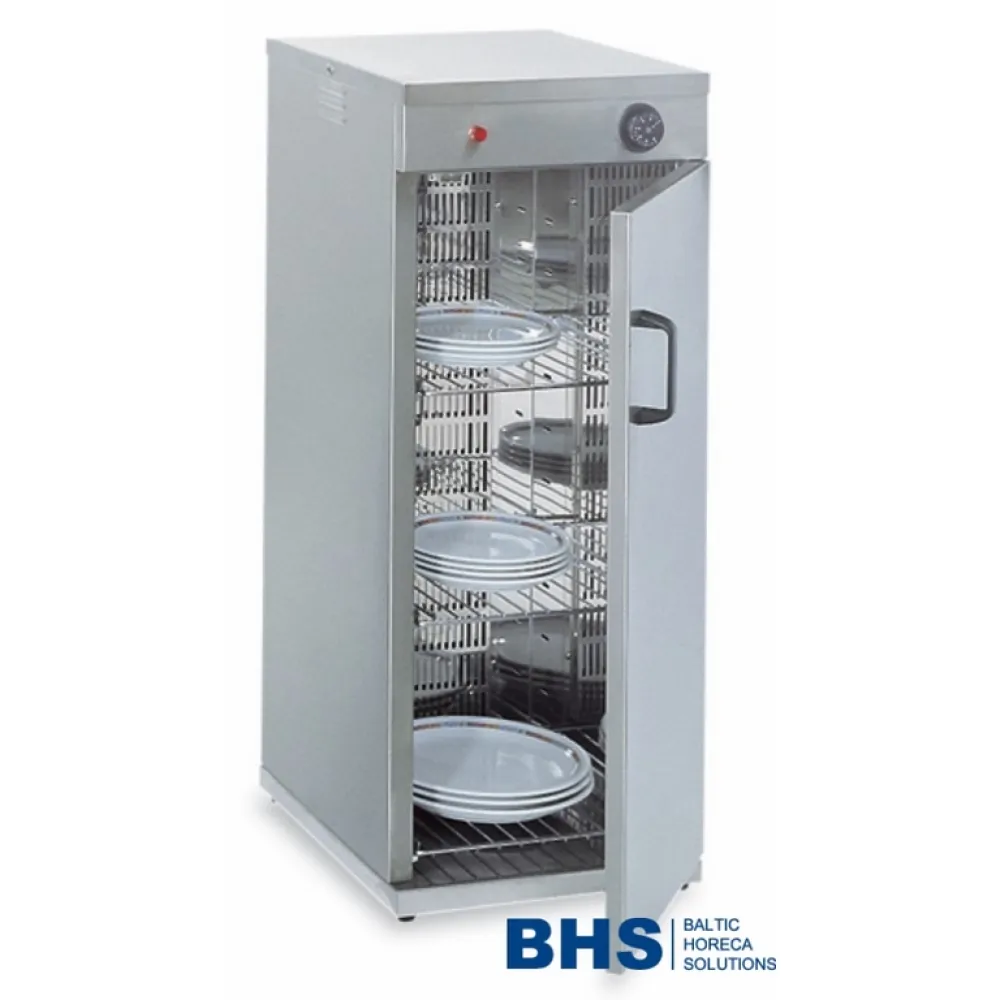

A dry-heat food and dish warmer cabinet keeps plated meals or stacked crockery at serving temperature without steam or condensation. A concealed heating element inside the insulated cavity radiates warmth evenly across every shelf, while a mechanical thermostat cycles the power to hold the set point between 30 °C and 90 °C. The double-walled construction traps heat inside, reducing energy draw and keeping the outer skin cool enough to touch safely during service.
Load the adjustable chromed-wire grids with up to sixty plates of 32 cm diameter or an equivalent volume of serving dishes. Set the thermostat dial to the desired temperature; a pilot light confirms the element is active. Once the cabinet reaches the set point, the light extinguishes and the unit maintains the temperature until switched off. The operator can open the door at any time to remove or add plates without interrupting the cycle.
The cabinet is built from AISI 304 stainless steel throughout, including the inner liner, outer panels and door. Four optional castors—two with brakes—raise the overall height to 1016 mm and allow the unit to be rolled between workstations or stored against a wall. An additional chromed-wire grid kit can be ordered to increase shelf capacity or to organise smaller items.
A 0.7 kW heating element draws power from a standard 230 V single-phase circuit, making it compatible with most professional kitchen ring mains. The 28 kg weight allows two staff to lift the cabinet onto a worktop or into a delivery vehicle without mechanical aid. The footprint of 382.5 mm wide by 454 mm deep fits between standard worktop units or under a pass-through shelf.
Cleaning involves wiping the stainless-steel interior and exterior with a damp cloth and mild detergent after each service. The adjustable grids lift out for separate washing in a sink or dishwasher. The heating element and thermostat require no routine maintenance beyond checking that the pilot light operates correctly.
Optional extras include a UK-type G plug, four castors (two with brakes) and an additional chromed-wire grid with four support brackets.
