Neutral module ROCAM 01900OMCRN90S

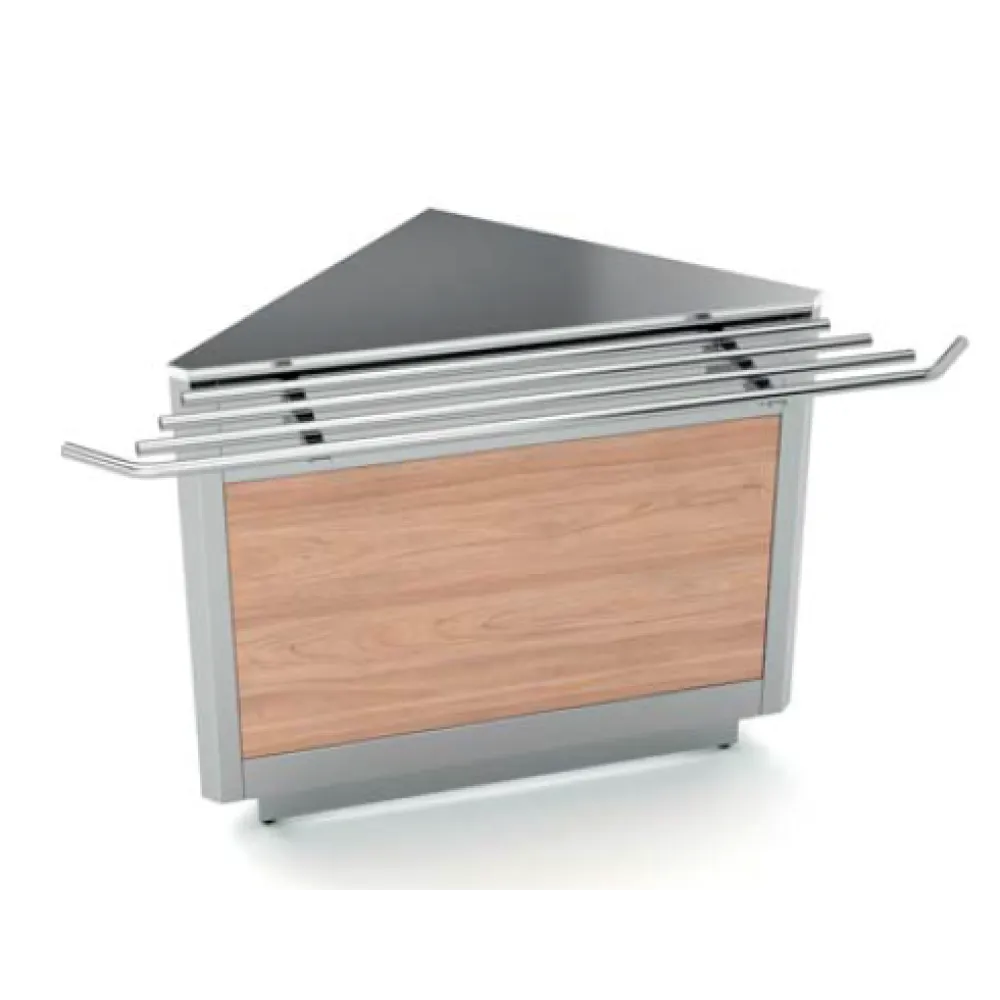

This 90° corner module connects straight sections of ROCAM OMNIA self-service counters, forming a continuous line that adapts to your floor space.

The unit features a robust stainless steel frame that supports the worktop, panels, and any equipment placed on it. Adjustable feet allow for levelling on uneven floors and can be concealed with a plinth for a seamless appearance. Castors are not compatible with the standard A90S module, ensuring stability once positioned.

Panels attach to the frame to create the visible sides of the corner. Four finishes are available: laminated wood, stainless steel, powder-coated steel, and over-panelled laminated wood. Laminated panels come in a range of colours, from neutral tones to vibrant shades, allowing the corner to blend or stand out within the line.

The worktop inside the corner matches the width of straight modules, ensuring trays, hot wells, or refrigerated units sit flush with the rest of the line. Operators can use the same utensils and ingredients here as elsewhere, maintaining a consistent workflow. Customers pass the corner smoothly, and staff can reach across the worktop without obstruction.

No electrical or plumbing connections are needed for the basic module, making it easy to position anywhere. If integrated into a heated or refrigerated section, services are routed through adjacent straight modules, with the corner simply joining them.

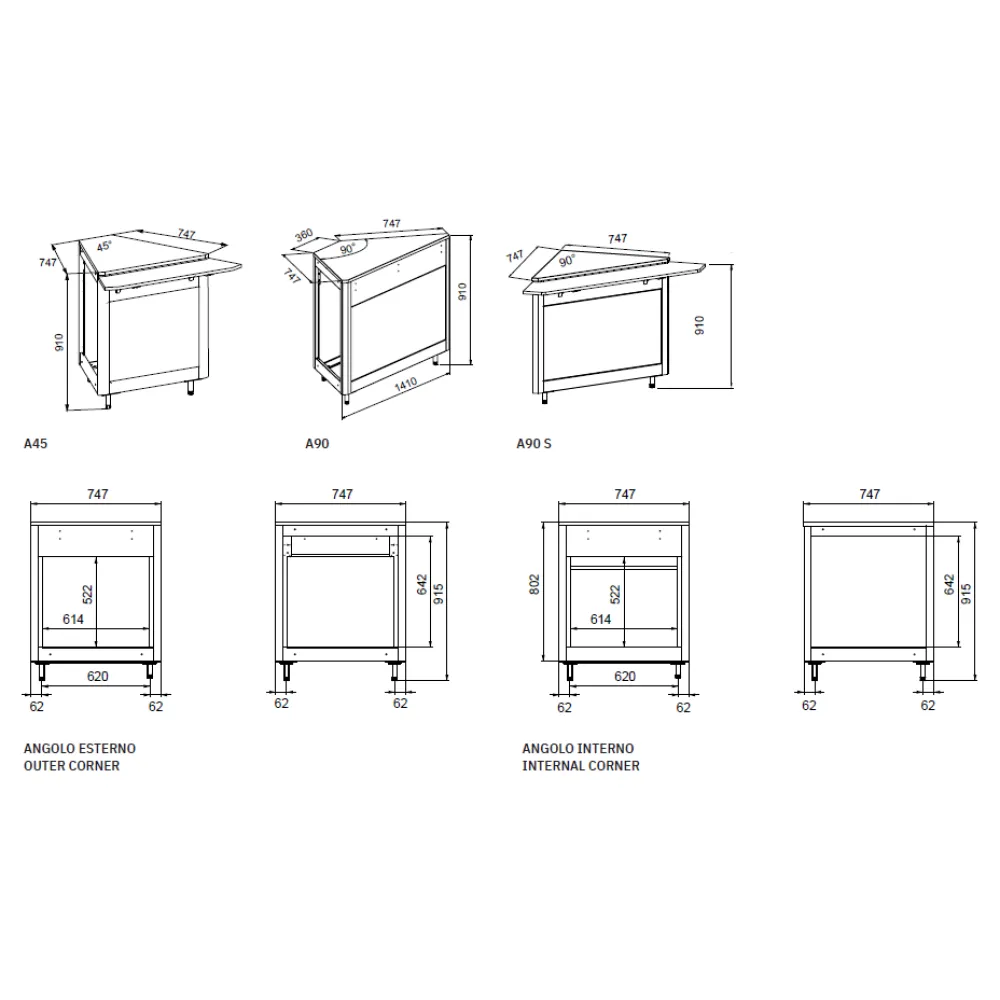

The module measures 1410 mm along the front edge and 747 mm along the side, fitting most kitchen layouts. Its height of 910 mm aligns with standard worktop levels, ensuring compatibility with existing counters, hobs, and sinks. The stainless steel structure supports heavy equipment without sagging, and adjustable feet accommodate uneven floors.

Cleaning is simple: panels unclip for access to the frame and surrounding areas. Laminated wood panels can be wiped with a damp cloth and mild detergent, while stainless steel and powder-coated panels are cleaned with standard kitchen sanitising solutions. The worktop and interior are maintained in the same way as the rest of the line, requiring no special procedures.

Designed exclusively for the ROCAM OMNIA range, this module connects only to other OMNIA units. Castors are not suitable except for the AQ version, which is a separate product.
