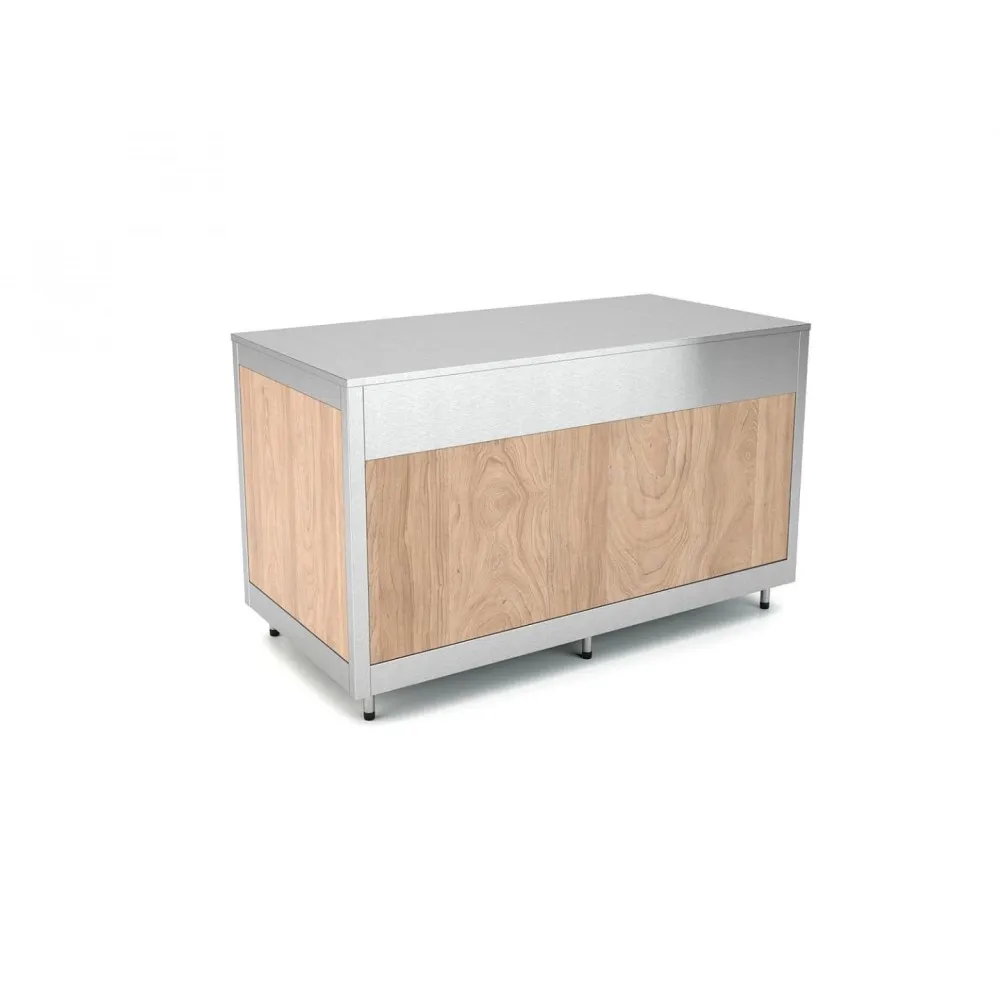

Neutral module ROCAM 01900OM3NSC

This ROCAM OMNIA 3N/SC is a neutral module designed with a heated lower compartment. Its primary function is to provide a controlled temperature environment within its lower section, suitable for holding food items at a specific warmth.

The operating principle involves a heating element located within the lower compartment, which raises and maintains the temperature of the air inside. This heated air circulates, keeping the contents of the GN containers warm. The module's neutral upper section does not actively heat or cool, serving as a holding or preparation space.

To use the module, GN1/1 containers are placed into the lower heated compartment. The temperature is set to maintain the desired warmth for the food. The upper section can be used for storing or preparing other items. The module can be integrated into a larger service counter setup or used as a standalone unit.

Constructed from stainless steel for both the structure and panelling, this module offers durability. The exterior panels can be specified in various finishes, including standard laminated wood, over-panelling (SPP), stainless steel (SST), and painted steel (CST), allowing for customisation to match existing decor. It is fitted with adjustable feet, which can be concealed by a plinth for a cleaner appearance.

The module has a capacity for 3 GN1/1 containers in its lower compartment. The power rating of 0.826 kW indicates the electrical load required for its operation. The overall dimensions are 1171 mm in length, 747 mm in width, and 910 mm in height, with a weight of 86 kg. These specifications define its footprint and handling requirements.

Cleaning involves maintaining the stainless steel surfaces and the interior of the heated compartment. The adjustable feet allow for levelling on uneven floors.

This module is part of the OMNIA series and can be combined with other OMNIA elements. Optional lighting, such as LED, HALO, or HALOLED, can be added, which may affect the overall power consumption.

It is listed in the catalogue under OMNIA > Neutral modules OMNIA.
