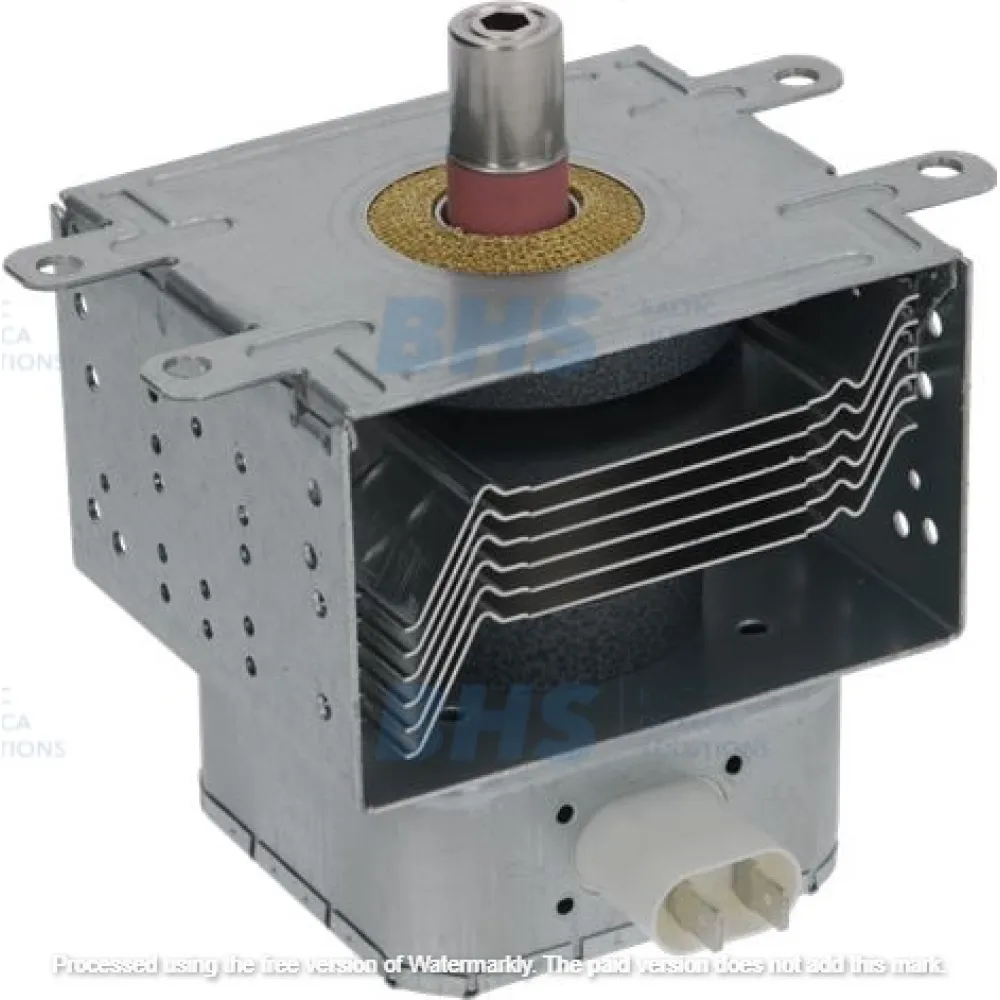

Magnetron LF L3239012

A magnetron generates the microwave energy that heats food in a commercial oven. Inside the magnetron, a heated filament emits electrons into a vacuum chamber surrounded by strong permanent magnets. The magnetic field forces the electrons into a circular path, creating a high-frequency alternating current. This current is then directed into the oven cavity through a waveguide, where the microwaves agitate water molecules in the food, producing heat evenly and quickly.

To install the LF Magnetron 2M244-M6, the operator first disconnects the oven from the power supply. The old magnetron is removed by unscrewing its mounting bolts and disconnecting the electrical leads. The new magnetron is positioned in the same location, ensuring the waveguide aligns with the oven cavity. The electrical connections are reattached, and the mounting bolts are tightened securely. Once reinstalled, the oven is powered back on and tested to confirm the magnetron is functioning.

This magnetron is constructed as a direct replacement for Panasonic commercial microwave ovens. It fits models requiring the 2M244-M6 specification, ensuring compatibility with the existing power supply and waveguide configuration in the appliance.

The Magnetron 2M244-M6 is listed in the catering spares catalogue under microwave components for professional kitchens.
