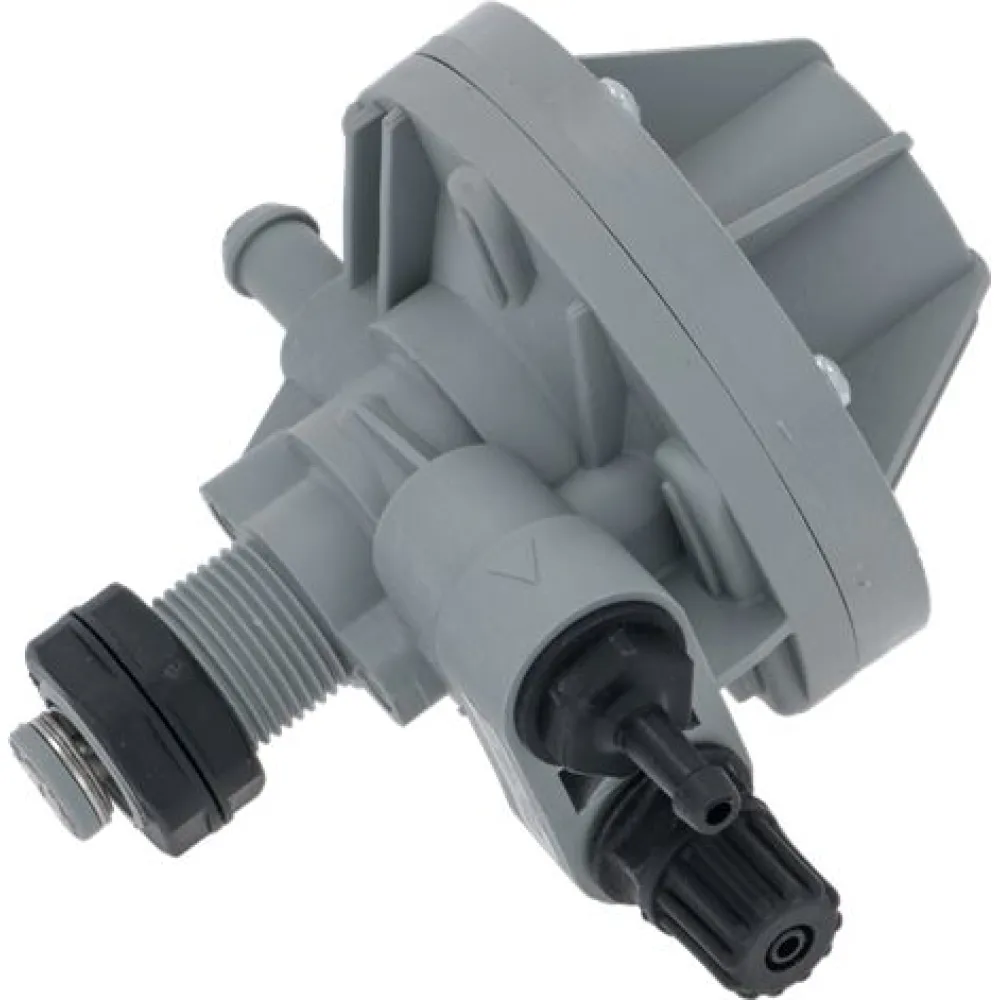

Hydraulic rinse aid dispenser LF L5088298

A hydraulic rinse aid dispenser delivers a measured dose of rinse aid into the final rinse cycle of a commercial dishwasher or glasswasher. It uses the water pressure of the incoming supply to open a valve and release the liquid from a reservoir. The rinse aid lowers the surface tension of the water, so it sheets off crockery and glassware instead of forming droplets that dry into spots. The process is entirely mechanical, requiring no electricity or moving parts beyond the valve itself.

The operator fills the reservoir with rinse aid, then the dispenser works automatically each time the dishwasher runs a rinse cycle. Water pressure from the machine's supply line pushes against a diaphragm inside the dispenser, opening the valve for a set interval. The dose is consistent, matching the volume of rinse aid needed for the load without manual adjustment.

The DIB-3E is constructed for direct connection to the water line of compatible dishwashers. It fits specific models from MAKRO-PROFESSIONAL, METRO AG and SILANOS, including the GDW2001 dishwasher and SILANOS E-series machines. Installation is fixed in place, with no additional controls or settings to manage once the reservoir is filled.

Cleaning involves emptying and rinsing the reservoir periodically to prevent residue build-up. The hydraulic valve requires no maintenance beyond ensuring the water supply is free of debris that could block the diaphragm.

This dispenser is a spare part for the listed commercial dishwashers and glasswashers, replacing worn or faulty units to restore automatic rinse aid dosing.
