Hot drop-in bain-marie ROCAM 006INDROP4BM

A drop-in bain marie heating well keeps prepared dishes at serving temperature without drying or scorching. The well holds water, heated by silicone adhesive elements beneath the stainless steel basin. Heat transfers evenly through the water, surrounding the gastronorm containers with gentle warmth. A digital thermostat regulates the temperature, maintaining the set point across the entire well. This method prevents hot spots and preserves the texture and moisture of sauces, soups and braised items for hours, making it essential for buffet service, assisted counters and pass-through stations.

The operator fills the well through the built-in water system, which includes an overflow pipe to prevent overfilling. Once the water reaches the correct level, the unit is switched on and the thermostat set between 0 and 90 °C. The silicone elements warm the water, and the digital display shows the current temperature. Gastronorm containers of 1/1 size are lowered into the well, where they rest on the removable grid. The operator monitors the display and adjusts the thermostat as needed to keep dishes at the required serving temperature. A drain cock at the base allows the water to be emptied after service.

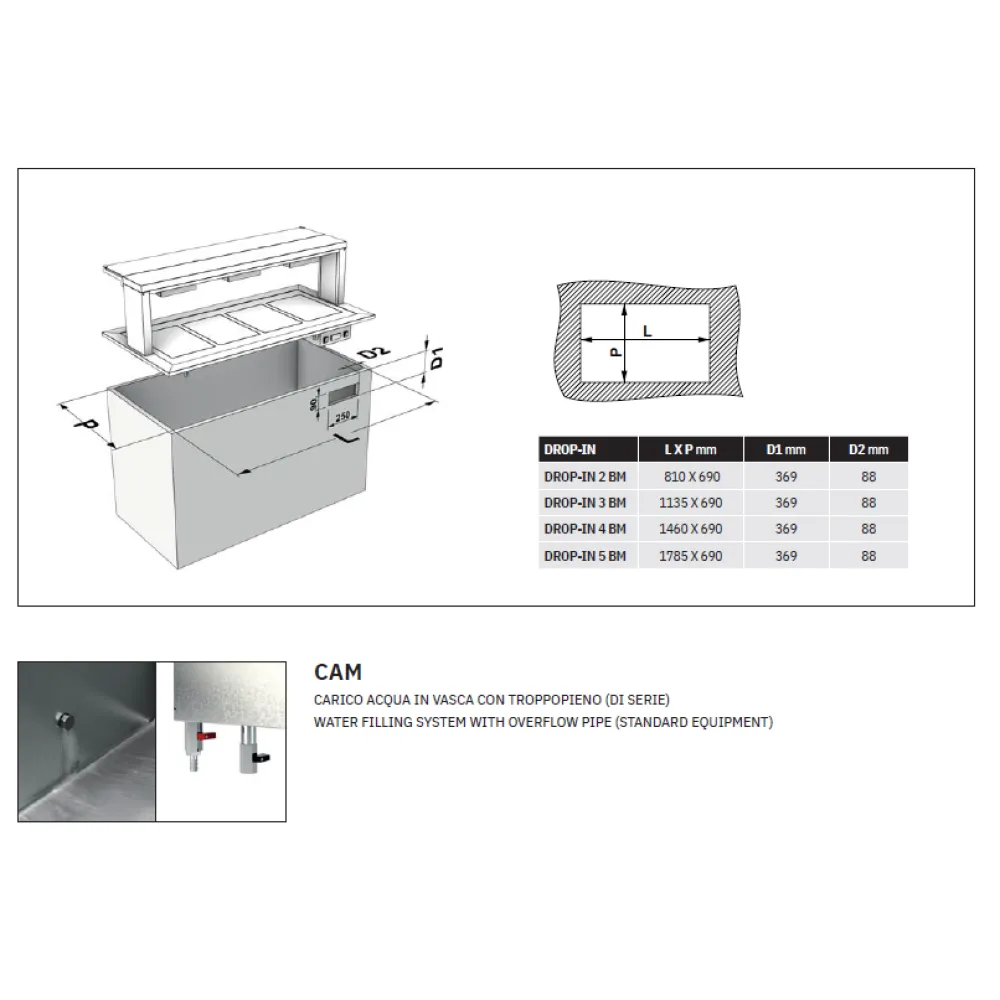

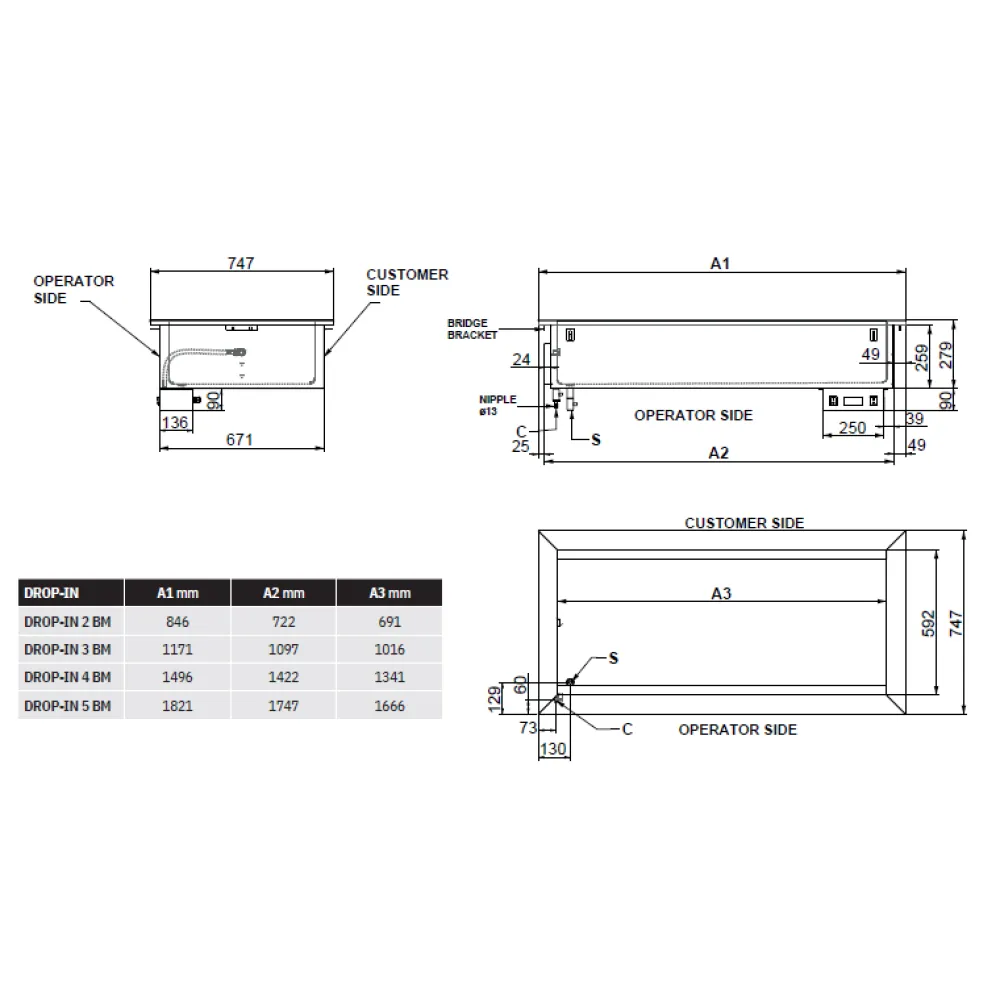

The well is constructed from stainless steel, with a silicone heating element bonded to the underside. The external frame is also stainless steel, and the unit is designed to drop into a worktop cut-out of 1496 × 747 mm. The well itself measures 1341 × 592 × 260 mm deep, providing capacity for four GN 1/1 containers. A 2 kW power rating draws a steady load on a 230 V single-phase circuit, suitable for most professional kitchen supplies.

Controls consist of a digital thermostat with a display that shows the current water temperature and allows the operator to set the desired range. The thermostat cycles the heating element to maintain the temperature without fluctuation, ensuring consistent results throughout service.

The 230 V voltage requirement matches the standard supply in British commercial kitchens, allowing the unit to be connected to a dedicated circuit without additional transformers. The 2 kW power rating indicates a moderate electrical demand, balancing heating performance with manageable energy consumption. The external dimensions of 1496 × 747 × 370 mm determine the space the unit occupies on the worktop, while the well depth of 260 mm accommodates standard gastronorm containers and sufficient water volume for stable temperature control.

Cleaning involves draining the water through the cock, removing the grid and wiping the stainless steel surfaces with a mild detergent. The silicone heating element requires no maintenance beyond keeping it free of scale, which can be managed with periodic descaling agents. The overflow pipe and filling system should be checked regularly to ensure they remain clear and functional.

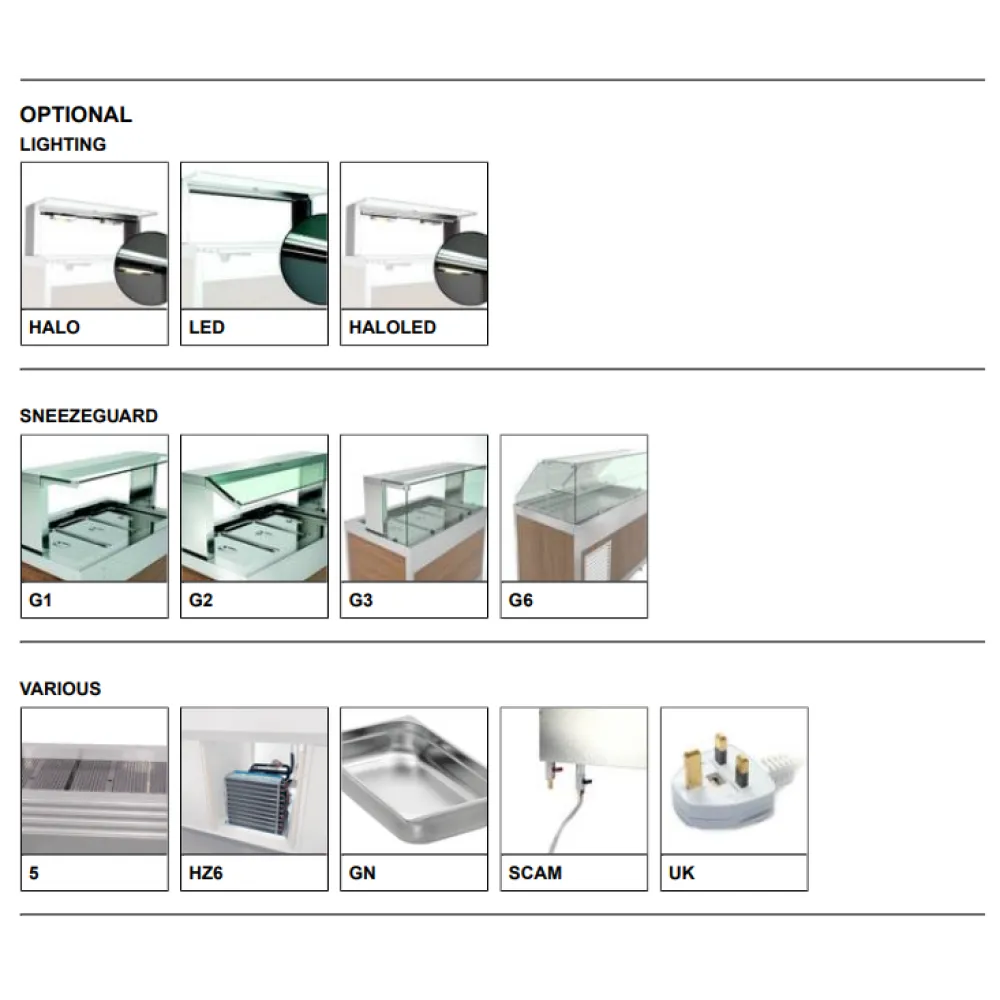

Optional configurations include LED lighting, halogen heating lamps, tempered glass sneeze-guards in straight or inclined designs, and closed glass displays for assisted service. A removable display grid and a water drain kit with a cam fitting are also available. The unit can be specified with a UK plug type G for direct connection.

The 4BM model is categorised under drop-in bain marie heating wells in the ROCAM professional catering equipment range.
