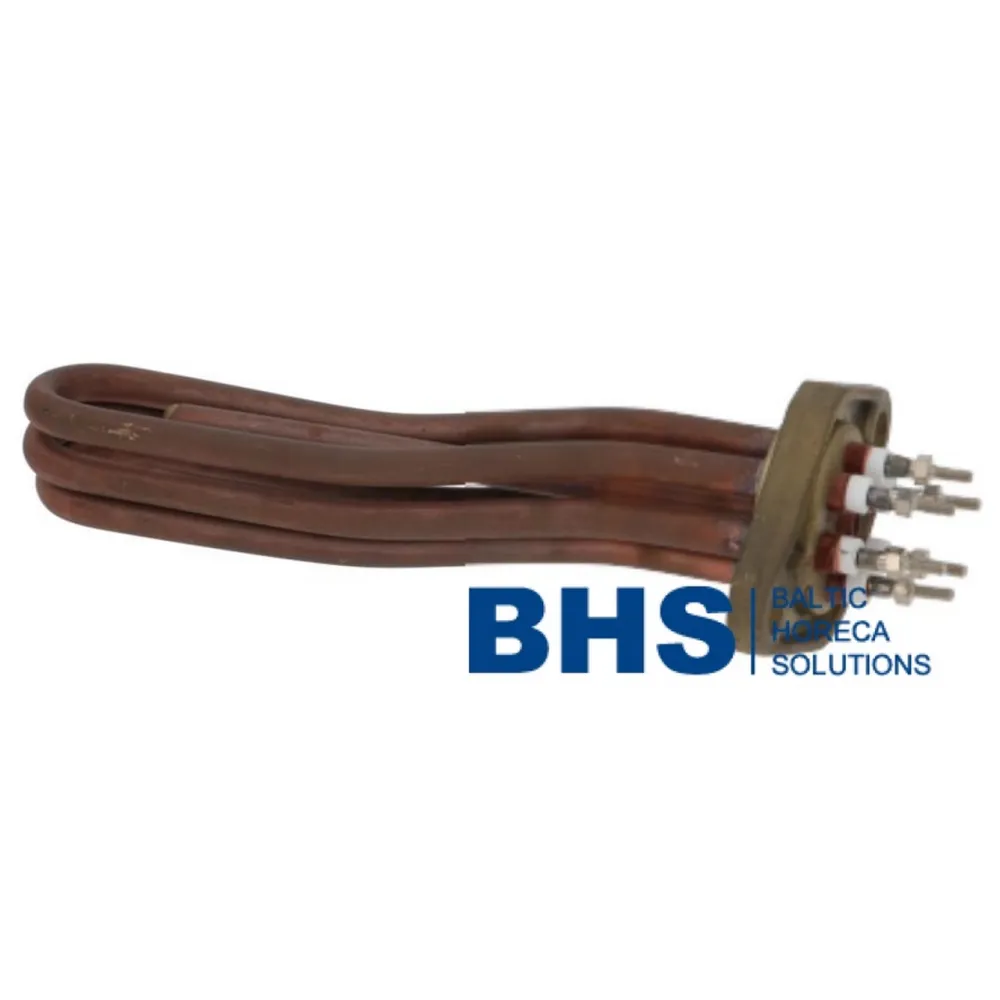

Heating element LF 1755065

A heating element converts electrical energy into heat, raising the temperature of water in a commercial coffee machine. The element sits submerged in the boiler, where its resistance wire generates heat as current passes through. This heat transfers directly to the water, maintaining the precise temperature needed for brewing espresso. The method ensures rapid heating and consistent performance, critical for high-volume service in cafés and restaurants.

To install the element, the operator first disconnects the machine from the power supply. The old element is removed by unscrewing its fixings, then the new LF element is positioned with its 75 mm fixing holes aligned to the boiler's mounting points. Once secured, the electrical connections are reattached, and the machine is powered back on. The element's dual power ratings allow it to operate on either a 230 V single-phase or 400 V three-phase supply, adapting to the electrical setup of the kitchen.

The element is constructed to fit specific models of ASTORIA CMA and WEGA coffee machines, including the ASTORIA CMA ARGENTA, BRAVA, CALYPSO, and WEGA AIRY, ATLAS, COLOSSEUM ranges. Its 2.0/2.177 kW power output determines the load it places on the circuit, requiring a dedicated supply capable of handling the demand without tripping breakers or overheating wiring. The 75 mm spacing between fixing holes ensures compatibility with the boiler's mounting points, preventing misalignment during installation.

Cleaning the element is not required as part of routine maintenance, but the surrounding boiler should be descaled periodically to prevent limescale build-up, which can reduce heat transfer efficiency. The element itself is not user-serviceable beyond replacement; if it fails, the entire unit is swapped out rather than repaired.

This heating element is a direct replacement part for the listed ASTORIA CMA and WEGA models, catalogued under spare components for commercial coffee equipment.
