GN pan trolley ROCAM 039TH1/1C16

A mobile heated cabinet keeps GN 1/1 trays, baking tins or gastronorm pans at serving temperature while they move from kitchen to service point or event location. The cabinet circulates warm air inside an insulated double-wall chamber, preventing cold spots and maintaining even heat across every shelf. This method avoids direct contact with heating elements, so food stays moist and does not dry out during holding periods.

The operator loads up to sixteen GN 1/1 trays onto the internal C-shaped rails or L-shaped guides, closes the door and sets the temperature. Once the cabinet reaches the desired level, the thermostat cycles the heating element to hold the heat without fluctuation. Four swivel castors—two with brakes—allow the unit to be pushed through doorways and positioned precisely where needed. Full-height pushing pipes on both sides give staff a secure grip when manoeuvring the cabinet across uneven floors or ramps.

Construction is AISI 304 stainless steel throughout, with an insulated double wall that reduces heat loss and keeps the exterior cool to the touch. The doors seal with a thermal gasket to retain warmth, and four corner bumpers protect walls and door frames from knocks. Inside, the C-shaped rails prevent GN pans from tipping, while the L-shaped guides accept trays and baking tins. Both sets of guides are removable, so the interior can be wiped down quickly after service.

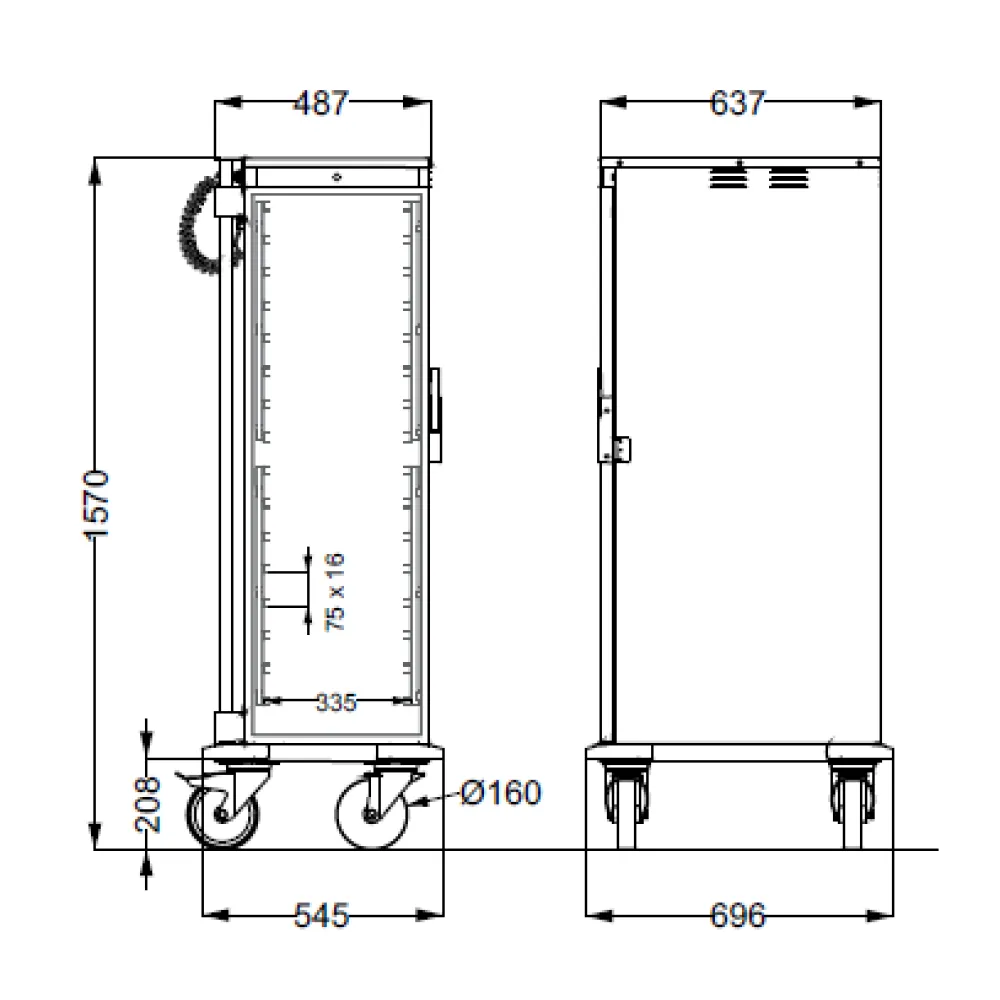

Controls are simple: a thermostat dial sets the holding temperature, and an indicator light shows when power is on. The 230 V single-phase supply plugs into a standard UK socket, drawing 1.7 kW—light enough for most kitchen circuits. The cabinet's footprint of 545 mm wide by 696 mm deep fits through standard doorways and leaves room for aisle traffic, while the 1570 mm height allows stacking under most worktop extractors.

Cleaning is straightforward: remove the guide frames, wash them separately, and wipe the interior and exterior with a damp cloth. The stainless steel surface resists staining and corrosion, so the cabinet maintains its appearance even after repeated use. Optional extras include GN trays, a lockable door, a stainless steel grid shelf, a UK-type G plug and directional air vents that can be closed when the cabinet is not in use.

The THERMOVEGA 1 C16 is part of the ROCAM heated-cabinet range, designed for mobile holding and transport of hot food in professional kitchens, catering events and satellite service points.
