GN pan trolley ROCAM 039FR2/1C15

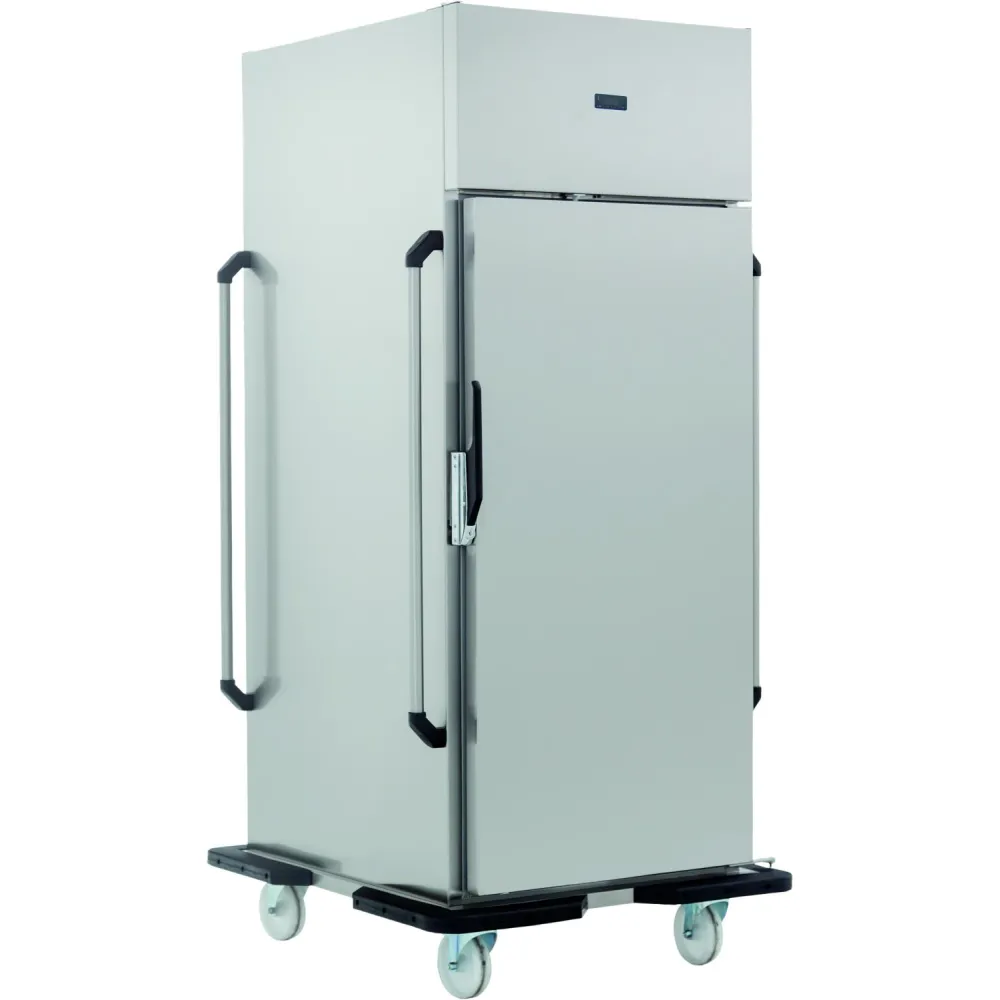

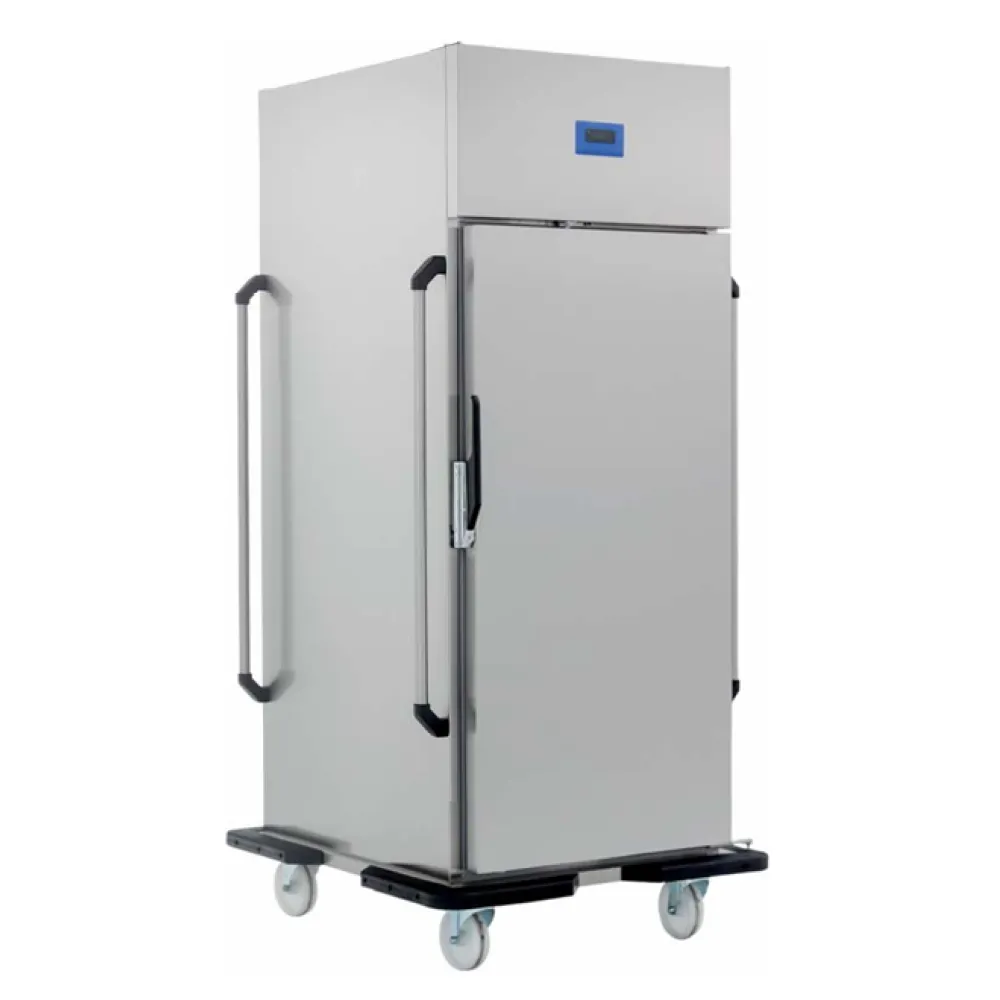

The ROCAM FRIGOVEGA 2 C20 is a refrigerated cabinet trolley designed for cold storage applications. Its construction is entirely from stainless steel, providing a hygienic surface.

The operating principle involves fan-assisted air cooling to maintain a consistent internal temperature. This system circulates cold air throughout the cabinet, ensuring uniform chilling of its contents. The unit incorporates automatic defrost functionality to prevent ice build-up, which could impede cooling efficiency. The compressor group is housed at the top of the unit. Refrigeration is achieved using R 290 refrigerant.

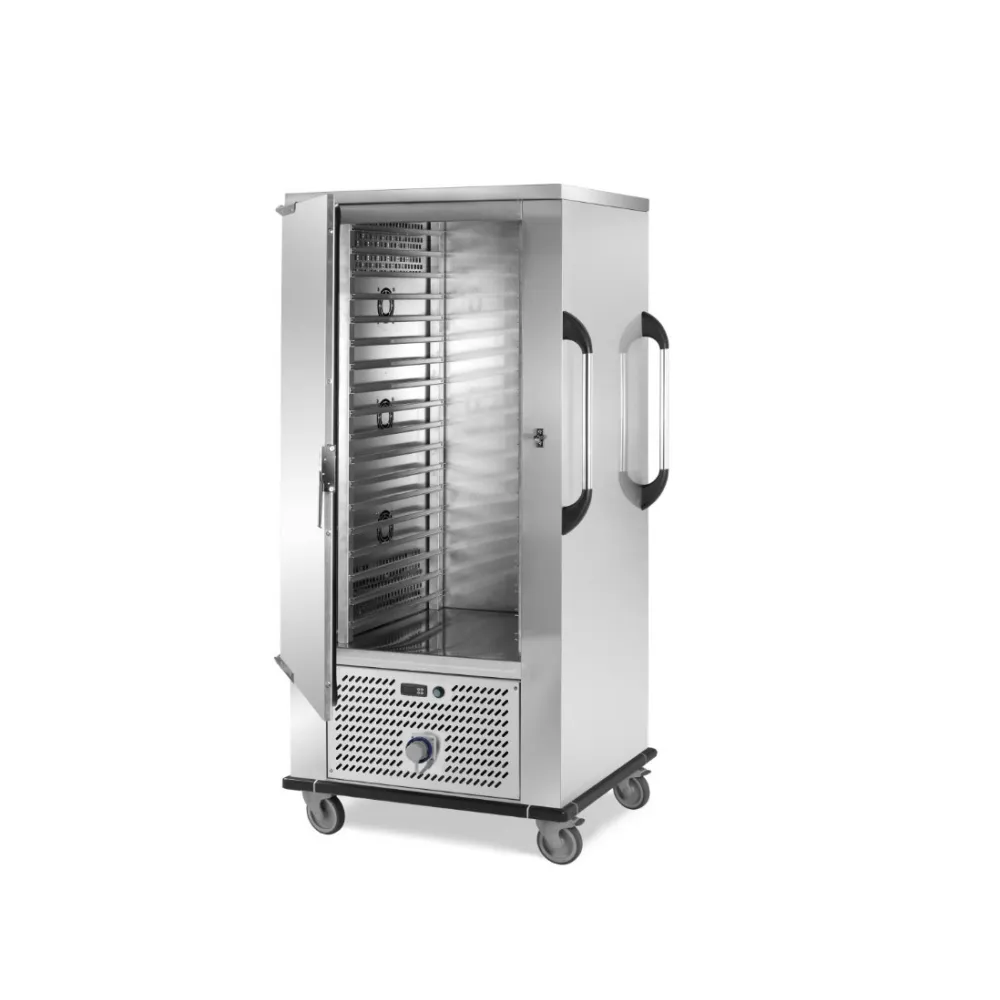

To use the trolley, food items are placed into GN (Gastronorm) pans. These pans are then positioned on the moulded profiles within the cabinet. The trolley has a capacity to hold 20 x 2/1 GN pans, or alternatively, 40 x 1/1 GN pans, with 3 mobile grids provided for flexible arrangement. The temperature range is adjustable between 0 °C and +8 °C, suitable for keeping a variety of foodstuffs chilled.

Construction details include 70 mm thick internal insulation for thermal efficiency. For mobility, the trolley is fitted with 2 swivel and 2 fixed castors. It also features plastic angular bumpers to protect surfaces and push handles on both sides for ease of manoeuvring.

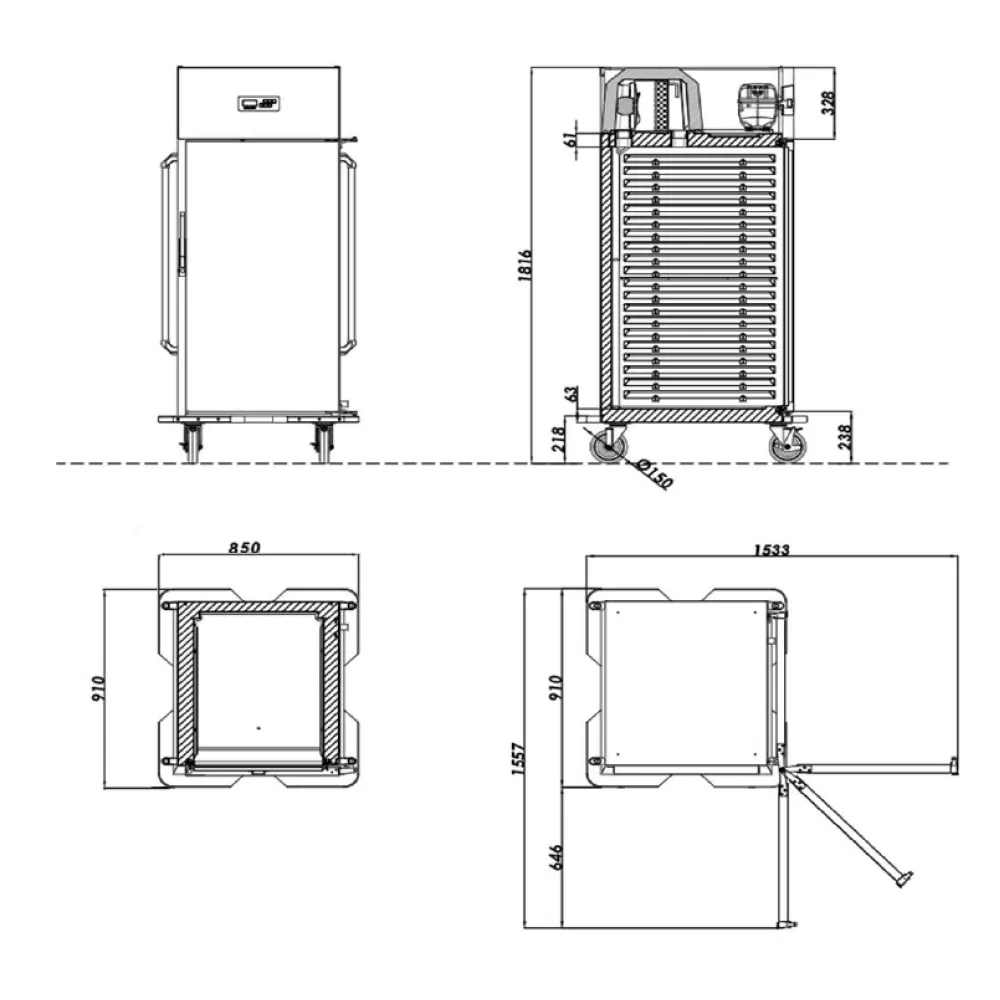

The trolley's power requirement is 0.4 kW at 230 V. It has a net weight of 142 kg. The external dimensions are 900 mm in length, 850 mm in width, and 1810 mm in height.

Cleaning should focus on the stainless steel surfaces and the interior, paying attention to the moulded profiles and grids. The fan-assisted cooling system and automatic defrost require no specific user maintenance beyond ensuring the unit is kept clean.

This model is listed in the catalogue under cold equipment and refrigerator applications, specifically for trolleys, GN pastry pan trolleys, and canteen tray trolleys, particularly those made of stainless steel for GN pans.
