Food service area lamp ROCAM 03600AL2REDIN

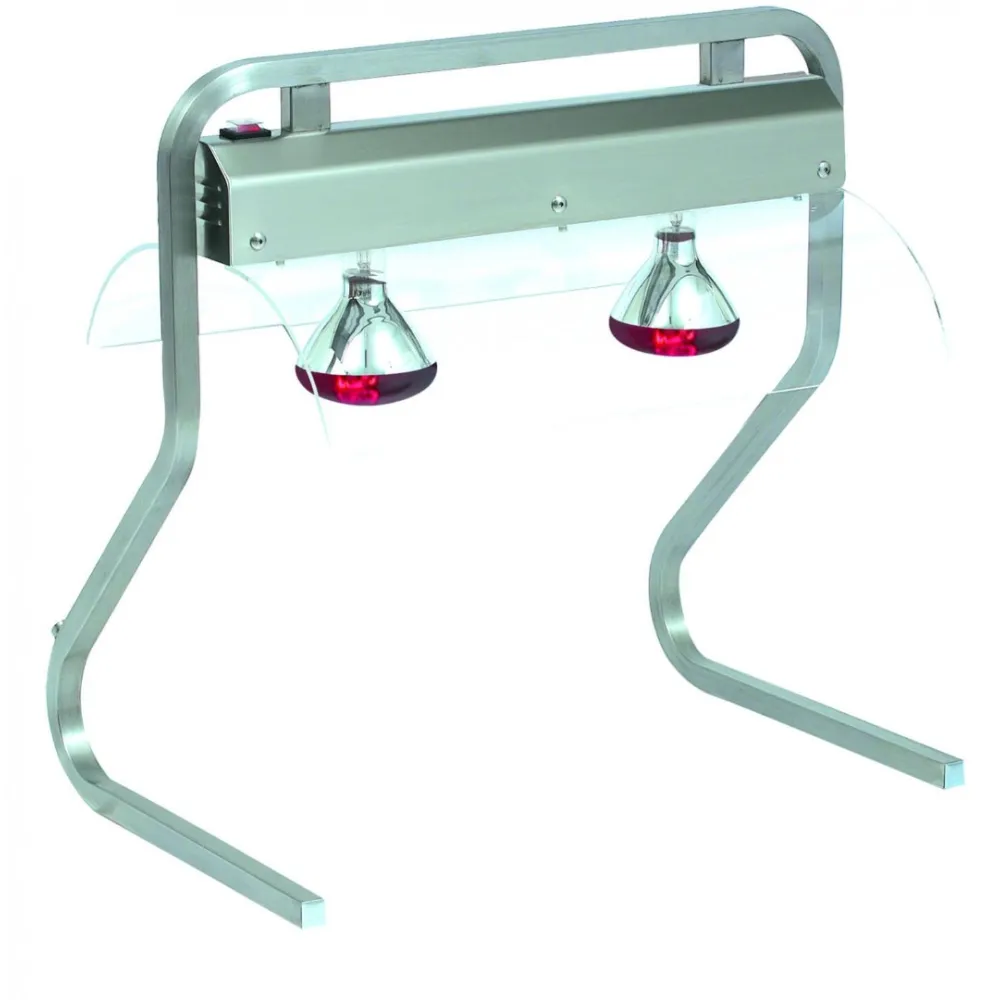

An infrared bridge-frame holds plated dishes at serving temperature without drying or overcooking. Two infrared lamps mounted above the work surface emit radiant heat that warms the surface of the food, not the air around it. This direct transfer keeps sauces glossy, meats juicy and vegetables firm while the plates stay warm enough for immediate service. The operator places two gastronorm 1/1 trays on the stainless steel deck, adjusts the lamp height with the bridge-frame's sliding mechanism, then switches the unit on. The lamps glow red, indicating heat output; a simple rotary knob sets the intensity. Once the desired temperature is reached, the frame maintains it until the trays are removed or the power is turned off. No fan or convection current is involved, so delicate items such as meringues or glazed pastries remain undisturbed. Construction is a free-standing AISI 304 stainless steel tube frame with a flat worktop sized to accept two GN 1/1 containers side by side. The infrared lamps are standard red-glass types; white-glass versions are available on request for environments where red light is undesirable. The entire unit stands on adjustable feet for levelling on uneven floors. A 0.5 kW power rating draws a modest load from a standard 230 V single-phase circuit, suitable for most kitchen ring mains. The footprint of 700 mm by 494 mm fits neatly above a worktop or under a pass shelf, while the 713 mm overall height clears most standard overhead cupboards and extractor canopies. Packing dimensions of 120 × 80 × 110 mm simplify delivery and storage before assembly. Cleaning is straightforward: the stainless steel frame and worktop wipe clean with a damp cloth and mild detergent. The infrared lamps should be allowed to cool before handling, then dusted with a soft brush or cloth. The stainless-steel frame slides out from under the lamps without tools so you can wipe down every surface between lunch and dinner service. Variants include the option of white-glass infrared lamps for sites where red light is not preferred.
