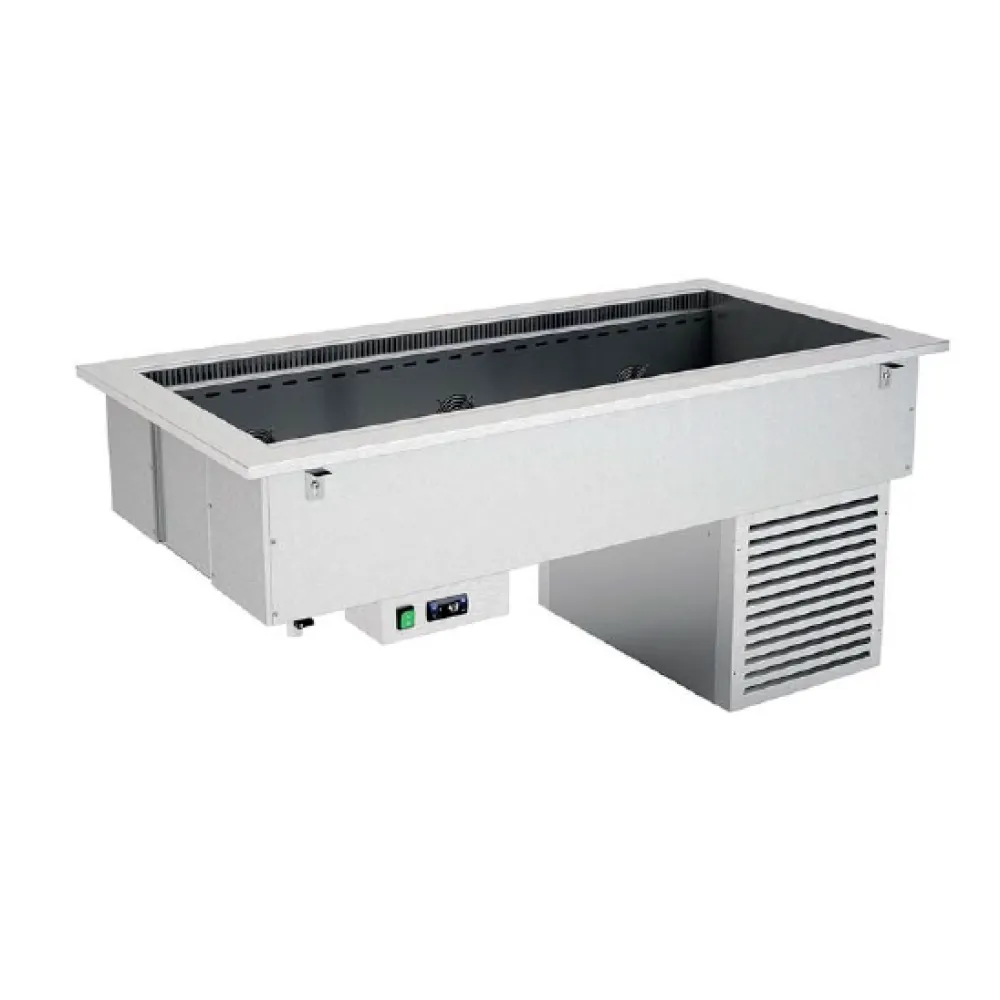

Drop-in cold well ROCAM 006INDROP5R/V

A drop-in cold module that circulates chilled air across the surface of gastronorm pans without an evaporator coil. Fans mounted beneath the stainless-steel well draw heat away from the food and expel it through the refrigeration circuit, creating a dry, even chill that prevents condensation on the pans and keeps ingredients at serving temperature without ice crystals or soggy textures.

The operator slides up to five GN 1/1 pans into the 26 cm-deep well, sets the digital thermostat between +2 °C and +10 °C, and leaves the fans to maintain the temperature. A drain cock at the base of the well collects any meltwater or spills, allowing quick emptying without lifting the unit.

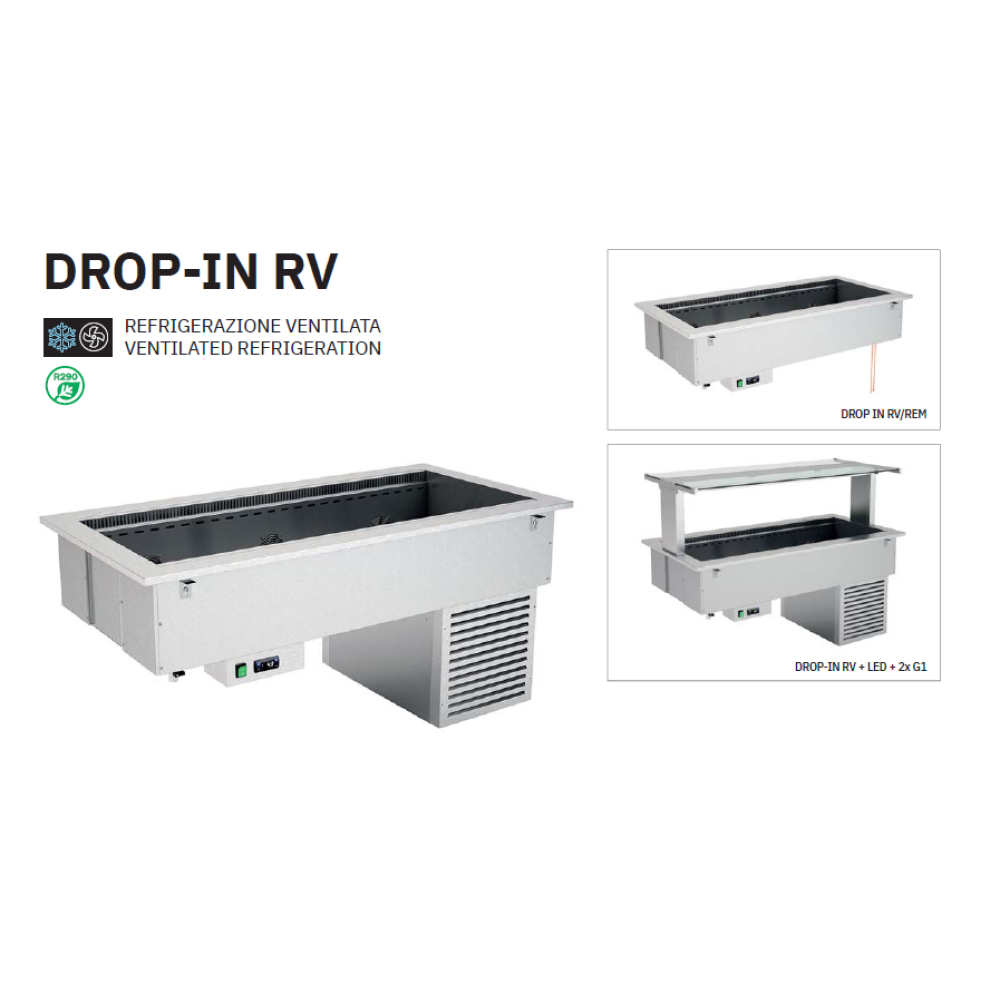

The module is built as a stainless-steel frame with rounded well edges to prevent damage to pans. Two refrigeration variants are offered: one with an integrated compressor running on R290 refrigerant gas, and one ready for remote refrigeration connection. The 230 V supply powers the fans and, when fitted, the compressor and optional LED lighting.

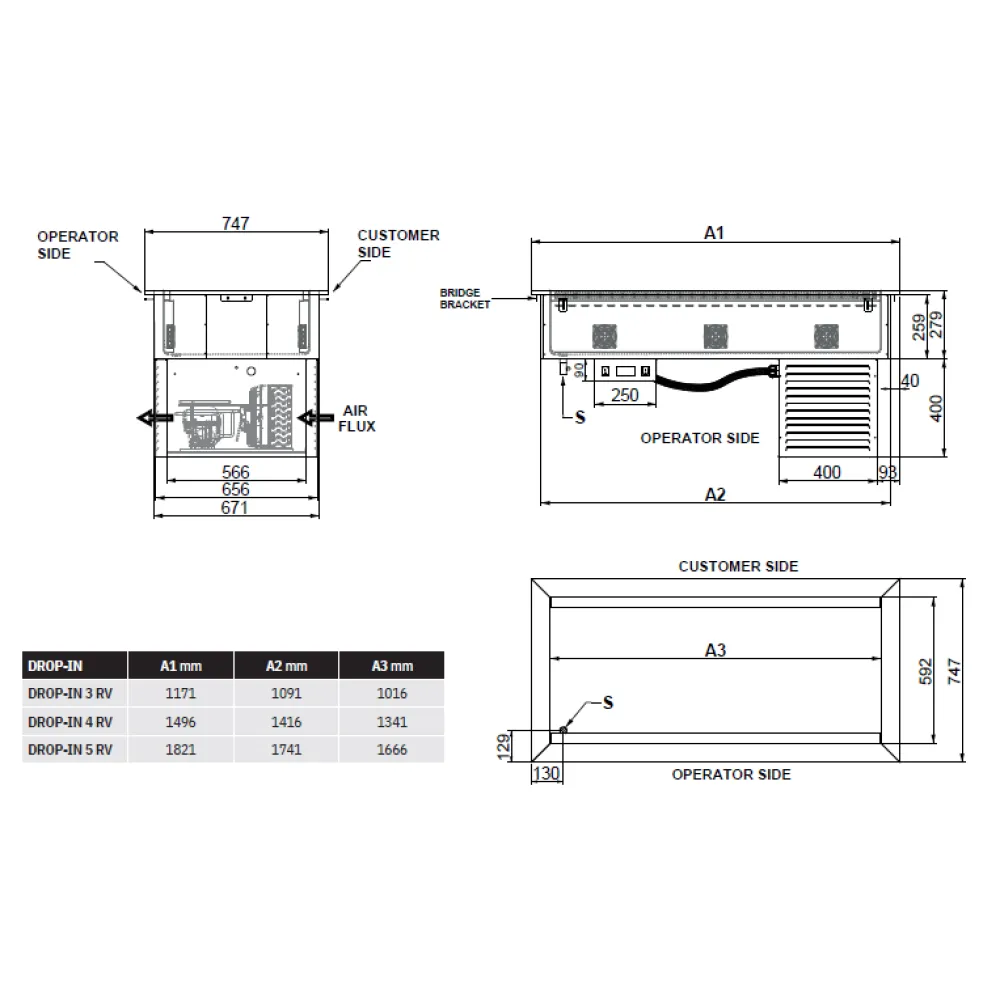

Controls are limited to the digital thermostat, which displays and adjusts the well temperature. The 55 kg weight allows the unit to be moved with a trolley or two people, while the 1821 mm width and 747 mm depth fit standard worktop cut-outs. The 260 L well volume accommodates five GN 1/1 pans side by side.

Cleaning involves wiping the stainless-steel surfaces and well with a damp cloth, then opening the drain cock to flush out any residue. The removable display grid, when fitted, can be lifted out and washed separately.

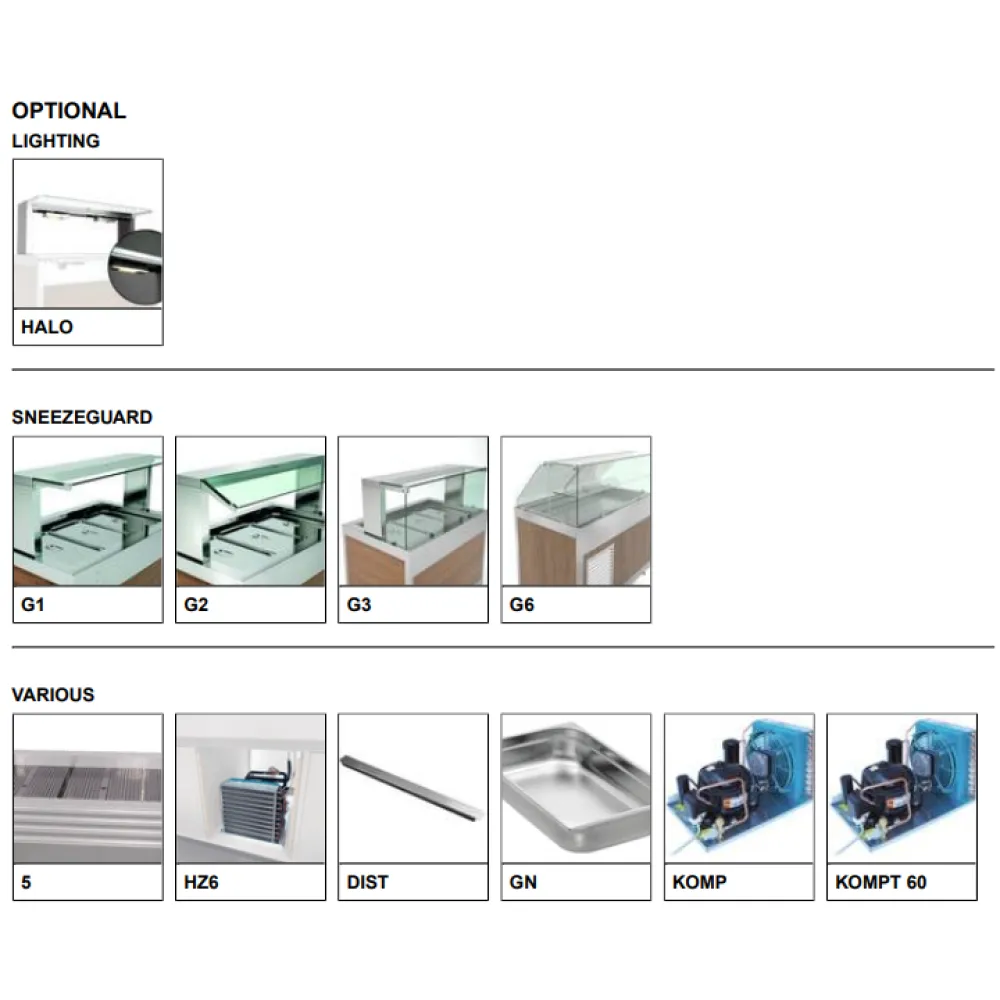

Optional extras include LED lighting, straight or inclined tempered-glass sneeze-guards, closed glass displays for assisted service, spacers for GN tanks, and a 60 Hz compressor for export markets. The module is also available without a built-in refrigeration unit for kitchens with centralised cooling systems.

Designed for professional catering counters, the DROP-IN-5RV sits in the ROCAM refrigeration range alongside other drop-in and counter-top cold wells.
