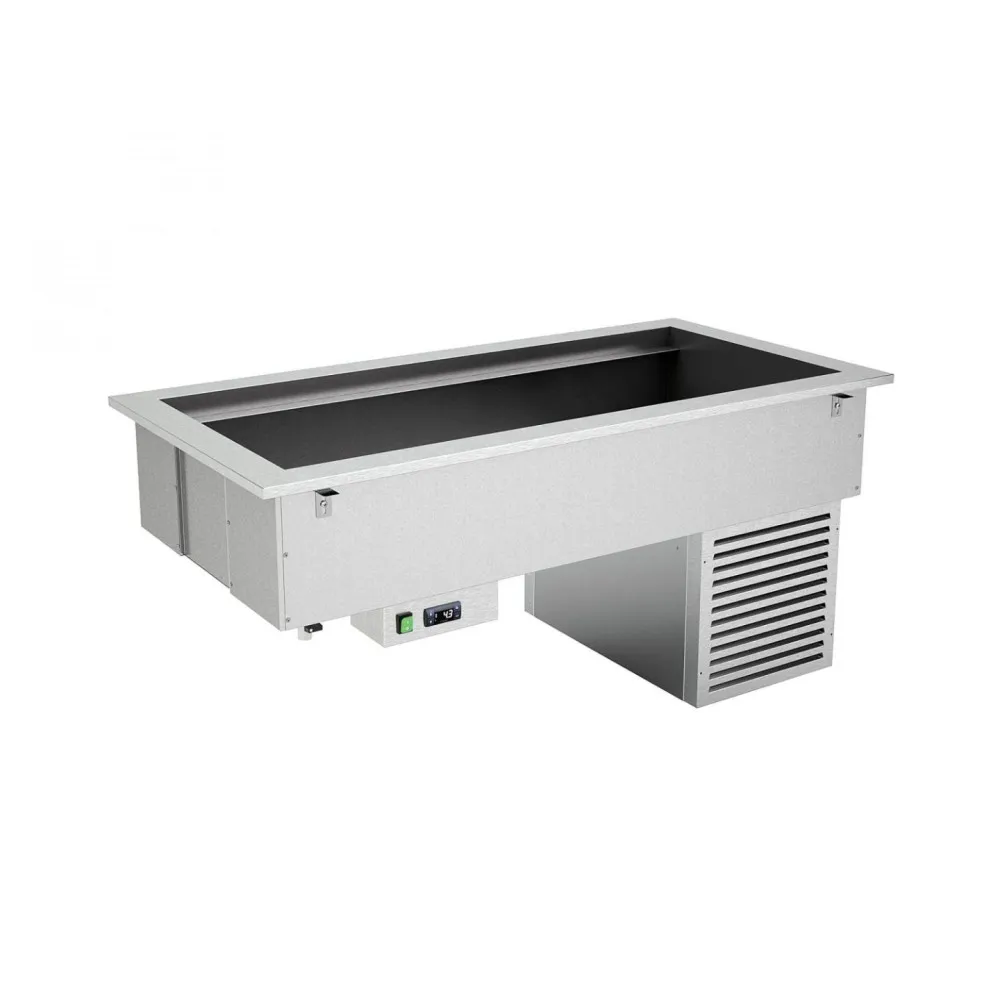

Drop-in cold well ROCAM 006INDROP4R

This ROCAM 006INDROP4R is a static refrigerated cold module of the drop-in type. It operates using a compressor unit and R290 refrigerant gas.

Cold modules of this type work by using a refrigeration system to remove heat from an insulated compartment. The compressor unit circulates refrigerant, which absorbs heat from the interior and expels it externally. This process lowers the temperature within the module to preserve food items. The static refrigeration means there is no fan to circulate the cold air; instead, the cold is generated and maintained within the module.

To use the module, food items are placed directly into the well. The temperature is controlled via a digital thermostat, allowing the user to set the desired cooling level between 2 °C and 10 °C. The module is equipped with LED lighting to illuminate the contents.

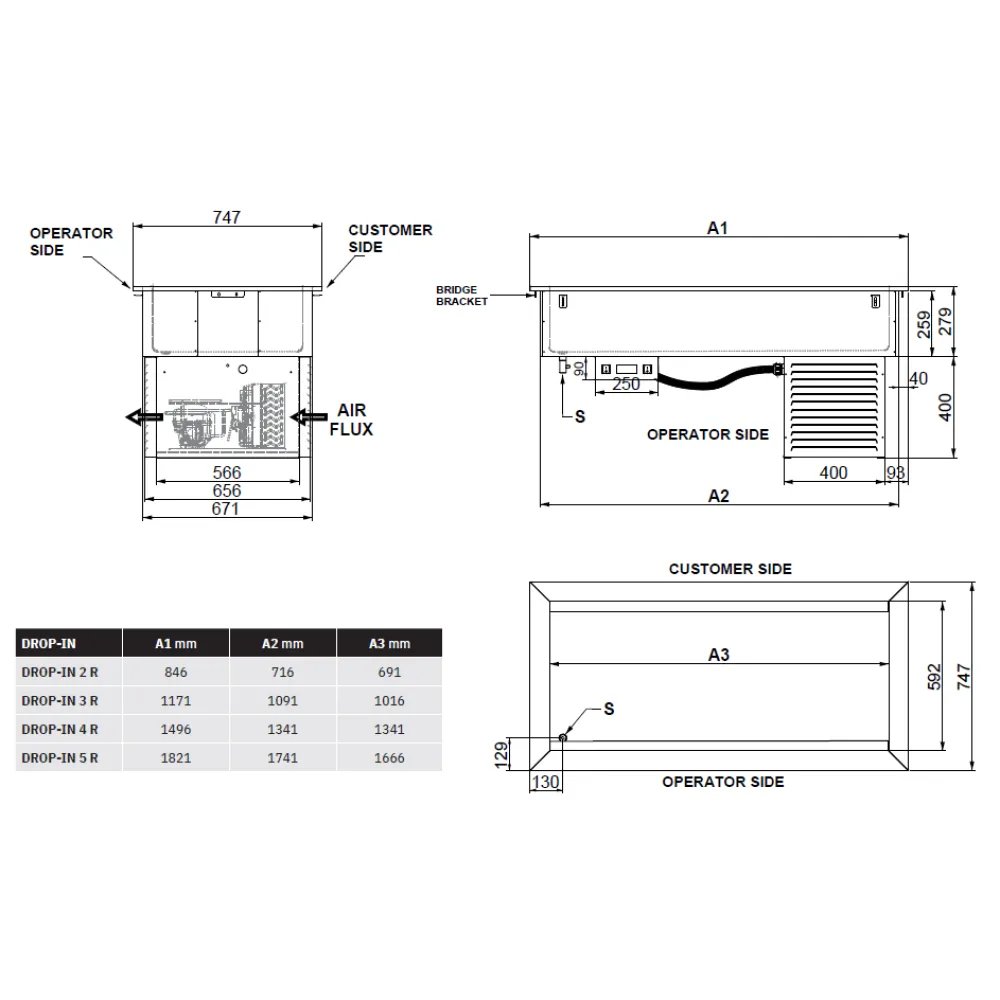

Construction details include integrated LED lighting. The module is powered by a 230 V supply, with a power consumption of 0.33 kW. Its dimensions are 1496 mm in length, 747 mm in width, and 680 mm in height. The unit weighs 47 kg.

The digital thermostat allows for precise temperature regulation within its operating range of 2 °C to 10 °C.

A version without a cooling unit, ready for remote connection, is available.

This module is listed in the catalogue for canteen equipment and cold DROP-IN chafing dishes.
