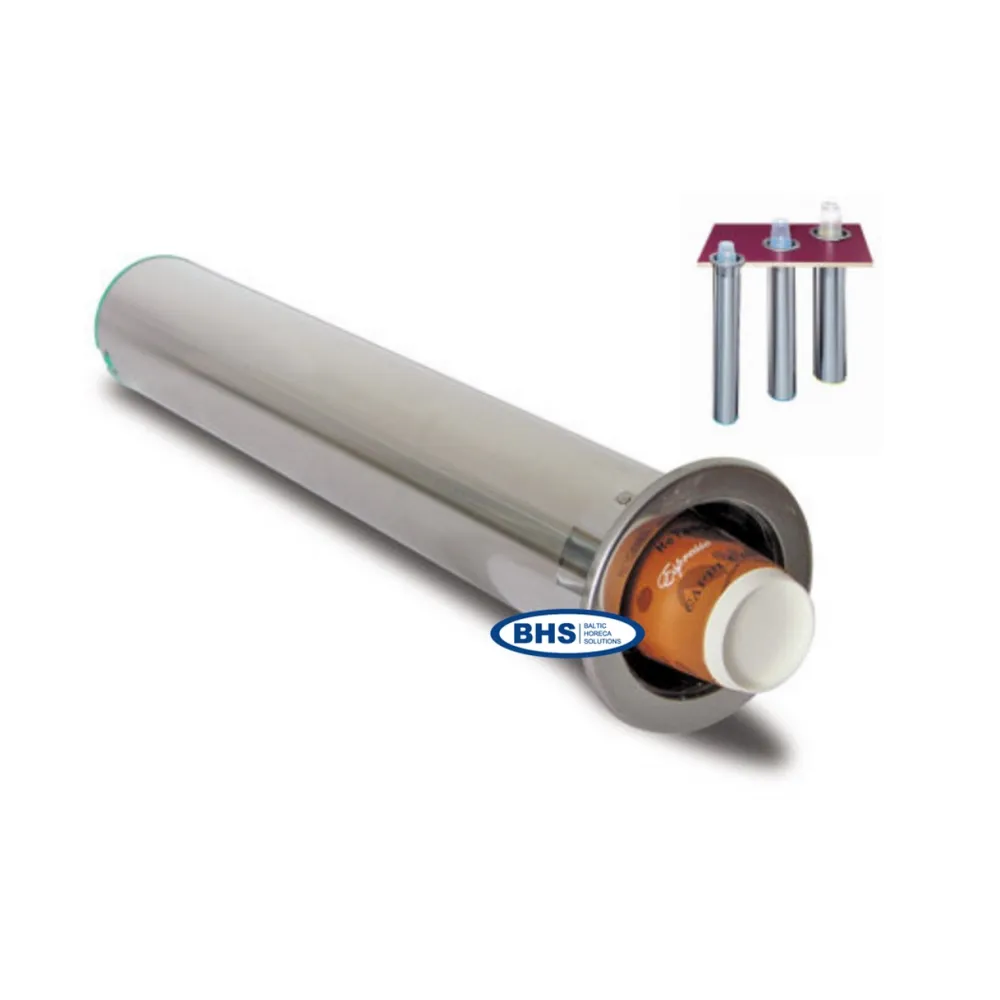

Disposable cup and glass dispenser BHS.LV-F BHS460003

A cup dispenser organises and delivers drinking vessels without handling each one. The unit holds a stack of cups or glasses in a vertical column, supported by a shallow collar at the base. Gravity keeps the stack aligned, and the collar is sized so that only the bottom vessel protrudes. When an operator pulls the lowest cup, the next one drops into place, ready for the next customer. This method eliminates reaching into a shelf or bin, reduces breakage and speeds service during peak hours.

To load the BHS-F B23, the operator lifts the stack, places the first cup on the collar, then lowers the rest on top. The shallow collar allows the cup to clear the ring when pulled, while the weight of the stack above prevents it from tipping. The dispenser is fixed to the worktop, so the column stays vertical and the cups remain accessible at a consistent height.

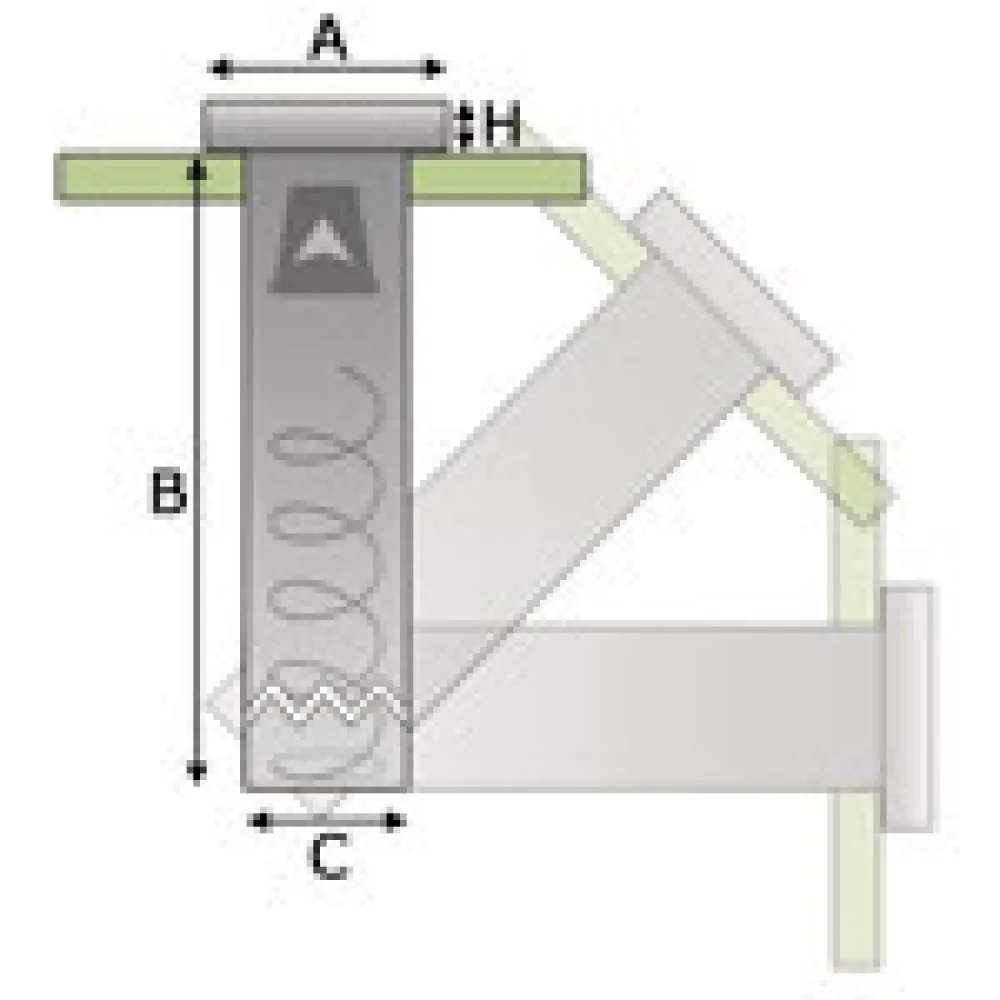

The body is made of polished stainless steel, which resists corrosion and staining from moisture and cleaning agents. The collar is also steel, with a smooth finish that does not scratch the rims of the vessels. The dimensions of 600 mm height and 175 mm width create a narrow footprint that fits between other worktop equipment without crowding the serving area.

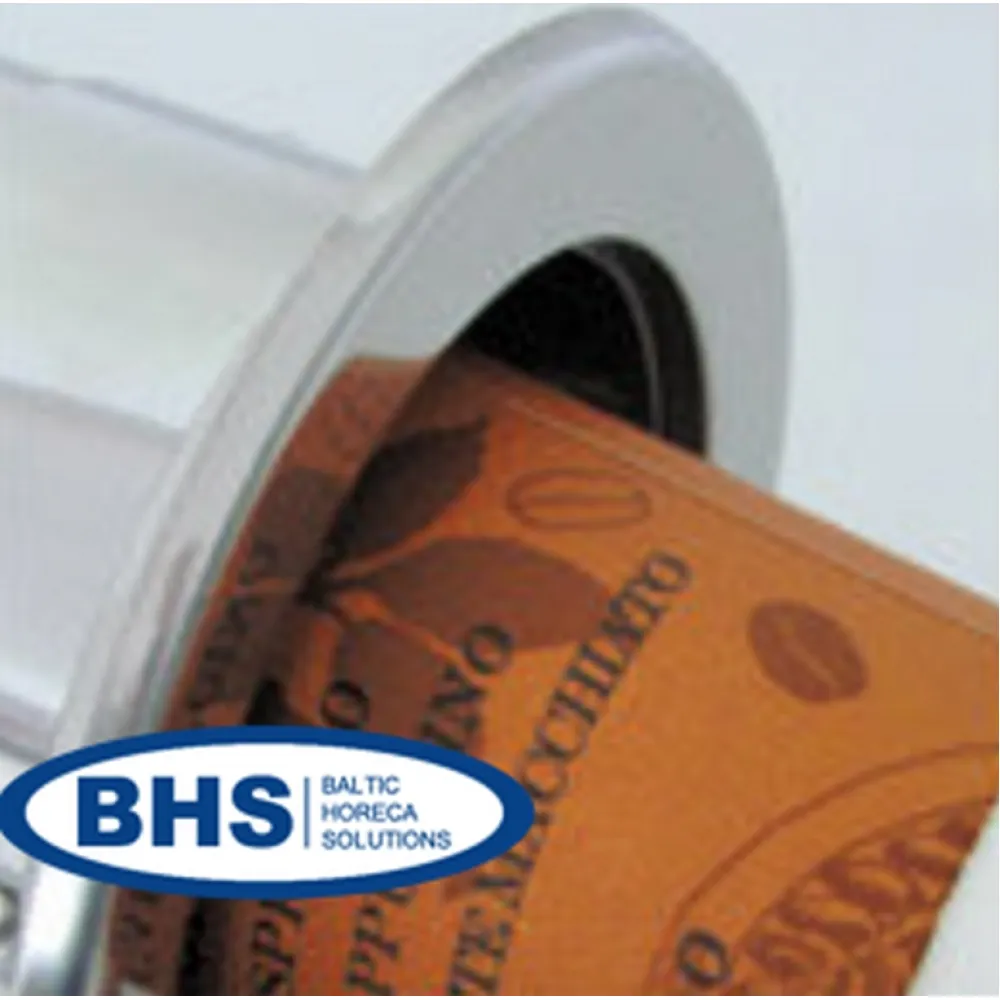

The dispenser accepts cups or glasses with a volume of 950 to 1360 ml or a diameter of 101 to 123 mm. This range covers standard tumblers, pint glasses and larger mugs used in cafés, pubs and canteens. The 7 mm height of the collar is shallow enough to allow easy removal of the bottom vessel, yet deep enough to hold the stack steady.

Cleaning is limited to wiping the stainless steel surfaces with a damp cloth and a mild detergent. The polished finish prevents dirt from adhering, and the absence of moving parts or crevices simplifies upkeep. The unit is fixed to the worktop, so it does not need to be moved for cleaning underneath.

The BHS-F B23 is a single-column dispenser designed for worktop mounting. It is placed in the catering equipment catalogue under beverage service accessories.
