Technical data
| Attributes | |
| ARTICLE | 01000ATH4MRVEW |
| POWER | 0.63 kW |

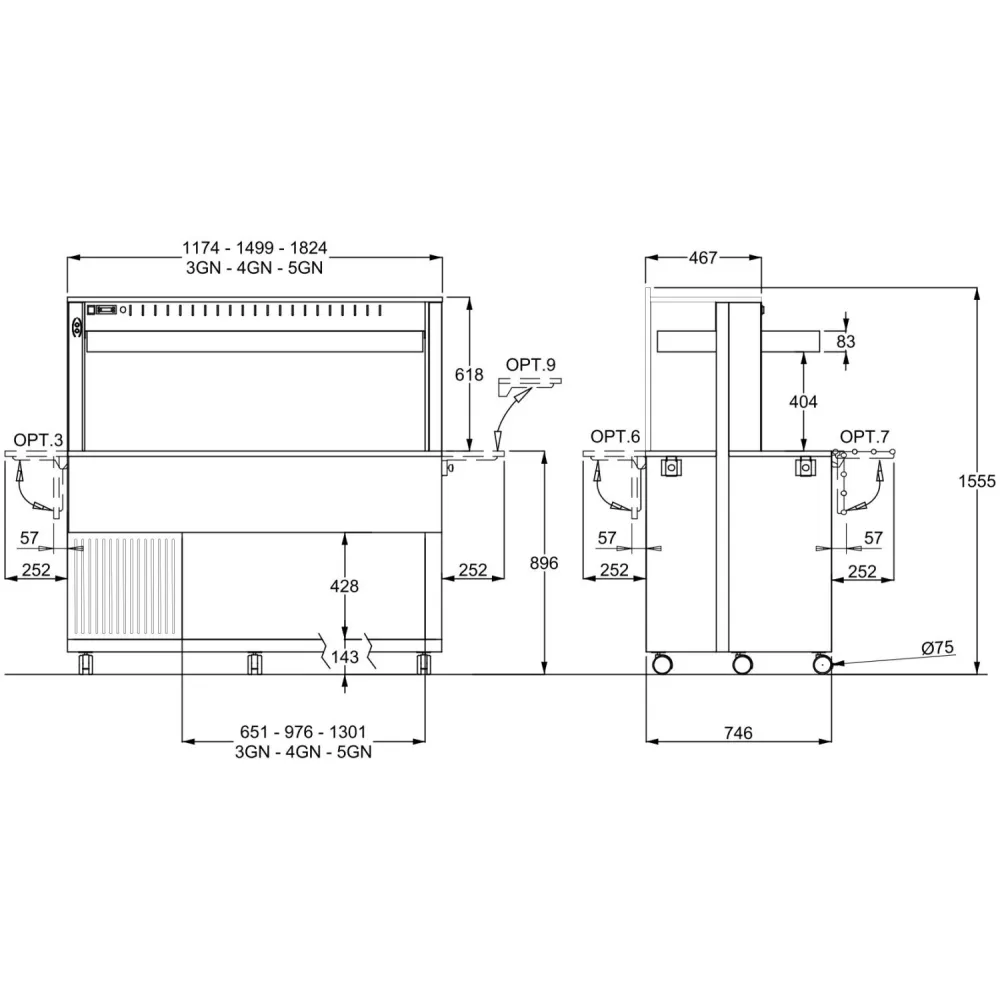

| SIZE L/W/H | 1499/747/1515 mm |
| VOLTAGE | 230V |
| WEIGHT | 213 kg |
| TEMPERATURE MODE | +2°/+8° |
| SIZE | Packing size : 155 / 92 / 185h mm |
| Finishing | Laminated wood |
| COLOR | You can customize and choose from a variety of colors for the finishing (You can see it in the photos) : SILVER / ROSE / SAFFRON / LIME / SKY / OCEAN / IVY / SAGE / CAPPUCCINO / CLAY / GREY / NIAGARA / VEINED WHITE / WHITE SAND / BIRCH / GREY FOG / ELM / WALNUT / WENGE / ANTHRACITE / VENED BLACK |
| CAPACITY | 4 GN1/1 max 200mm h |
| Additional equipment | It is possible to modify the most convenient option specifically for your needs, with additional options (additional cost) : 3 - Laminated wood folding dish-holder on short side 3-SST - Foldable dish holder short side - stainless steel 3-TUB - Tube stainless steel dishholder on short side 4 - Full lower closure w/doors 5 - Removable display grid 6 - Wooden folding dishholder 7 - Folding S/steel tube trayholder 8 - Foldable tray slide 9 - Removable long tray slide on short side in laminated wood 9-A - Removable long tray slide on short side in laminated wood 9-TUBA - Removable long tray slide on short side in stainless steel tube 9-SSTA - Removable long tray slide on short side in stainless steel 9-C - Removable tray slide on short side in laminated wood, for wall leaning 9-C-TUBA - Removable tray slide on short side in stainless steel tube, for wall leaning 9C-SSTA - Removable tray slide on short side in stainless steel, for wall leaning 10 - Reinforced 125mm diam steel castors, 2 with brake 11/FO - Surcharge for constrasting worktop in Formica color 14/F - Intermediate floor, compartment mod. refrigerated 15-F/LAM - Niche for refrigerated modules - Laminated wood 15-F/FO - Niche for refrigerated modules - Formica 16/LAM - Upper shelf top with increased depth and rear containing edge - Laminated wood 16/FO - Upper shelf top with increased depth and rear containing edge - Formica 17 - Intermediate custom module 17CH - Custom head module PZ - feet Z - Aluminium coated PVC feet skirting ADS - Customized adhesive sticker UK - Surcharge for UK plug 45CUT - 45° cut for optional 6/7/8 HZ6 - Compressor 60HzIt is possible to modify the most convenient option specifically for your needs, with additional options (additional cost) : 3 - Laminated wood folding dish-holder on short side 3-SST - Foldable dish holder short side - stainless steel 3-TUB - Tube stainless steel dishholder on short side 4 - Full lower closure w/doors 5 - Removable display grid 6 - Wooden folding dishholder 7 - Folding S/steel tube trayholder 8 - Foldable tray slide 9 - Removable long tray slide on short side in laminated wood 9-A - Removable long tray slide on short side in laminated wood 9-TUBA - Removable long tray slide on short side in stainless steel tube 9-SSTA - Removable long tray slide on short side in stainless steel 9-C - Removable tray slide on short side in laminated wood, for wall leaning 9-C-TUBA - Removable tray slide on short side in stainless steel tube, for wall leaning 9C-SSTA - Removable tray slide on short side in stainless steel, for wall leaning 10 - Reinforced 125mm diam steel castors, 2 with brake 11/FO - Surcharge for constrasting worktop in Formica color 14/F - Intermediate floor, compartment mod. refrigerated 15-F/LAM - Niche for refrigerated modules - Laminated wood 15-F/FO - Niche for refrigerated modules - Formica 16/LAM - Upper shelf top with increased depth and rear containing edge - Laminated wood 16/FO - Upper shelf top with increased depth and rear containing edge - Formica 17 - Intermediate custom module 17CH - Custom head module PZ - feet Z - Aluminium coated PVC feet skirting ADS - Customized adhesive sticker UK - Surcharge for UK plug 45CUT - 45° cut for optional 6/7/8 HZ6 - Compressor 60Hz |
| NOTES | Refrigerant gas: R290 |
Digital thermostat (+2°/+8°) and lighting with LED.
A refrigerated buffet maintains chilled temperatures for self-service dishes using a fan to circulate cold air evenly.

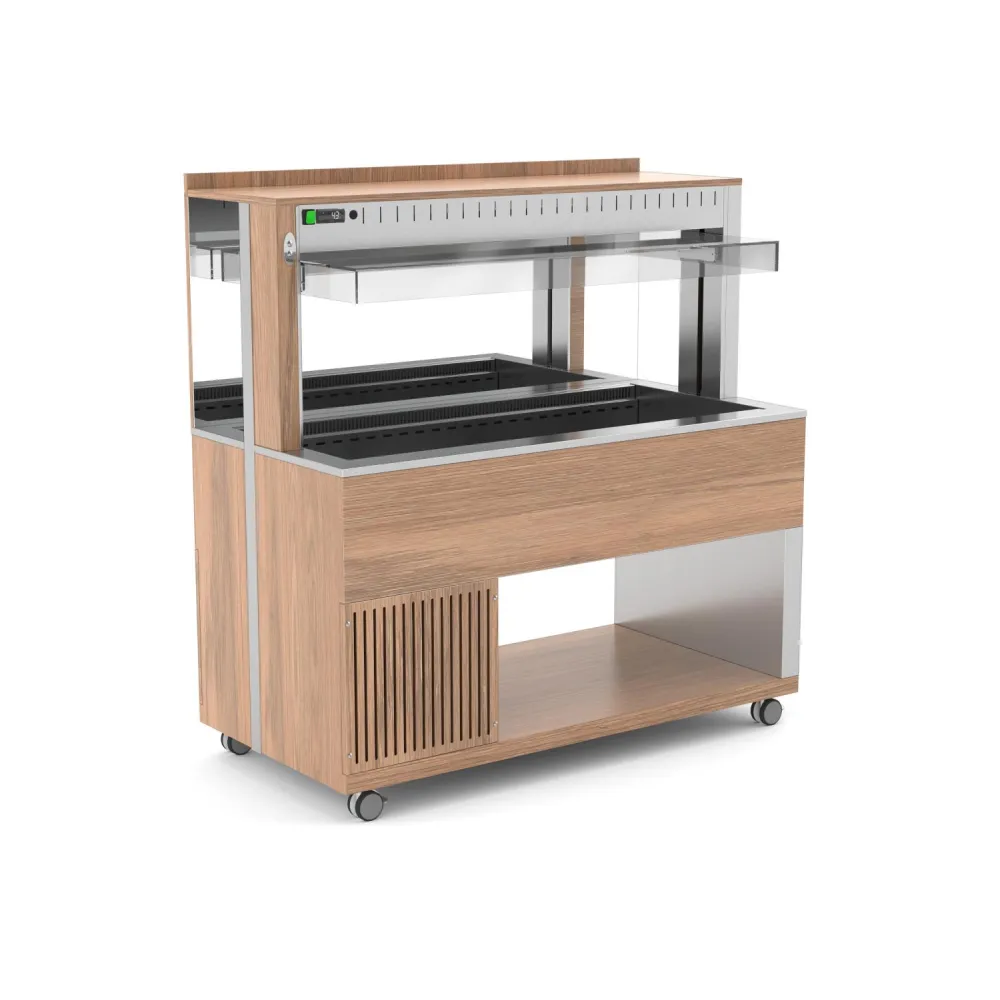

The ROCAM ATHENA 4 RV/M W suits professional environments with its practical design. It holds up to four GN1/1 gastronorm pans in a ventilated well, ensuring uniform cooling. A digital thermostat controls the temperature between +2° and +8°, while LED lighting enhances visibility. The adjustable Plexiglas® sneeze guard protects food without restricting access, and a rear mirror creates an impression of greater depth.
Built with a laminated wood structure, the buffet balances robustness with a refined appearance. The compressor's ventilation grids blend into the woodwork for a seamless look. The unit runs on a 230 V supply, using 0.63 kW to sustain cooling.
Customisation options include foldable dish holders in laminated wood or stainless steel, removable tray slides, reinforced steel castors, and contrasting worktop finishes in Formica. Additional modules, such as intermediate floors or refrigerated compartment niches, can be incorporated to suit specific requirements. The exterior colour can be chosen from finishes like silver, rose, saffron, and anthracite to complement the kitchen's style.
Maintenance is simple with removable parts. The Plexiglas® sneeze guard detaches for cleaning, and laminated wood surfaces can be wiped with standard sanitising solutions. Regular clearing of the refrigerated well and air vents ensures efficient airflow and cooling.
This model accommodates four GN1/1 gastronorm pans with a maximum height of 200 mm. Its 213 kg weight provides stability, while the packing dimensions simplify delivery and installation in confined spaces.
The modular design and adaptable features make it suitable for diverse professional catering setups.
