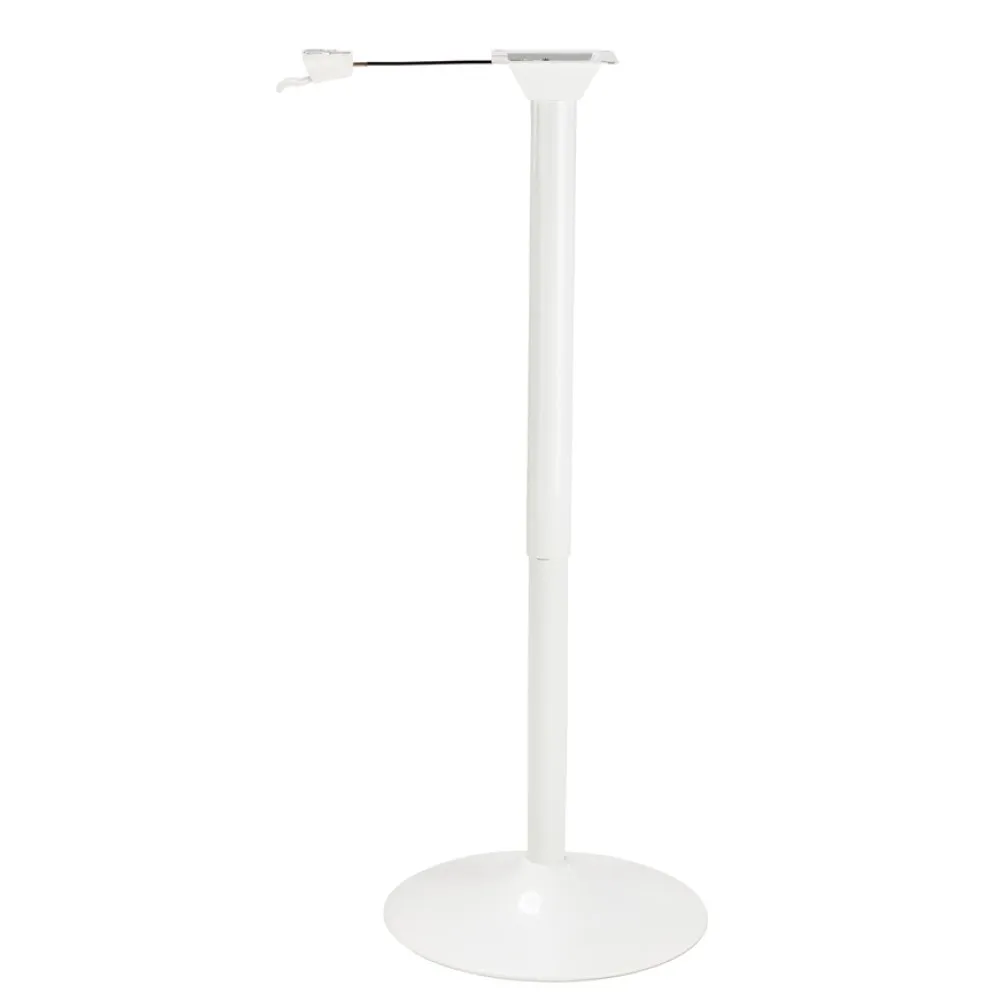

Table base BHS-HoReCa A-15R-800

The A-15R-800 is an adjustable table base designed for use with table tops. This type of base allows for height customisation to suit different user needs and table top sizes.

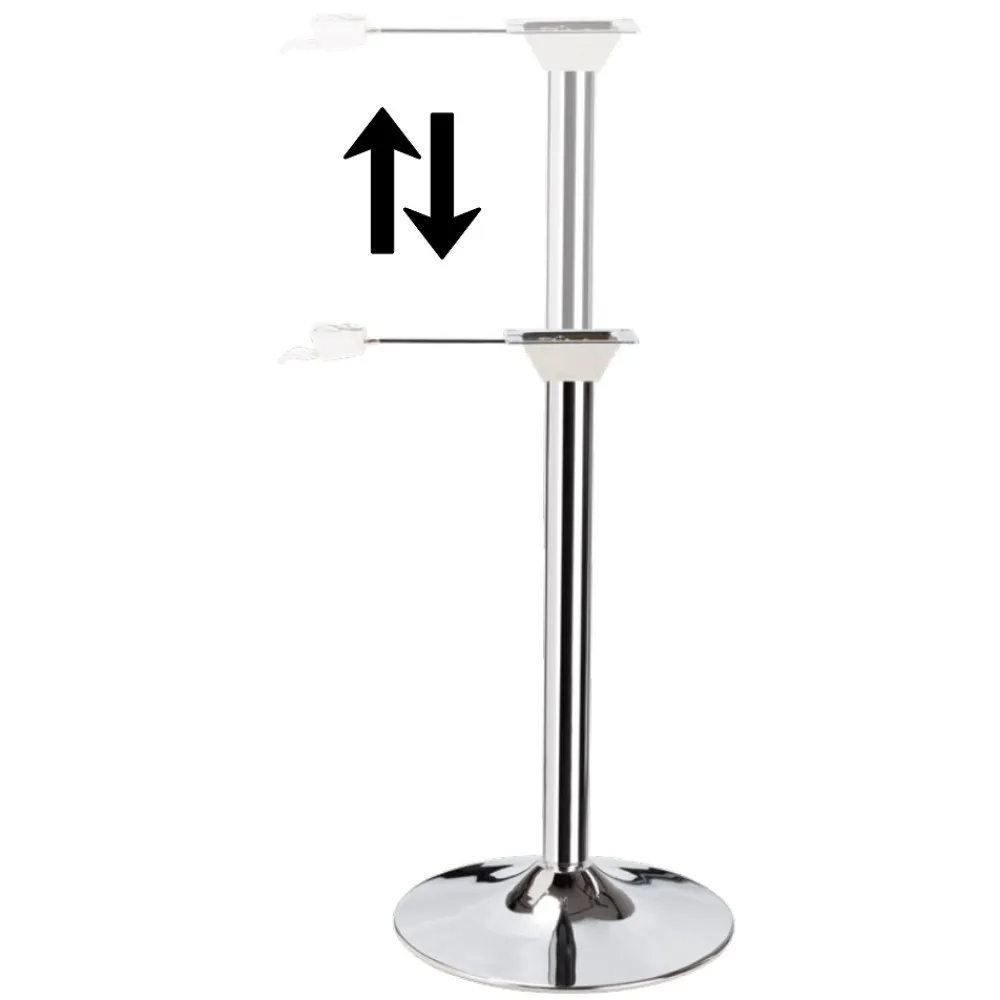

The operating principle involves a telescopic column within the main support structure. By loosening a locking mechanism, the column can be extended or retracted, and then secured at the desired height. This provides a stable foundation for a table top.

Assembly of the A-15R-800 is required by the user. The components provided include the base, the column, a mounting plate, and screws for attaching the table top. The base itself is constructed from steel, with a chrome-plated finish. The mounting plate measures 153 x 153 mm and has a thickness of 2.5 mm. The lower base sheet is available in thicknesses of 1.4 mm or 2.0 mm.

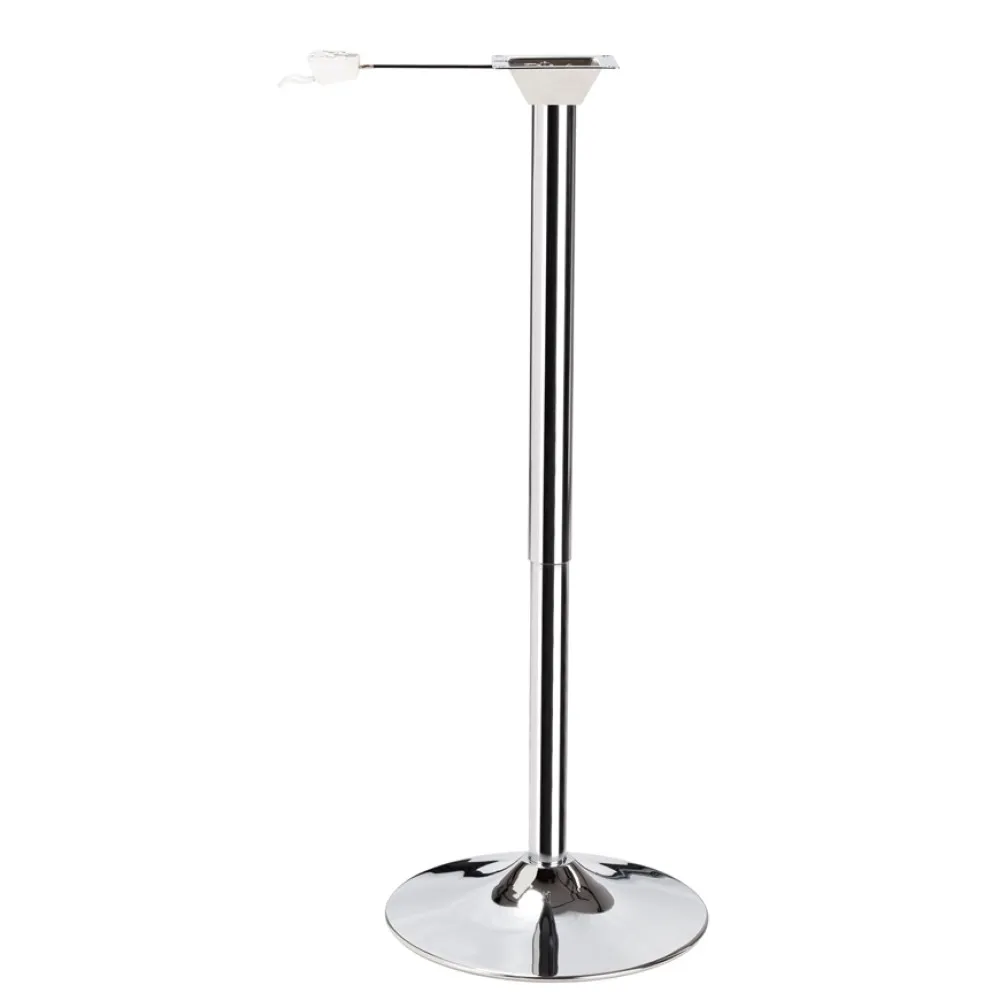

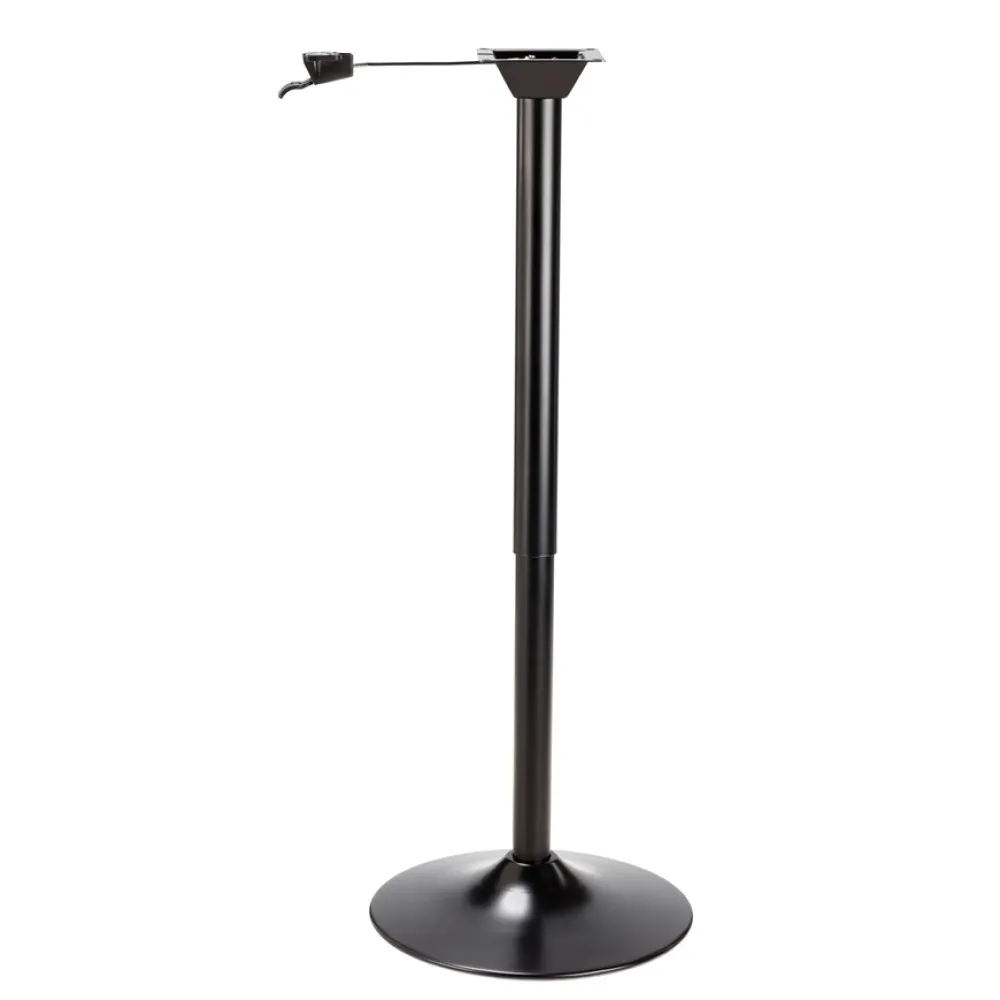

It supports table tops with a maximum diameter of 800 mm. Standard colour options for this base are chrome, black, and white.

The weight of the base is 8.5 kg. This specification indicates the unit's mass, which is a factor in its stability and how it is handled during assembly and placement.

This adjustable table base is listed in the catalogue under HoReCa furniture table bases.
