Name: Professional dishwasher Aristarco AFX3500
Brand: Aristarco
Price: 45603.69 EUR
Availability: InStock

Professional dishwasher Aristarco AFX3500

More from this brand

Quickview

Dishwasher accessory Aristarco 0B005972

363.00€

with VAT: 300.00€

Add to Cart Add to Wish List Compare this Product

Product images are illustrative

Product images are illustrative. The videos in the product description are for informational purposes only, so the information contained in them may differ from the product itself.

Technical data

Attributes
Dimensions (W x D x H)	4500x985x1890/2290 mm
ARTICLE	AFX3500
POWER	24 kW
VOLTAGE	380-415V 3N ~ 50 Hz 35 A
WEIGHT	595 kg
Material	• AISI 304 stainless steel body • Stainless-steel wash and rinse arms
COMPLETION	• Speed of conveyor: 1,23 – 0,65 m/min • Wash pump: 2 kW • Pre-rinse pump: 200 W • Boiler capacity: 2 x 10 liters • Tank capacity: 100 liters • Boiler heating element: 7,5 kW • Tank heating element: 14 kW • Water consumption: 140 liters/hour • Useful washing height: 355 mm • Clearance: 710x450 mm
Additional equipment	OPTIONALS: • Heat recovery (HR) • Shelf dryer (DR) • Module dryer (DRM) • Dryer with blowers (DRMB) • Entry module 2200 mm • Exit module 2700 mm • Neutral zone 600 mm • Machine division • Dosing system • PRS system (rinse at granted temperature/pressure) • Booster pump • Stainless-steel pumps • Triple rinse • Heat/acoustic insulation • Sanitization • HACCP connection • Other electrical supply on demand
NOTES	• Electronic controls with LCD display • Door safety microswitch • Door stop safety system • Automatic filling of water • Hot rinse • Auto-start lever for all work phases • Pressure reducer and pressure gauge • Self-cleaning vertical pump • Automatic and autonomous drainage of the tanks • Non-return valve • Conveyor direction from right to left (EDX) or from left to right (ESX)

Professional dishwasher Aristarco AFX3500

: Aristarco
Article number: AFX3500

Aristarco

- Write a review

Is available

37,689.00€

with VAT: 45,603.69€

Qty

Add to Cart

Buy Now Ask question about this product

Add to Wish List Compare this Product

Technical Data Sheet

Description

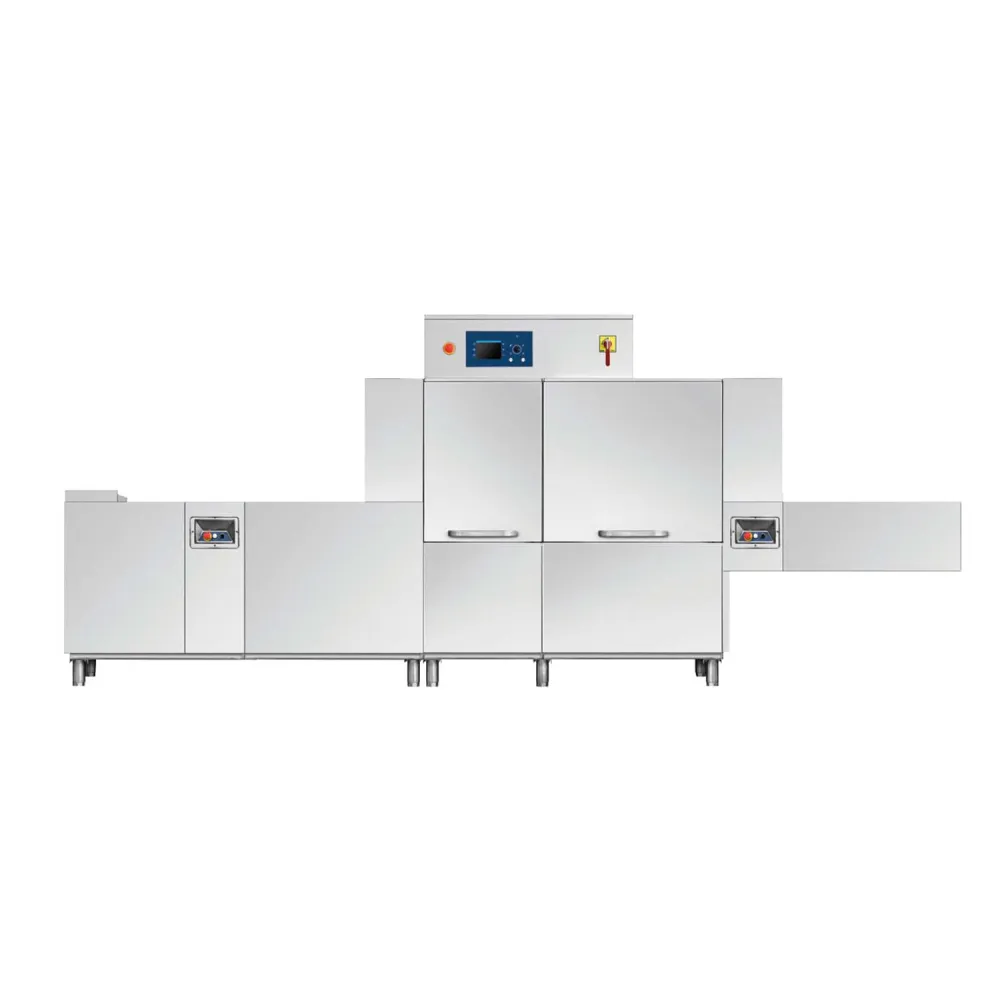

The Aristarco AFX 3500 is an electronic rack conveyor dishwasher designed for professional use. The electronic controls allow for precise management of the wash cycles.

The AFX 3500 is constructed with a body made from AISI 304 stainless steel, offering durability and resistance to corrosion. The tanks are fabricated from AISI 316 stainless steel, featuring rounded corners for ease of cleaning. Both the upper and lower rinse arms are equipped with stainless steel pipes, and the boiler is also constructed from AISI 316 stainless steel. The unit includes a door safety microswitch and a door stop safety system for operational security.

Operation is managed via electronic controls presented on an LCD display. An auto-start lever facilitates the initiation of all work phases. The dishwasher features automatic water and hot rinse filling. It is equipped with a self-cleaning vertical pump and offers automatic, autonomous drainage of the tanks. A non-return valve is incorporated into the system, and a pressure reducer with a pressure gauge is included. The unit requires a water connection.

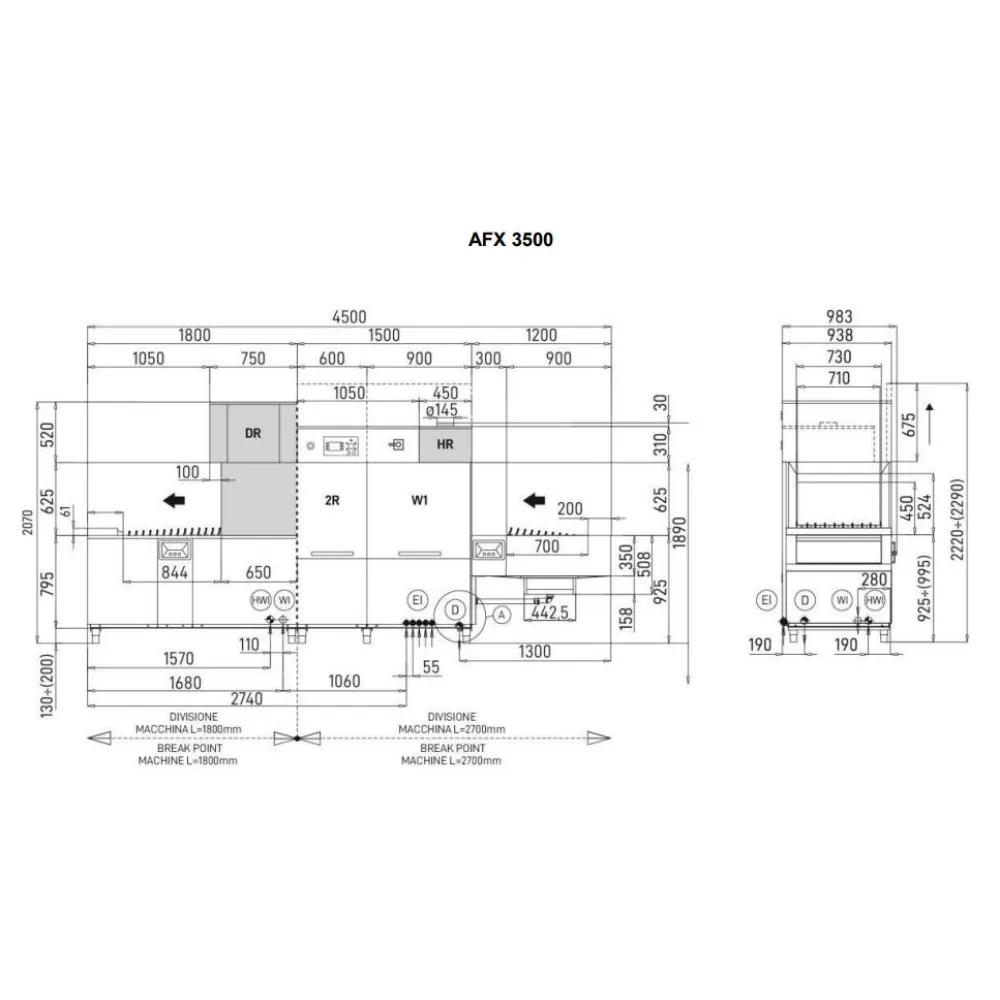

The conveyor direction can be configured either from right to left (EDX) or from left to right (ESX). The internal dimensions measure 710x450 mm. The overall dimensions of the unit are 4500 mm in length, 985 mm in width, and 2290 mm in height. The dishwasher has a weight of 595 kg. It has a power consumption of 24 kW, operating on a 415 V, 3-phase supply requiring 35 amps. The tank volume is 100 litres, with a capacity indicated as 2x10 L.
