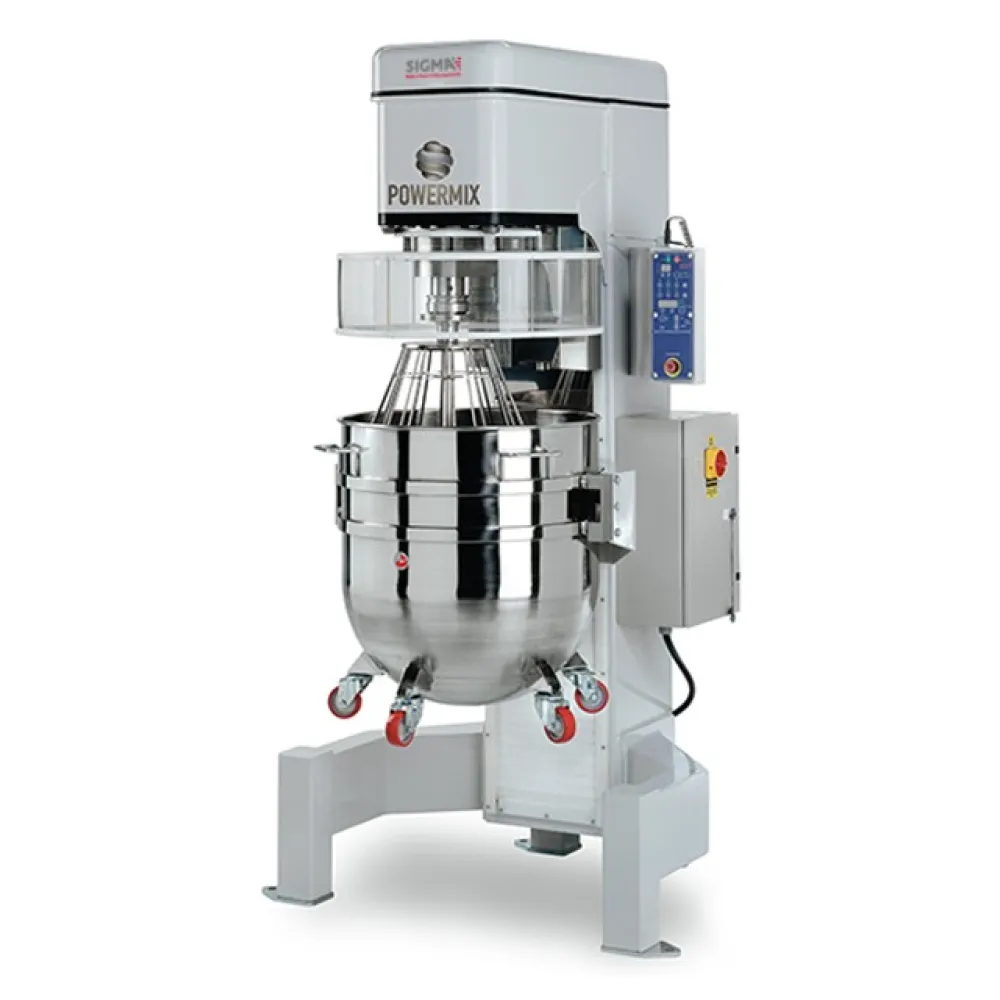

Planetary mixer SIGMA POWERMIX160

A planetary mixer combines a rotating mixing tool with a revolving bowl to fold, whip and knead ingredients evenly without dead spots. The tool moves in a circular path while the bowl turns in the opposite direction, ensuring every part of the mixture is worked. This method gives consistent texture for doughs, batters, creams and fillings, making it essential for bakeries, patisseries and large-scale catering operations.

The SIGMA POWERMIX 160 L follows this principle with a motorised bowl that lifts and lowers on command. The operator loads the 160 L bowl, selects one of five speeds or the pause setting, and starts the cycle. An electronic variator adjusts the tool speed smoothly, while a timer, spiral revolution counter and core-temperature probe monitor the process. The bowl stroke is long enough to let the tool disengage completely at the end of the run, preventing overworking. A pivot guard swings away for quick tool changes between blade, whisk and spiral.

Construction is high-thickness sheet steel with hardened, tempered and straightened gears for durability under continuous load. The control panel is sealed against water ingress and can be programmed for repeat batches. Stainless steel floor legs raise the unit to a comfortable working height. An automatic shutdown feature stops the motor if the guard is opened or the bowl is raised during operation.

The 5.5 kW motor draws a three-phase 400 V supply, typical of heavy-duty catering equipment. At 630 kg, the mixer is moved on a pallet truck or forklift; its 980 mm width and 1115 mm depth fit through standard kitchen doorways. The 160 L bowl capacity allows large batches of dough or batter to be mixed in a single cycle, reducing preparation time in busy kitchens.

Cleaning involves removing the bowl and tools, wiping the sealed control panel with a damp cloth, and rinsing the stainless steel surfaces. The pivot guard and bowl-lifting mechanism are designed for easy access, while the electronic variator requires no manual adjustment or lubrication.

The POWERMIX 160 L is the largest model in the SIGMA planetary mixer range, positioned for high-volume production in commercial bakeries and central production units.
