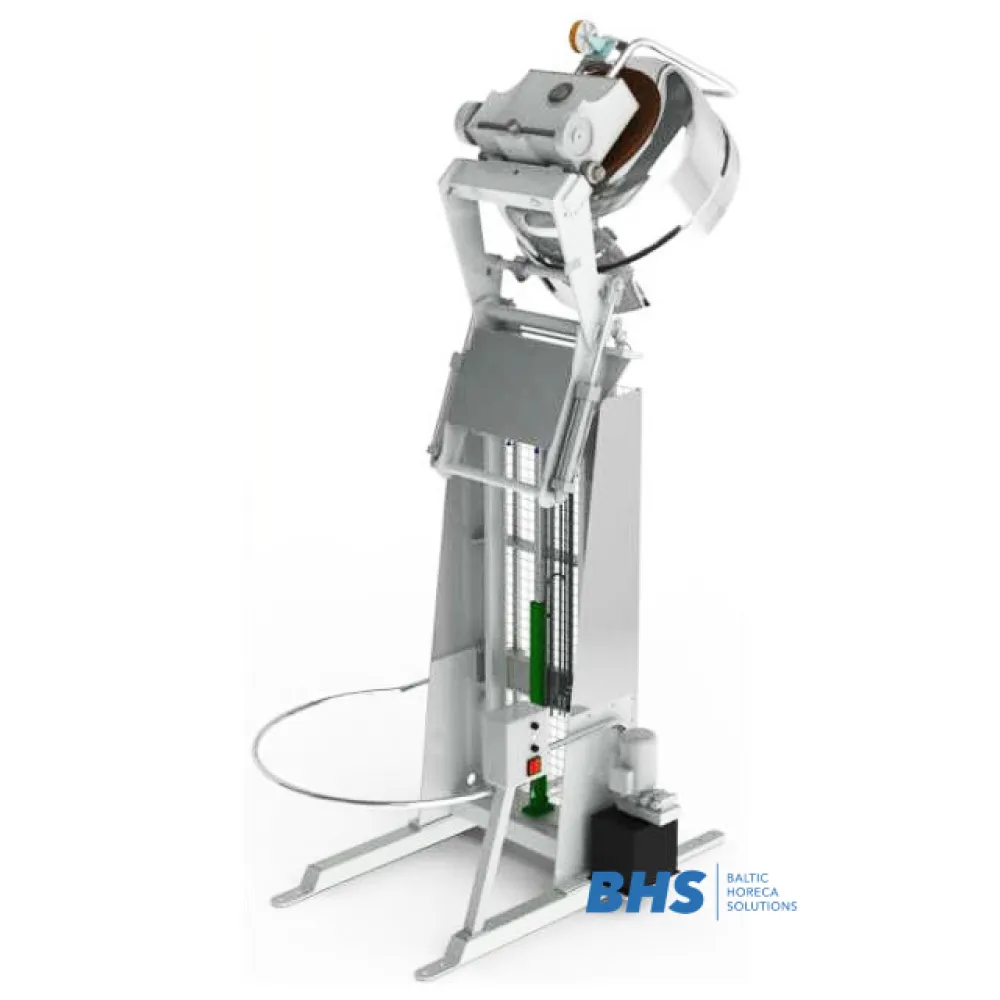

Planetary mixer SIGMA MACISTE-MAX-1900

The SIGMA MACISTE MAX 1900 is a bowl lifter designed for use with planetary mixers. Its primary function is to safely and efficiently lift and position mixing bowls for commercial food preparation.

The operating principle involves a hydraulic system that powers the lifting mechanism. This system allows for controlled ascent and descent of the bowl, with a tilting function for easier emptying. The construction is primarily electrowelded steel, providing a sturdy base for heavy loads. The tracks are galvanised for durability, and the floor support legs are made from stainless steel to resist corrosion.

A safety protection ring is integrated into the design to prevent accidents during operation. The bowl lifting mechanism itself is constructed from stainless steel and has a rated capacity of 600 kg. The hydraulic lifting system enables tilting of the bowl once lifted.

When in use, the distance from the floor to the lower edge of the bowl can be set at either 1.9 metres or 2.6 metres, accommodating different bowl sizes and mixer configurations. The open dimensions of the unit are 2400 mm in length, 1500 mm in width, and 3400 mm in height. When closed, its dimensions are 2400 mm length, 1540 mm width, and 2050 mm height.

The power requirement for the SIGMA MACISTE MAX 1900 is 2.2 kW, operating on a 400 V, 3-phase electrical supply. The unit weighs 740 kg, indicating a substantial and stable piece of equipment. This product is listed under electromechanical equipment and planetary mixers in the catalogue.

Cleaning and upkeep should focus on the materials specified: maintaining the electrowelded steel, galvanised tracks, and stainless steel components. The hydraulic system will require periodic checks as per standard maintenance procedures for such equipment.
