Meat grinder, bone saw SAVIOLI 380T

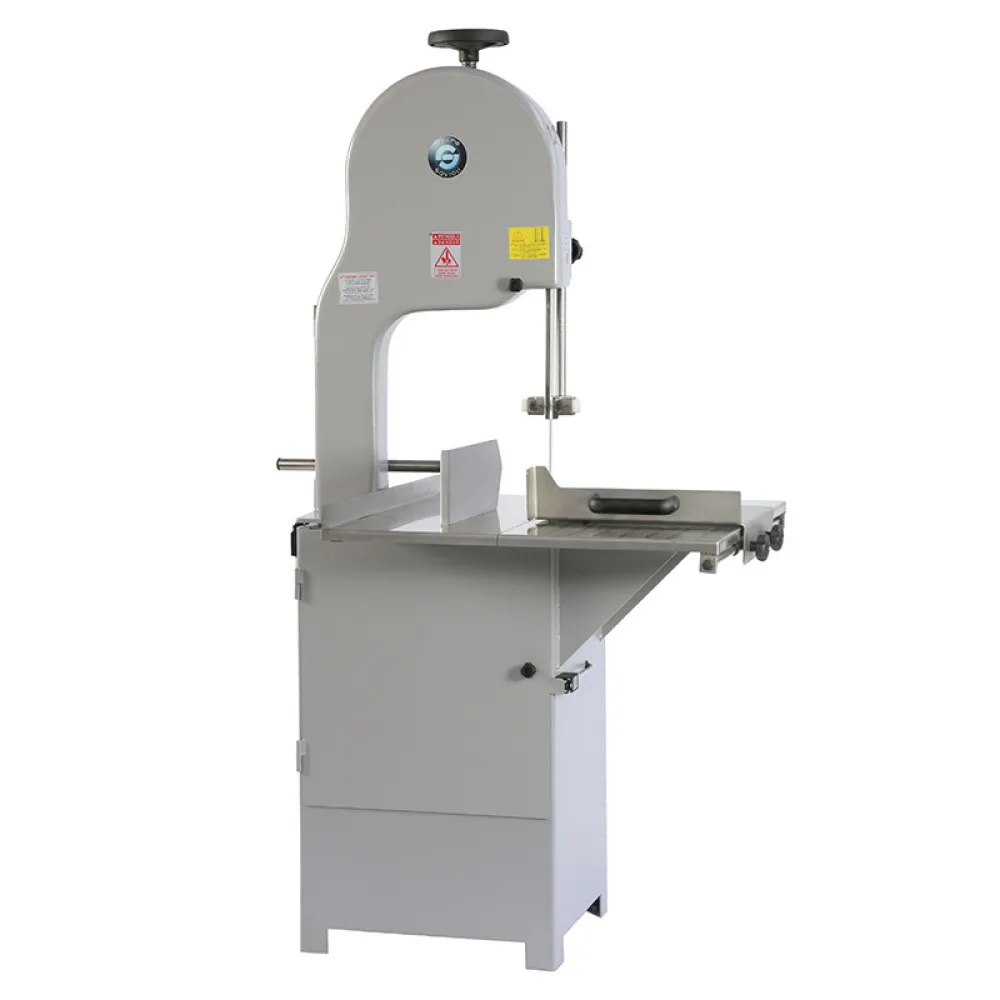

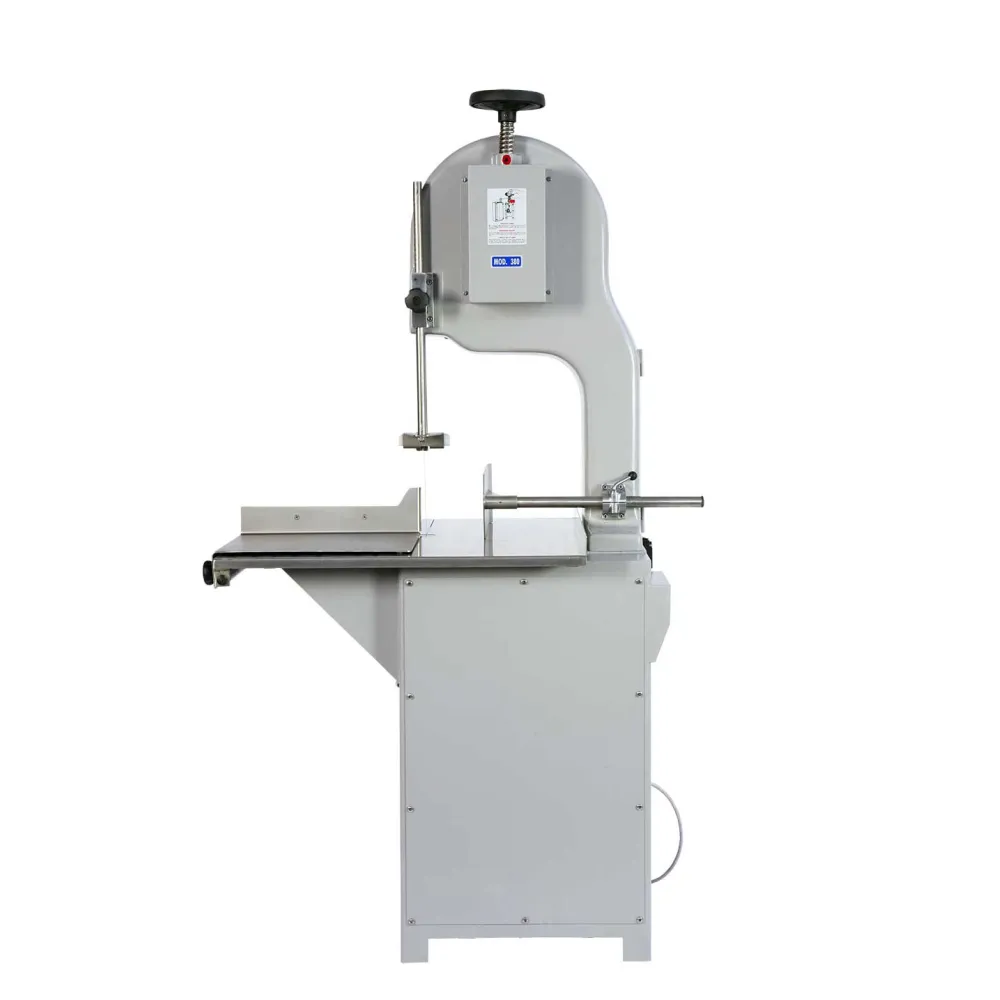

The SAVIOLI 380T is a bandsaw.

A bandsaw uses a continuous metal blade moving between wheels, driven by an electric motor. The motor turns the wheels, pulling the blade through the material. Blade speed is controlled by motor revolutions per minute for precise cutting. Wheel system maintains critical blade tension for accuracy.

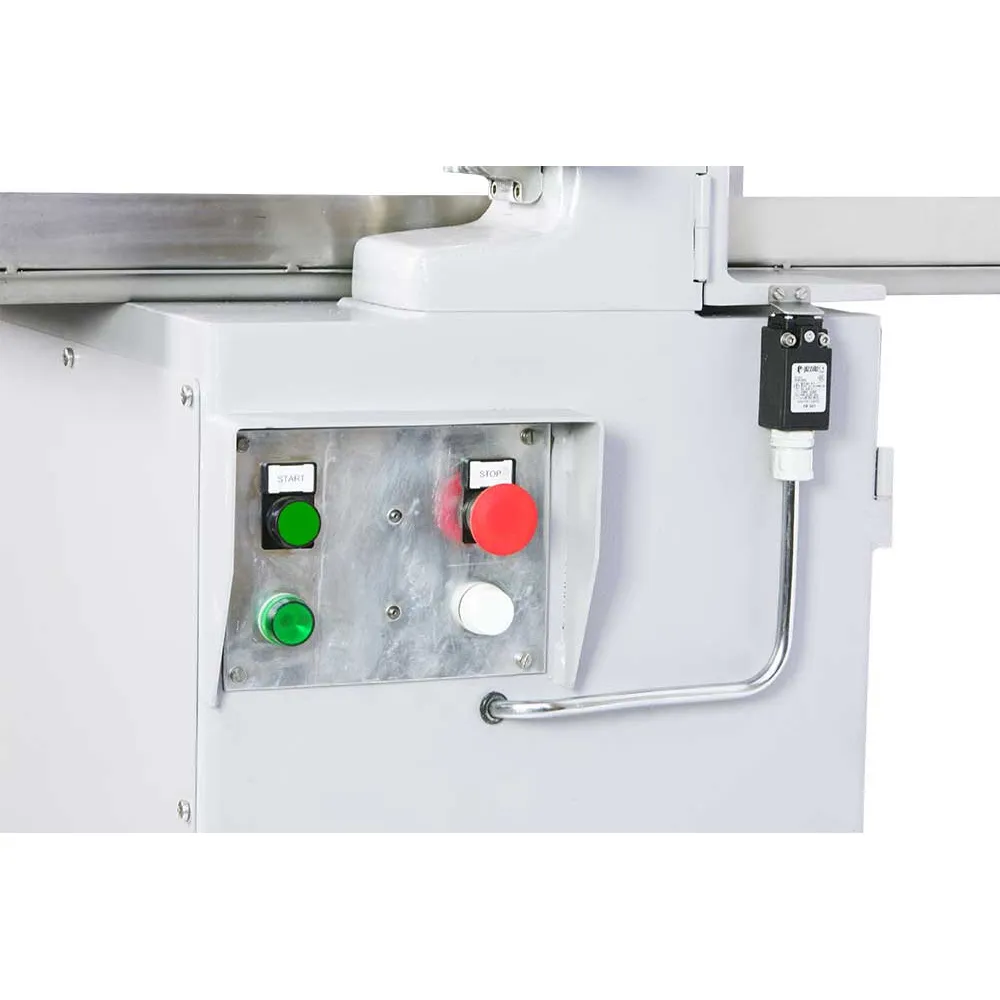

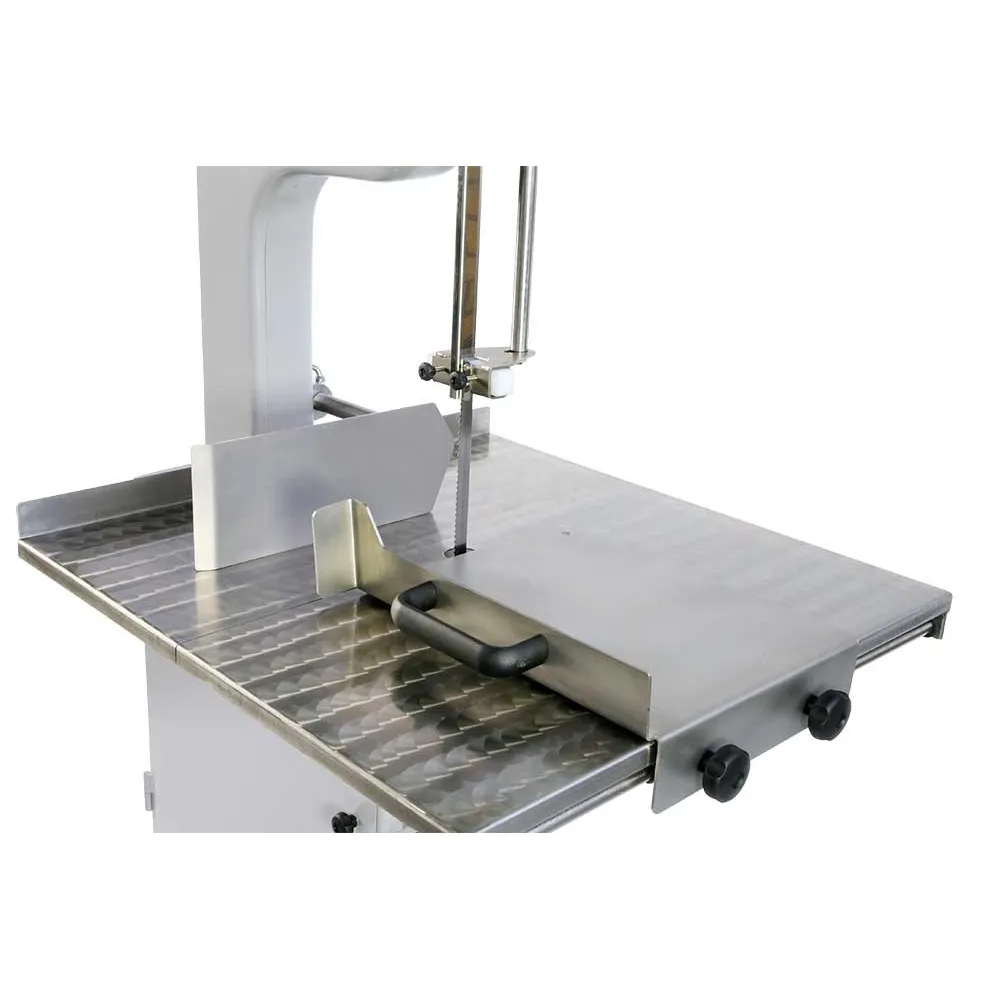

To operate, position material on the work surface against the blade. The adjustable blade guide keeps the blade stable. Blade protection covers the exposed blade, and a door microswitch stops the machine if opened during use. The electrical panel is low voltage (24 V) for safety.

Construction includes a painted aluminium head and a painted iron crankcase. The work surface, sliding part, and portioning device are stainless steel Aisi 304 for corrosion resistance and easy cleaning. Blade protection is also stainless steel. The blade length is 2940 mm.

The bandsaw has a power rating of 2.2 kW and operates at 2800 rpm. Dimensions are 980 mm length, 750 mm width, and 1800 mm height. It requires a 400 V electrical supply and weighs 171 kg.

Cleaning should focus on stainless steel parts like the work surface and sliding part for hygiene. Keep the adjustable blade guide and blade protection clean for best performance.

This bandsaw is listed in the catalogue with electromechanical equipment, meat grinders, and bone saws.
