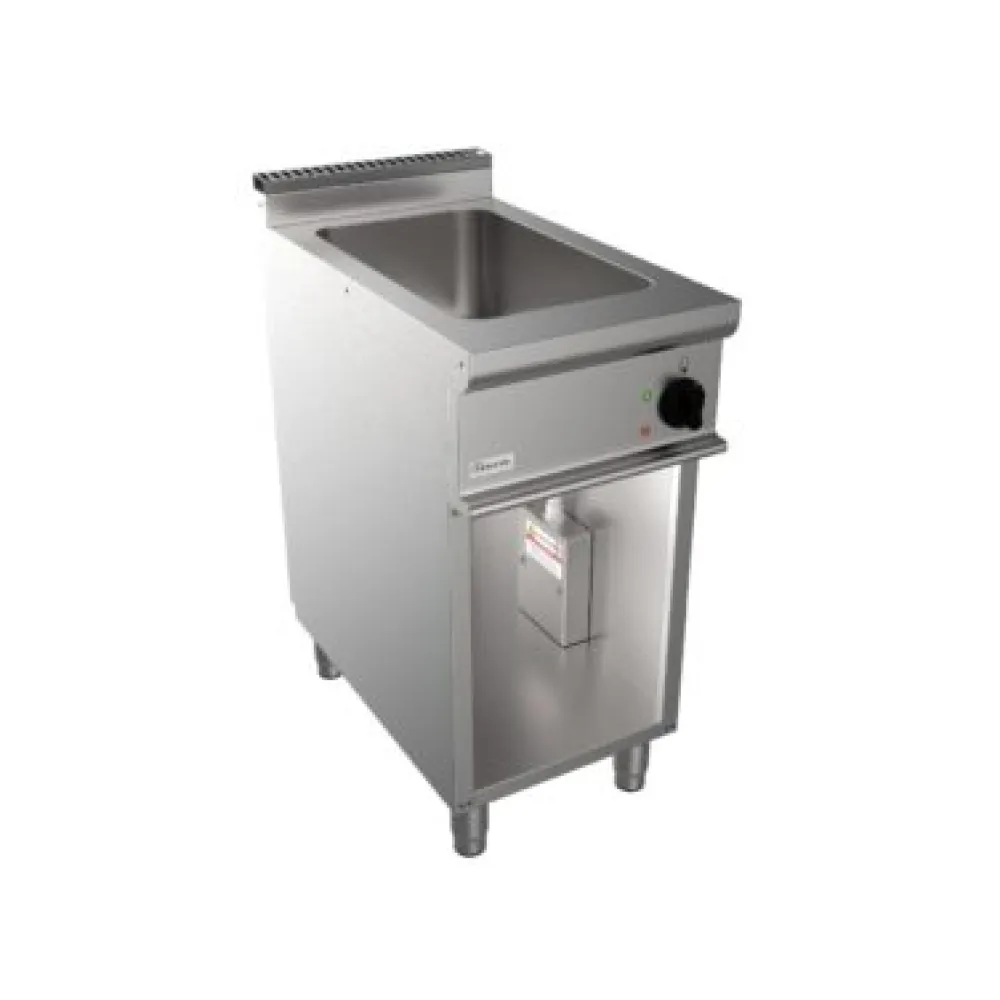

Hot bain-marie with neutral cabinet CASTA E7/KME1BA

The CASTA E7/KME1BA is a hot bain-marie with an integrated neutral cabinet. This unit is configured to accept GN 1/1 gastronorm containers with a depth of 200 mm.

A bain-marie operates by heating water in a tank, which then surrounds the food containers to keep them at a consistent, warm temperature. This method gently heats food without direct contact with a heating element, preventing scorching and maintaining texture. In this model, sheathed heating elements are positioned externally to the water tank for heat transfer and ease of maintenance.

Operation involves filling the tank with water, typically up to a designated level. The water is then heated to the desired temperature, which can be set between 30 °C and 90 °C using the thermostat control. An overflow pipe within the tank manages excess water. For user convenience, a water filling tap and a drainage tap are accessible within the lower cabinet compartment.

The control panel provides visual feedback with a general operation indicator light and a separate warning light to show when the heating elements are active. A safety thermostat is incorporated to prevent overheating, cutting off power if the temperature exceeds the set maximum of 90 °C.

Constructed with adjustable legs made from AISI 304 stainless steel, the unit offers stability and durability. The power consumption is rated at 1.5 kW, operating on a 230 V supply. Its dimensions are 400 mm in length, 700 mm in width, and 850 mm in height.

Gastronorm containers and lids are not included with this appliance. Cleaning involves the accessible taps for draining and refilling the water tank. The catalogue places this appliance within canteen modular systems and hot bain-maries with neutral cabinets.
