Hood-Type Dishwasher KASTEL HK1200EPRS

The KASTEL HK 1200 E PRS is a professional dome dishwasher designed for commercial use. Its operating principle involves a hood that is lifted and lowered over a rack of dishes. Once the hood is closed, a wash cycle begins, spraying hot water and detergent onto the dishes. This is followed by a rinse cycle using hot water to remove any remaining detergent and sanitise the items. The dome design allows for larger items to be washed and streamlines the loading and unloading process.

The sequence of use begins with placing dirty dishes onto one of the two supplied 500x500 mm racks, which can hold between twelve to eighteen plates. A 500x500 mm glass rack and two cutlery baskets are also provided. The rack is then positioned inside the dishwasher, and the hood is lowered. The HK 1200 E PRS features electronic control with an LCD display for setting the washing programme. The washing cycle can be set to 60, 120, 180, or 9 seconds. The dishwasher can process 60, 30, 20, or 7 baskets per hour, depending on the selected cycle. The washing cycle can commence automatically once the hood is closed, thanks to a magnetic hood microswitch.

Construction includes stainless steel wash and rinse arms. It features a triple water filtration system and a vertical self-cleaning pump. The PRS system is integrated, along with a double electric dispenser for detergent and rinse aid. Automatic water filling is standard. The Thermostop system provides hot rinsing, and a Green function is included to save energy. A self-cleaning cycle operates at the end of the day.

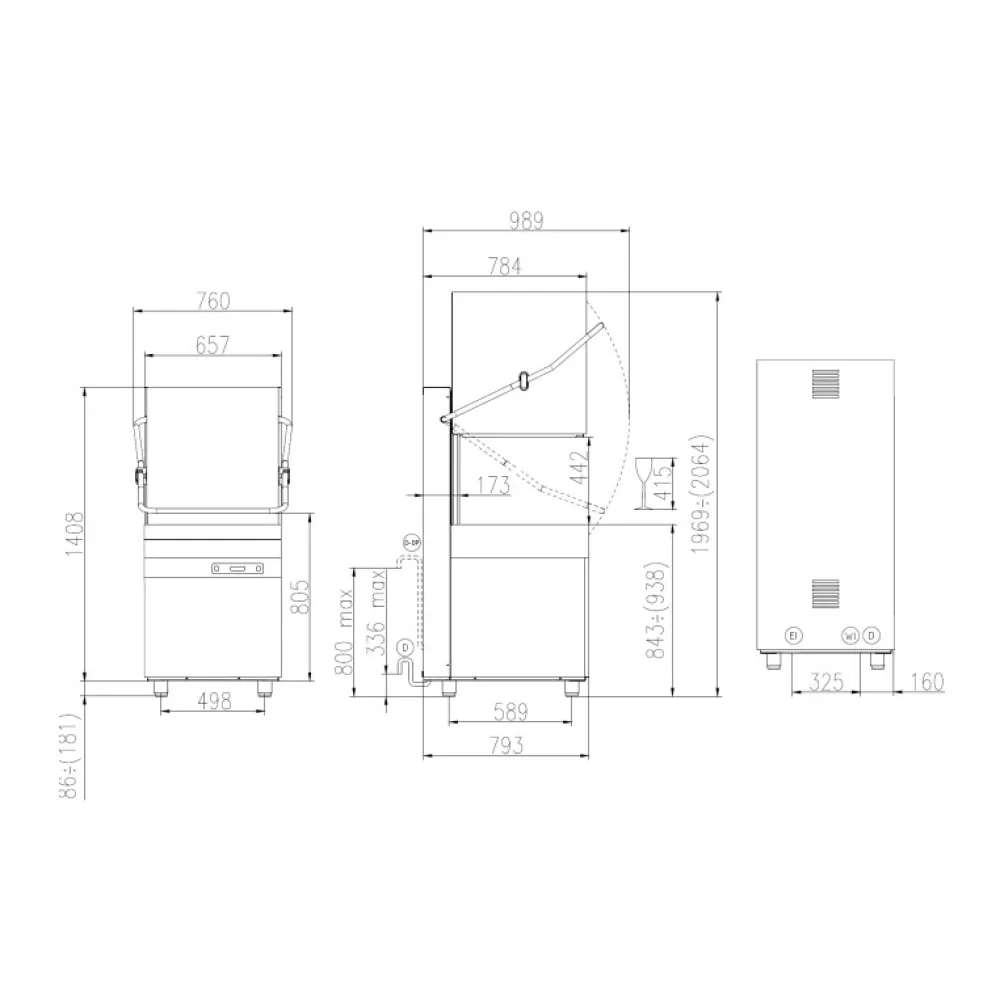

The power requirement for this unit is 7 kW, operating on a 400 V supply. Its dimensions are 760 mm in length, 793 mm in width, and 1494 mm in height. The unit weighs 147 kg. The basket size accommodates 500x500 mm racks. The maximum washing height is 415 mm. The boiler has a volume of 11 litres, and the tank holds 30 litres. Each wash cycle uses 2.5 litres of water.

Cleaning is aided by the self-cleaning pump and the end-of-day self-cleaning cycle. The triple water filtration system helps maintain water quality. The catalogue lists this product under professional dishwashers and hood dishwashers.
