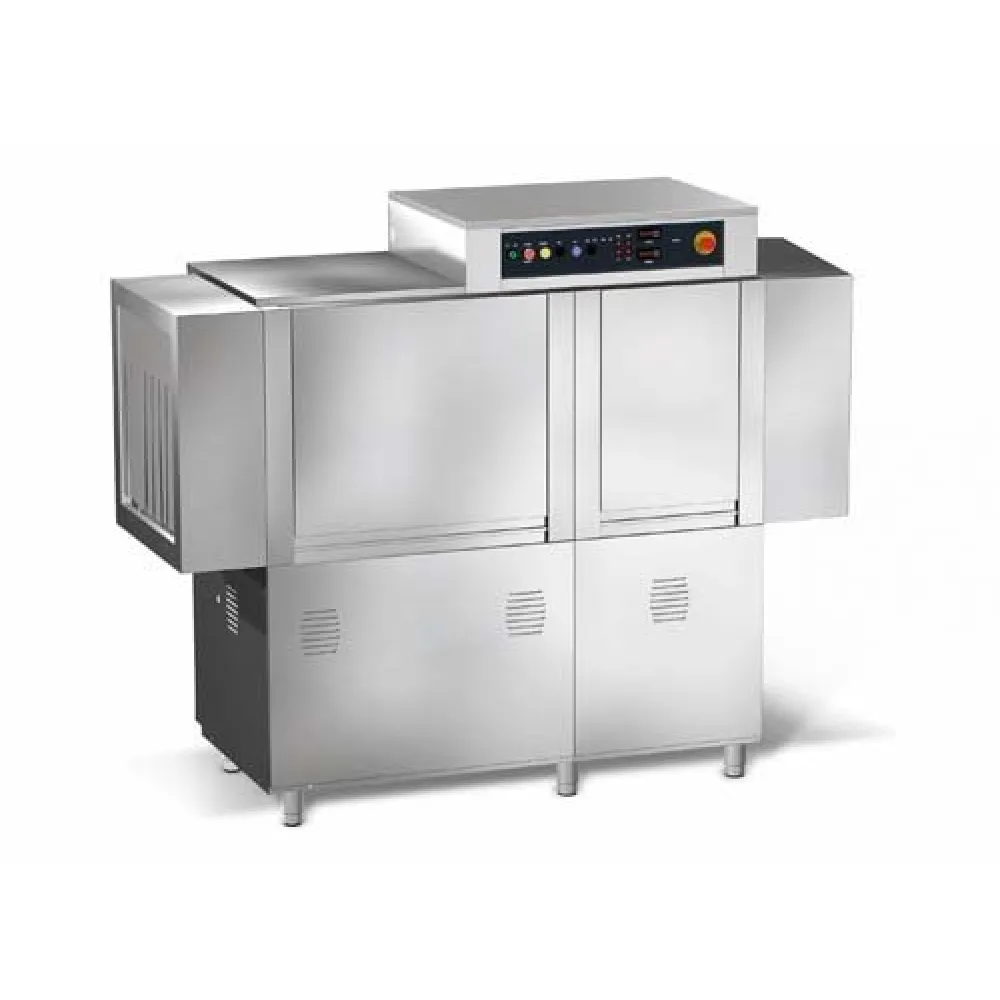

Conveyor dishwasher KASTEL RKR2500

The KASTEL RKR2500 is an electromechanical conveyor type dishwasher designed for professional use. This machine handles standard 50 x 50 cm baskets, offering a washing capacity ranging from 105 to 170 baskets per hour.

The operating principle of a conveyor type dishwasher involves the continuous movement of baskets through distinct washing and rinsing zones. As baskets are loaded onto the conveyor, they are automatically advanced through a high-temperature wash cycle, followed by a rinse cycle. This method provides consistent cleaning and disinfection for large volumes of dishes, glassware, and cutlery.

The RKR2500 features stainless steel washing and rinsing arms, designed for effective water distribution. A double water filtration system is incorporated to maintain water quality during the wash cycles. The unit is equipped with electromechanical controls for operation. For user safety, it includes a magnetic door microswitch and a door stop safety system. A non-return valve prevents backflow of water.

Maintenance is aided by a self-cleaning vertical pump. The dishwasher also features automatic water filling and a hot rinse function for thorough disinfection. A built-in economizer is included to help optimise water and energy usage.

The washing height within the machine is 470 mm. The overall dimensions of the unit are 2000 mm in length, 770 mm in width, and 1710 mm in height. The appliance has a power requirement of 29.85 kW and operates on a 400 V electrical supply. Its weight is 330 kg.

Included with the dishwasher are two plate baskets (500x500 mm), one glass basket (500x500 mm), and one cutlery basket with 8 partitions. Connection accessories include a 1.5-metre inlet hose with a 3/4” G connection and a 2-metre drain hose with an internal diameter of 29 mm.

This appliance is listed in the catalogue under professional dishwashers and tunnel dishwashers.
