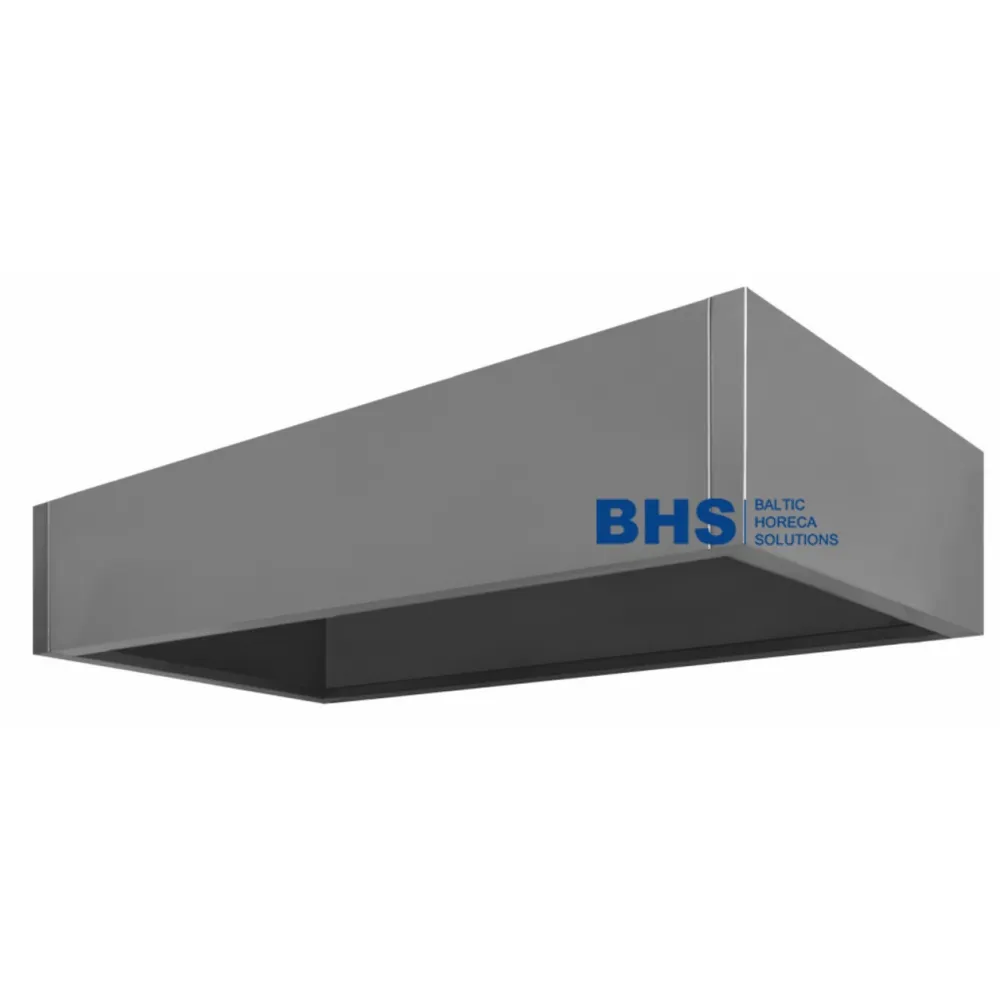

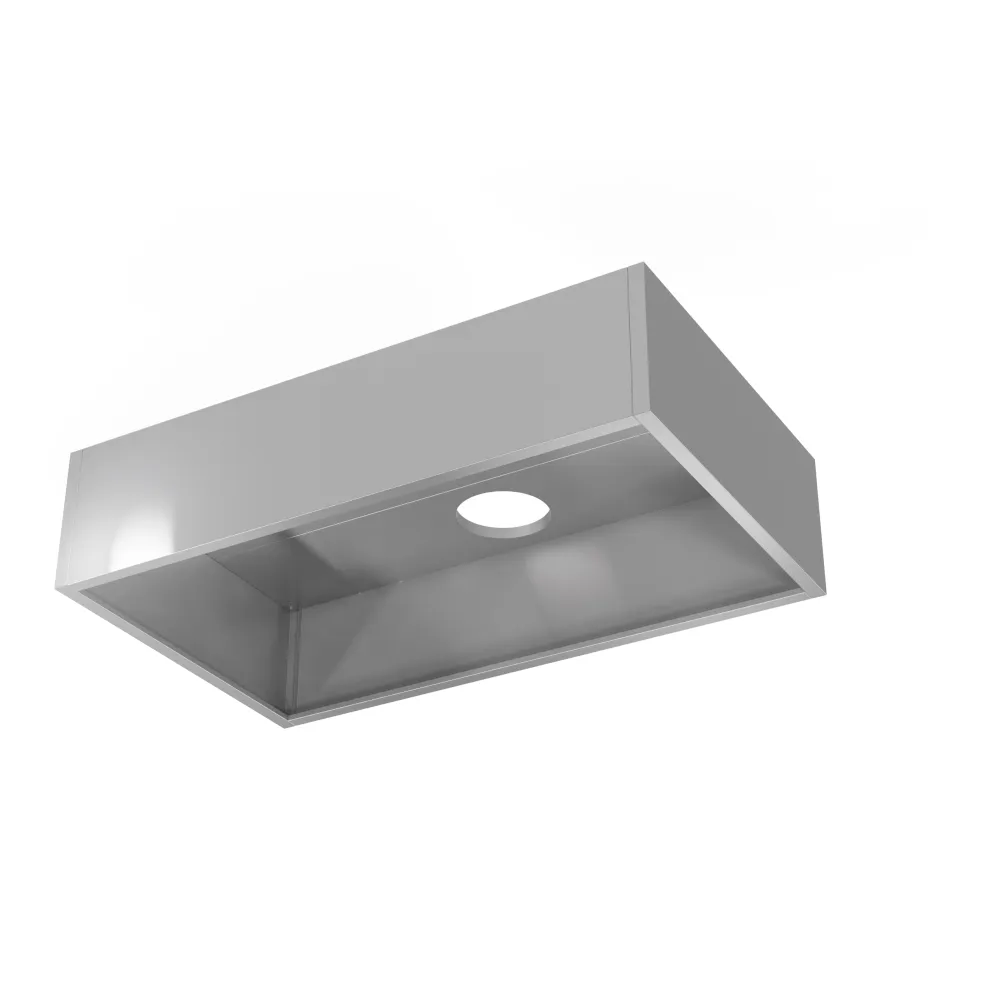

Heat and steam hood without filters Novameta HNPDC-60-70-48

A heat and fume hood extracts steam, heat and airborne moisture directly from the air above combi ovens, steam cabinets and dishwashing stations. Instead of relying on filters to trap grease, the hood draws the humid air through a smooth stainless-steel duct and expels it outside. This method keeps the extraction path clear, reduces maintenance and prevents grease build-up that can become a fire hazard in high-temperature environments.

The operator positions the hood over the heat source, connects the 315 mm exhaust collar to the kitchen's ventilation system, and switches on the built-in LED lighting. An adjustable damper in the exhaust duct controls the airflow rate, allowing the system to match the volume of steam produced. A removable grease tray beneath the intake collects any residual droplets, while decorative cover panels conceal the ductwork for a clean appearance. When multiple hoods are installed side by side, a dedicated connection allows them to share a single exhaust run, simplifying the overall ventilation layout.

Constructed from AISI 304 stainless steel, the hood resists corrosion and withstands the high humidity typical of professional kitchens. The exterior can be finished in a powder-coated colour to complement the kitchen's decor. LED lighting rated IP65 provides bright, energy-efficient illumination that is protected against water ingress, making it safe for use in wet areas. A light switch on the hood allows staff to control the lighting independently of the extraction system.

The hood measures 600 mm deep, 700 mm wide and 480 mm high, fitting above standard worktops and under typical overhead cupboards. The 315 mm exhaust collar connects to ducting that carries the humid air outside, while the IP65-rated lighting ensures visibility without compromising safety. The adjustable damper allows the airflow to be fine-tuned to the kitchen's needs, preventing over-extraction that can pull heat from adjacent cooking areas.

Cleaning involves wiping the smooth stainless-steel surfaces with a damp cloth and mild detergent, then removing and washing the grease tray. The LED lighting requires no maintenance beyond occasional dusting, and the powder-coated exterior resists stains and fingerprints. The hood is available in wider variants—900 mm, 1000 mm, 1100 mm, 1200 mm and 1300 mm—each increasing in price incrementally to match the additional material and capacity.

Designed for use in professional kitchens, the HNPDC-60-70-48 hood is categorised under ventilation equipment for heat and steam extraction.
