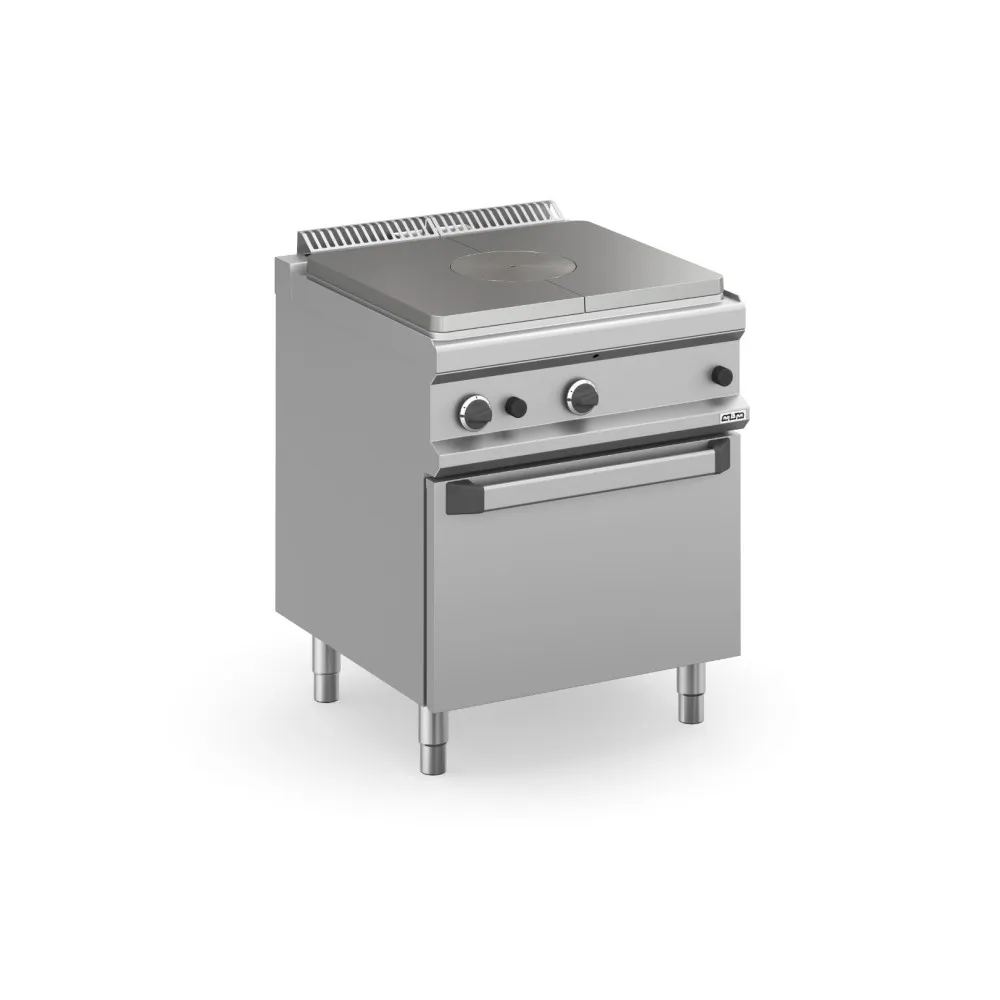

Gas stove with oven MBM MTPG77FG

The MBM MAGISTRA PLUS 700 is a gas stove with an integrated oven, identified by the article number MTPG77FG. This appliance is designed for professional kitchen use.

The operating principle of a gas stove involves direct heat transfer from gas burners to the cooking surface and the oven cavity. The hob features a cast iron cooking plate, which retains and distributes heat evenly from the gas burner beneath it. The oven uses a gas burner to heat its internal chamber, circulating hot air to cook food. Ignition is provided by a piezo-electric system for both the hob burner and the oven burner.

Operation begins with the gas hob. A 9 kW stainless steel burner is situated beneath a removable central ring on the cast iron plate. This burner is controlled by a thermostat and ignited using the piezo-electric system. The oven, powered by a 6 kW burner with a self-stabilising flame, also features thermostatic temperature control. A safety valve and thermocouple are incorporated for safe operation. The oven is equipped with 3 GN 2/1 rack supports for accommodating various dishes. The oven chamber is constructed from stainless steel with an enamelled bottom, and its double-walled door is made of stainless steel with insulating casing.

Construction details include a 1 mm thick AISI 18/10 stainless steel worktop. The hob features a 10 mm thick cast iron plate with a surface area of 40 dm2. The oven's cooking chamber is stainless steel, and its door is double-walled stainless steel with insulation.

Controls consist of piezo-electric ignition for both the hob and oven burners, and thermostatic control for both the hob burner and the oven temperature. The oven also includes a safety valve and thermocouple.

Specifications: The total power rating is 15 kW. The unit measures 700 mm in length, 714 mm in width, and 850 mm in height. Its weight is 116 kg.

Cleaning the stainless steel worktop and the stainless steel oven chamber can be done with appropriate cleaning agents. The removable central ring on the hob facilitates access for cleaning.

This product is listed in the catalogue under gas stoves.
