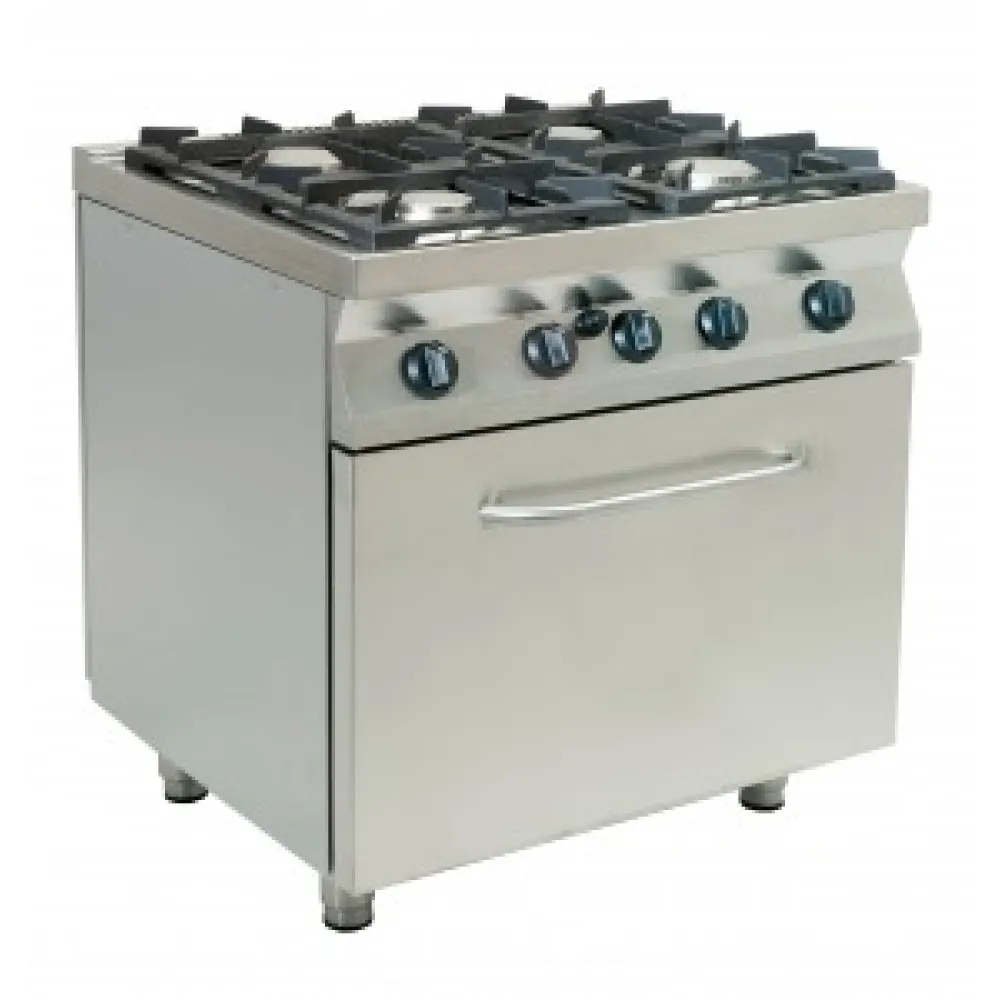

Gas stove with oven CASTA S7/KUG4LO

The CASTA SMART S7/KUG4LO is a gas stove that incorporates a gas oven. This appliance is designed for professional kitchens.

A gas stove operates by supplying gas to open burners on the work surface, which ignite to provide direct heat for cooking. The gas oven below uses a similar gas burner system to heat the oven cavity, with a thermostat to regulate the temperature. The oven itself has a power output of 7.9 kW.

Operation begins with manual ignition of each burner. The control knobs, made from heat-resistant material with cool-grip technology, are used to adjust the gas flow and thus the heat output. The oven is ignited using a piezoelectric system, and its temperature can be set between 50 °C and 300 °C via a thermostatic valve. Each burner is fitted with a gas valve and thermocouple for safety, and the oven also includes a thermocouple and a pilot light.

The work surface is crafted from pressed AISI 304 18/10 stainless steel, 1.0 mm thick, offering a cooking area. The main structure of the appliance is made from AISI 430 stainless steel, 0.8 mm thick. The oven's interior chamber is also AISI 430 stainless steel, while its external housing is FE steel. The oven door is constructed from AISI 430 stainless steel and features a gasket for insulation. The appliance stands on adjustable feet made from AISI 304 18/10 stainless steel, allowing for levelling on uneven surfaces.

The controls consist of heat-resistant knobs with cool-grip technology for the burners and oven. The oven temperature is set using a thermostatic gas valve, adjustable from 50 °C to 300 °C. The 7.9 kW power rating for the oven indicates the rate at which it consumes gas to produce heat. The dimensions of the appliance are 800 mm in length, 700 mm in width, and 850 mm in height, defining its footprint on the kitchen floor or worktop.

Cleaning involves maintaining the stainless steel surfaces and cast iron grates.

This model is listed in catalogues under gas stoves and gas stoves with ovens.
