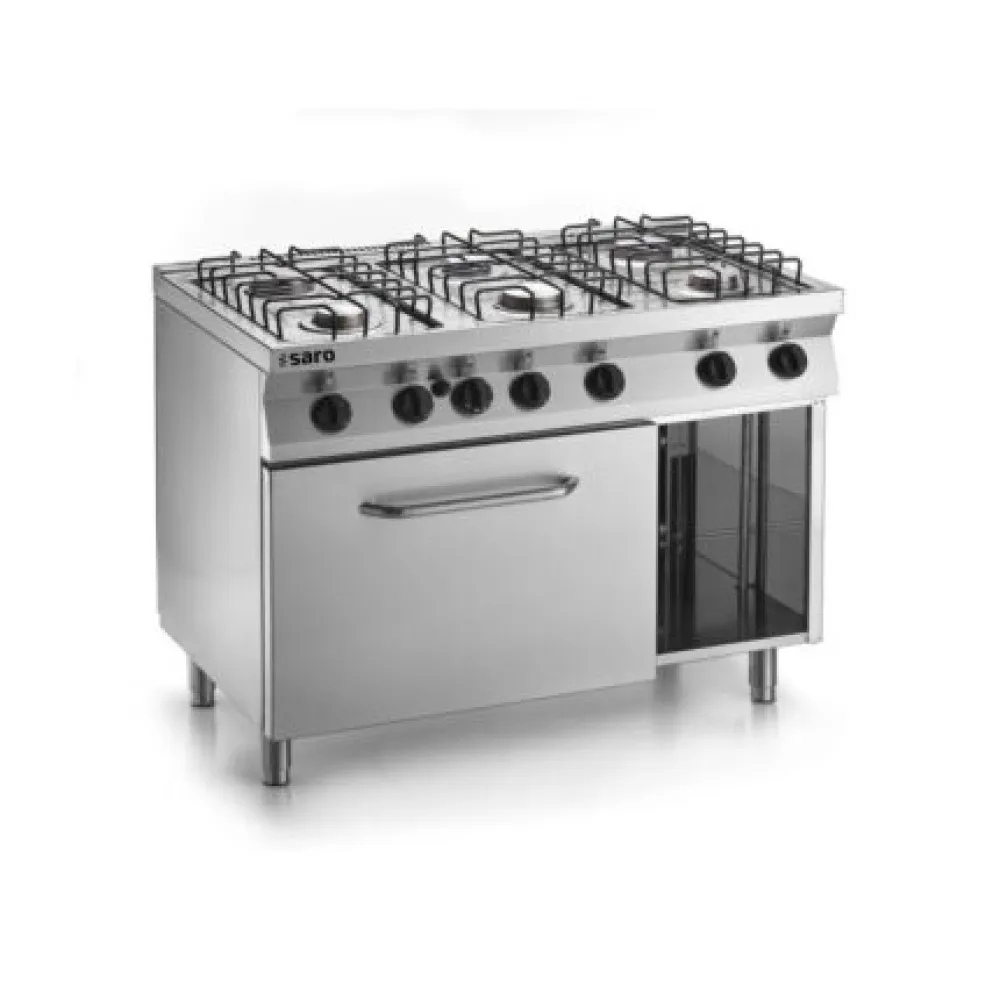

Gas stove with oven CASTA F7/FUG6LN

The CASTA F7/FUG6LN is a gas stove that incorporates a gas oven. This appliance is designed for professional kitchen use.

The operating principle of a gas stove involves open burners that produce a direct flame for cooking. The heat generated is transferred to cookware placed on the grates above. The gas oven operates by circulating hot air, heated by a gas burner, within an enclosed chamber to cook food. This method allows for even cooking and baking.

To operate the stove, place cookware on the black enamelled cast iron grates above the 6 open-type chrome-plated burners. Ignition is manual. The control knobs, made of heat-resistant material with cool-grip technology, are used to adjust the gas flow to the burners. The gas oven can be operated by setting the temperature using its controls, which range from 50 °C to 300 °C. The oven features a safety and thermostatic gas valve, thermocouple, pilot light, and piezoelectric ignition for controlled operation.

The work surface of the stove is constructed from pressed AISI 304 18/10 stainless steel, 1.0 mm thick. The main structure of the appliance is made from AISI 430 stainless steel, 0.8 mm thick. The oven chamber is also made of AISI 430 stainless steel, with a structural housing of FE steel. The oven door is constructed of AISI 430 stainless steel and includes a door gasket for a seal. The appliance stands on adjustable feet made of AISI 304 18/10 stainless steel.

Controls include knobs for burner and oven operation. The oven temperature is adjustable from 50 °C to 300 °C.

The power rating for the burners includes options of 3.5 kW and 6.0 kW. The gas oven has a power output of 7.9 kW. The overall dimensions of the appliance are 1200 mm in length, 700 mm in width, and 850 mm in height.

Cleaning of the stainless steel surfaces can be carried out using appropriate cleaning agents for stainless steel. The oven interior and door gasket should also be cleaned regularly.

This model is listed in the catalogue for gas stove with oven applications.
