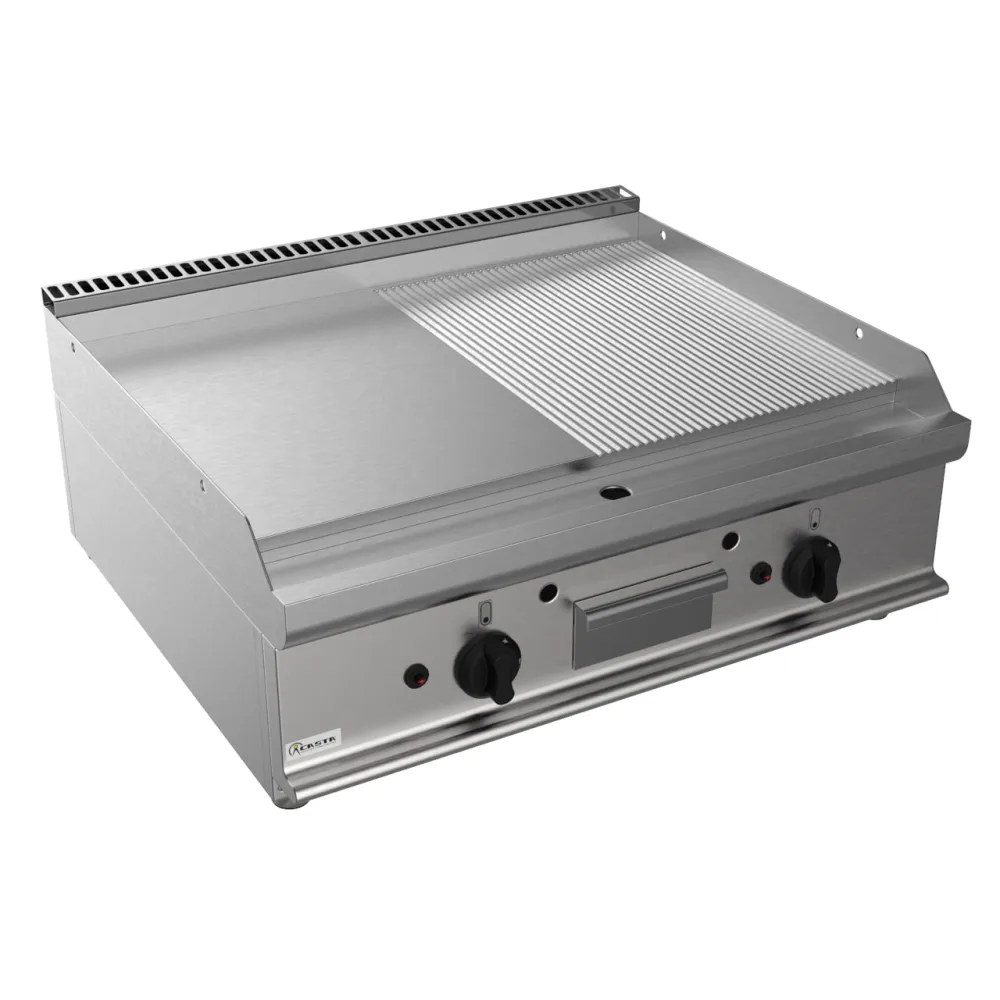

Gas griddle CASTA P7/KTG2BBMK

The CASTA P7/KTG2BBMK is a gas griddle with a ribbed and smooth cooking surface.

The operating principle of a gas griddle involves direct heat transfer from gas burners to a cooking plate. In this model, high-efficiency gas burners with two flame tubes generate heat, which is then conducted through a 15 mm thick steel plate. This plate allows for cooking different food types simultaneously.

To use the griddle, the gas supply is connected and the piezoelectric ignition is used to light the burners. The user can then adjust the heat output using the controls to achieve the desired cooking temperature. Food is placed directly onto the hot plate. A rear flue chimney directs exhaust gases away. A gas safety valve and thermocouple are fitted for safe operation. Grease and food debris are channelled towards a drainage hole and collected in a front-mounted drawer.

The griddle is constructed entirely from AISI 304 18/10 stainless steel, featuring a "scotch brite" finish. The worktop is also AISI 304 stainless steel. The cooking area measures 400 mm. The unit has height-adjustable legs, also made of AISI 304 18/10 stainless steel, allowing for levelling on uneven surfaces. The overall dimensions are 800 mm in length, 700 mm in width, and 305 mm in height. The power rating is 12 kW.

Cleaning involves emptying the grease drawer and cleaning the cooking surface and drainage channel. The unit is certified according to safety standards.

This appliance is listed in the catalogue under gas grill tops.
