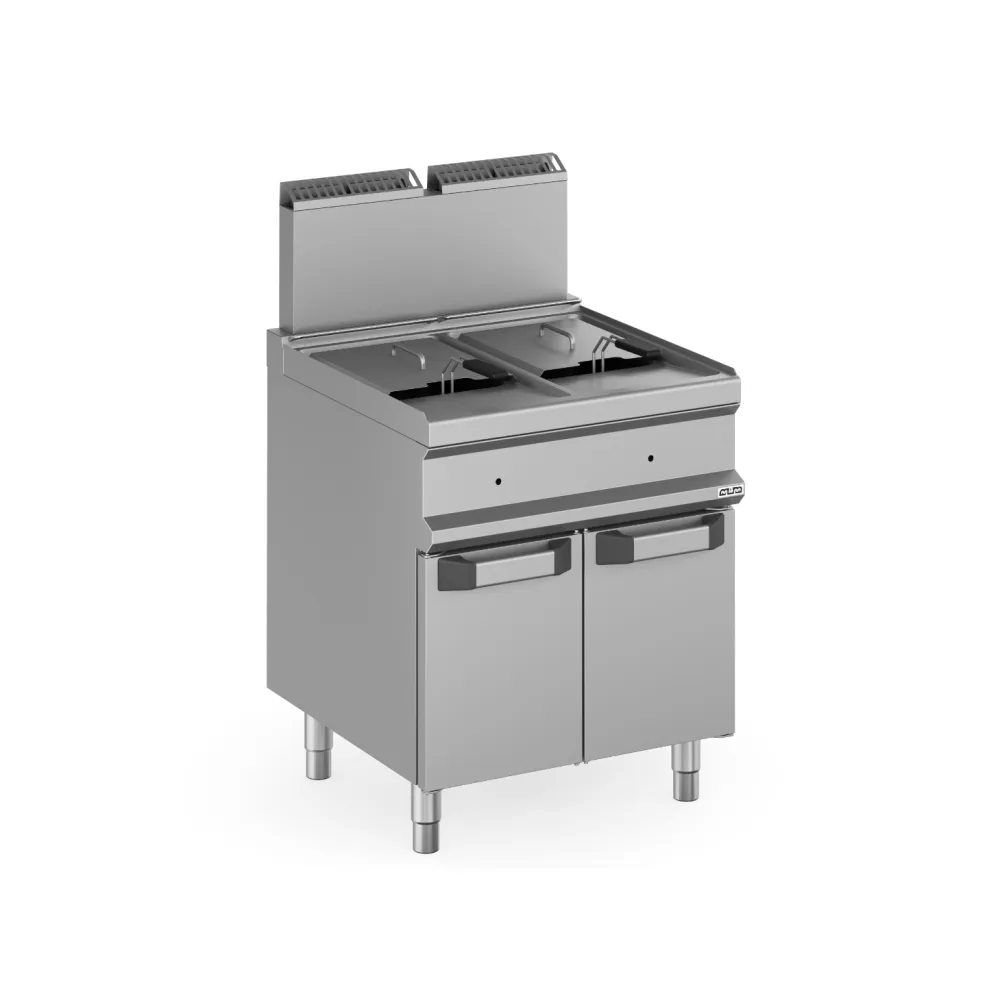

Gas fryer MBM MFRG77A

This MBM MAGISTRA PLUS 700 is a gas fryer, article MFRG77 A. It is designed for professional kitchens.

A gas fryer operates by heating oil within tanks using gas burners. The operator then lowers baskets containing food into the hot oil. The heat from the oil cooks the food. Once cooked, the baskets are lifted out, allowing excess oil to drain back into the tanks.

This unit features two 14-litre tanks. The tanks are constructed from moulded 18/10 AISI 304 stainless steel with continuous welds and rounded corners. The worktop is 1 mm thick AISI 18/10 stainless steel. The gas burner system includes a high-output stainless steel burner with a horizontal flame, a safety valve, and a thermocouple. Ignition is automatic, with a pilot flame and a piezoelectric device.

Controls include thermostatic temperature control, allowing the operator to set the desired oil temperature. A safety thermostat is also fitted. For ease of use, it has a large front drainer and an oil collection tank with a stainless steel filter for the used oil outlet system.

The power rating of 25 kW indicates the rate at which the appliance consumes gas to generate heat. The total volume of 14 + 14 L refers to the capacity of the two cooking tanks. The dimensions are 700 mm in length, 714 mm in width, and 1180 mm in height, defining the unit's footprint and space requirements. The weight of 97 kg indicates the mass of the appliance. The basket size is specified as 2-280x340x300 mm, referring to the dimensions of the frying baskets supplied.

Cleaning involves the tanks and the oil collection system. The stainless steel filter in the oil collection tank requires attention.

This model is listed in the catalogue under gas fryers.
