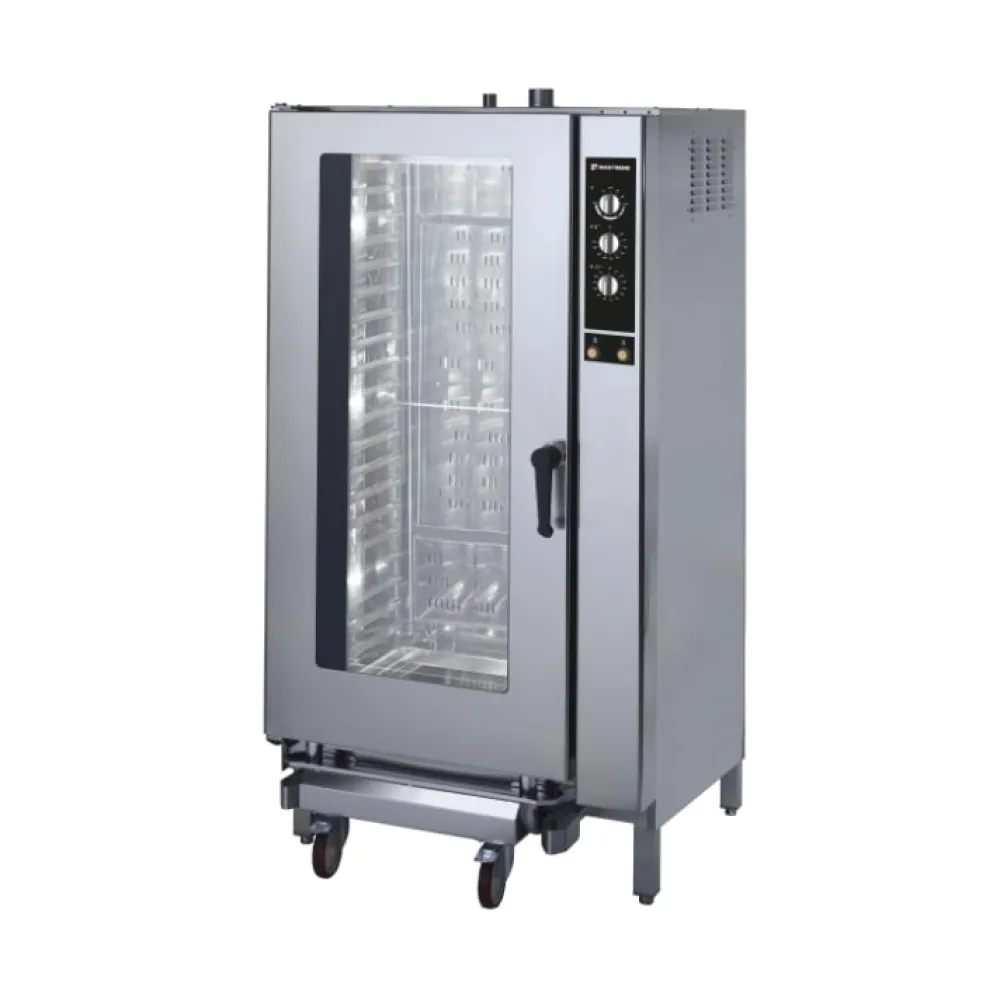

Gas convection oven Inoxtrend CDA120G

A gas convection oven circulates hot air with a fan, spreading heat evenly around every tray. The fan in the CDA120G can reverse direction, preventing hot spots and giving the same bake on every shelf. Direct steam injection adds moisture at the touch of a button, keeping roasts juicy and pastry crusts crisp.

The operator loads up to twenty full-size gastronorm trays, each spaced 65 mm apart for air to move freely. A touch screen displays 150 factory recipes organised in six folders—meat, fish, vegetables, bakery, desserts and poultry—plus 150 blank slots for custom programmes. Once the recipe is selected, the oven sets temperature, fan speed, steam level and cooking time automatically. An external core probe monitors the centre of the food, ending the cycle when the target temperature is reached. The double-glazed door stays cool to the touch and is lit by LED lamps so the progress can be checked without opening.

Stainless steel is used throughout the cabinet and chamber, with rounded corners to prevent food debris collecting. An automatic washing system dissolves detergent tablets and circulates the solution, rinsing afterwards without manual scrubbing. The exhaust valve vents steam and cooking odours, while a trolley and grill are supplied for loading and unloading trays at bench height.

The 29 kW gas burner heats the chamber from 30 °C to 270 °C, covering everything from gentle proofing to high-temperature roasting. A 220–240 V electrical supply powers the fan, touch screen, probe and LED lighting. The footprint of 970 mm wide by 1030 mm deep fits standard worktop layouts, while the 1880 mm height clears most kitchen ceilings without modification.

Cleaning is limited to wiping the touch screen, emptying the detergent drawer and occasionally checking the exhaust valve for blockages. The USB port allows recipe back-ups and software updates to be transferred from a memory stick.

The CDA120G is listed in the Inoxtrend Professional Cooking catalogue under Gas Convection Ovens.
