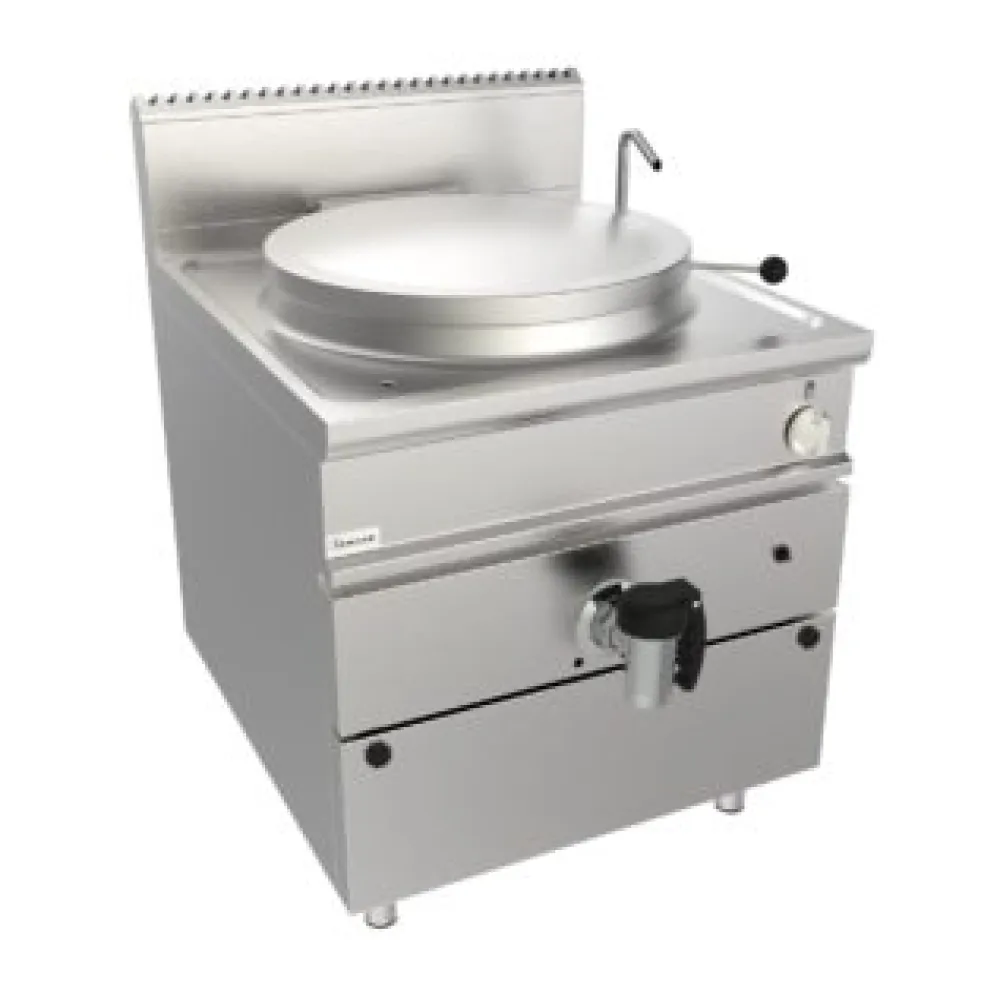

Gas boiling pot CASTA LQ/PDG410

This CASTA LQ/PDG410 is a gas boiling pan designed for professional kitchens. Boiling pans of this type heat ingredients directly within a vessel, allowing for large-scale cooking of liquids or semi-liquids such as stocks, sauces, soups, and stews.

The operating principle involves direct heating from gas burners located beneath the main vessel. These burners provide the heat necessary to bring the contents to a boil. The pan itself is constructed from materials to withstand constant use and high temperatures.

Use of the boiling pan begins with filling the water tank via the built-in tap and swivel hose. Once filled, ingredients can be added. Heating is initiated using the piezoelectric ignition system, which also activates a pilot flame. The unit features a minimum/maximum temperature control, incorporating a thermocouple safety system to monitor and regulate the heat. A manually resettable safety thermostat is also fitted to prevent overheating. The balanced lid, complete with a heat-resistant handle, helps to retain heat during cooking and can be easily lifted.

The construction features a water tank made from AISI 316 stainless steel, known for its resistance to corrosion and heat. The pan walls, support structure, and outer casing are made from AISI 304 stainless steel, finished with a satin effect. The outer casing provides an easy-to-clean exterior.

Controls include the built-in tap for water filling, the piezoelectric ignition for starting the burners, and the minimum/maximum temperature control with its integrated safety system. The manually resettable safety thermostat offers an additional layer of protection.

The power rating of 21 kW indicates the significant heat output available from the gas burners, enabling rapid heating and maintaining cooking temperatures. The dimensions of 800 mm in length, 900 mm in width, and 850 mm in height define the unit's footprint and placement requirements within a kitchen.

Cleaning involves the materials used in its construction, primarily stainless steel surfaces which can be wiped down.

This model is listed in the catalogue for gas cooking kettle applications.
