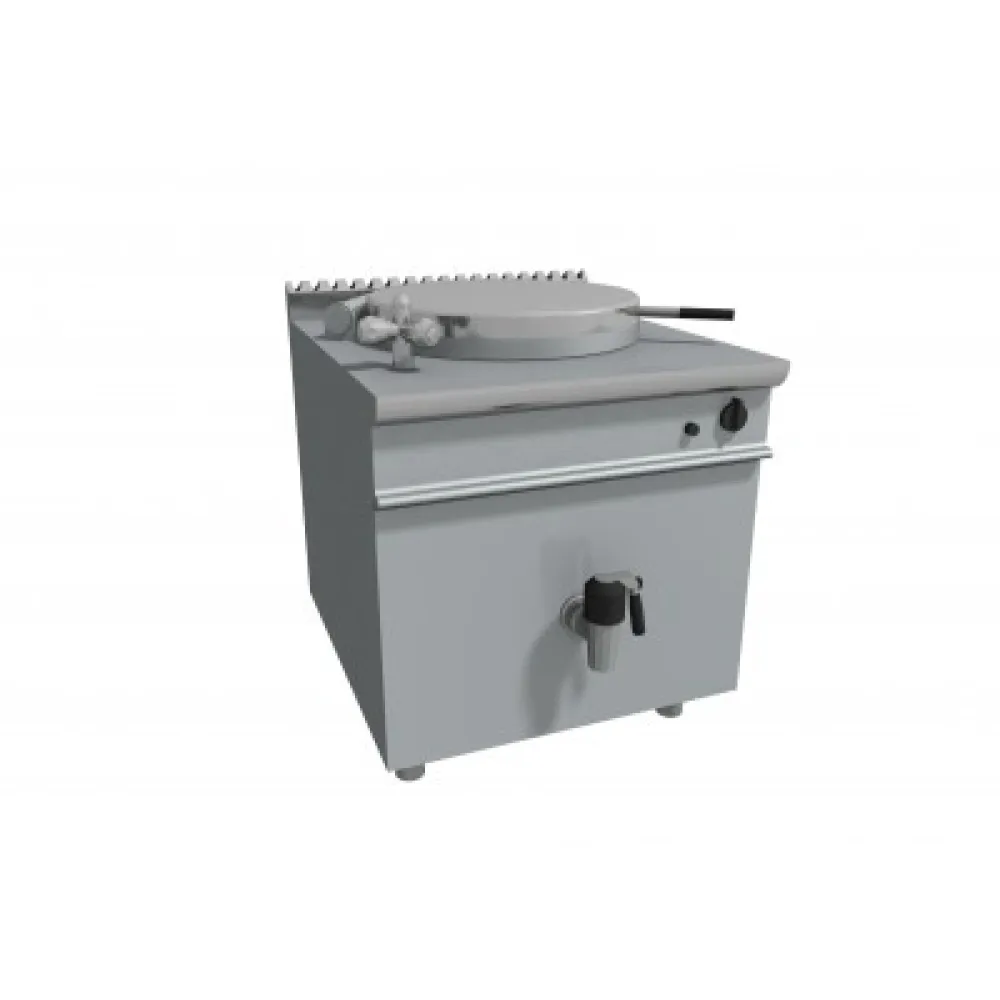

Gas boiling pot CASTA L9/PDG410

The CASTA Gas Boiling pan Lady 900 L9/PDG410 is a professional-grade boiling pan designed for commercial kitchens. This appliance uses gas burners to heat the contents of the cooking vessel.

Operation involves filling the stainless steel AISI 316 cooking vessel with ingredients and water. The gas tube burners beneath the vessel provide heat. The user ignites the burners using the piezo igniter and pilot flame. A minimum/maximum cock controls the gas flow, and a thermocouple safety system is integrated to shut off the gas if the pilot flame is extinguished. Heating continues until the desired temperature is reached. An over-temperature blocking mechanism, featuring a manual resettable safety thermostat, prevents overheating. Once cooking is complete, contents can be drained using the chrome-plated brass front drain tap, which has an insulated handle.

The construction features a cooking vessel made from stainless steel AISI 316. The supporting structure, outer cover, and walls are all in stainless steel AISI 304. The lid is also AISI 304 stainless steel and is fitted with an athermic handle for safe operation. Heat insulation is achieved through thick glass fibre panels. The unit stands on adjustable feet made from stainless steel AISI 304, allowing for stable placement on uneven surfaces.

Controls include the piezo ignition system for starting the pilot flame and the minimum/maximum cock for regulating gas supply. The safety thermostat provides over-temperature protection.

The power rating of 21 kW indicates the rate at which the appliance consumes gas energy to generate heat. The 102 L volume specifies the maximum capacity of the cooking vessel. The dimensions of 800 mm in length, 900 mm in width, and 850 mm in height define the unit's footprint and spatial requirements. A weight of 160 kg indicates the mass of the appliance.

Cleaning involves the stainless steel surfaces and the drain tap. The outer cover has a fine satin finish.

This model is listed in catalogues for use with gas cooking kettles.
