Fryer Novameta BHS-Z-FRIES4-121/78/67

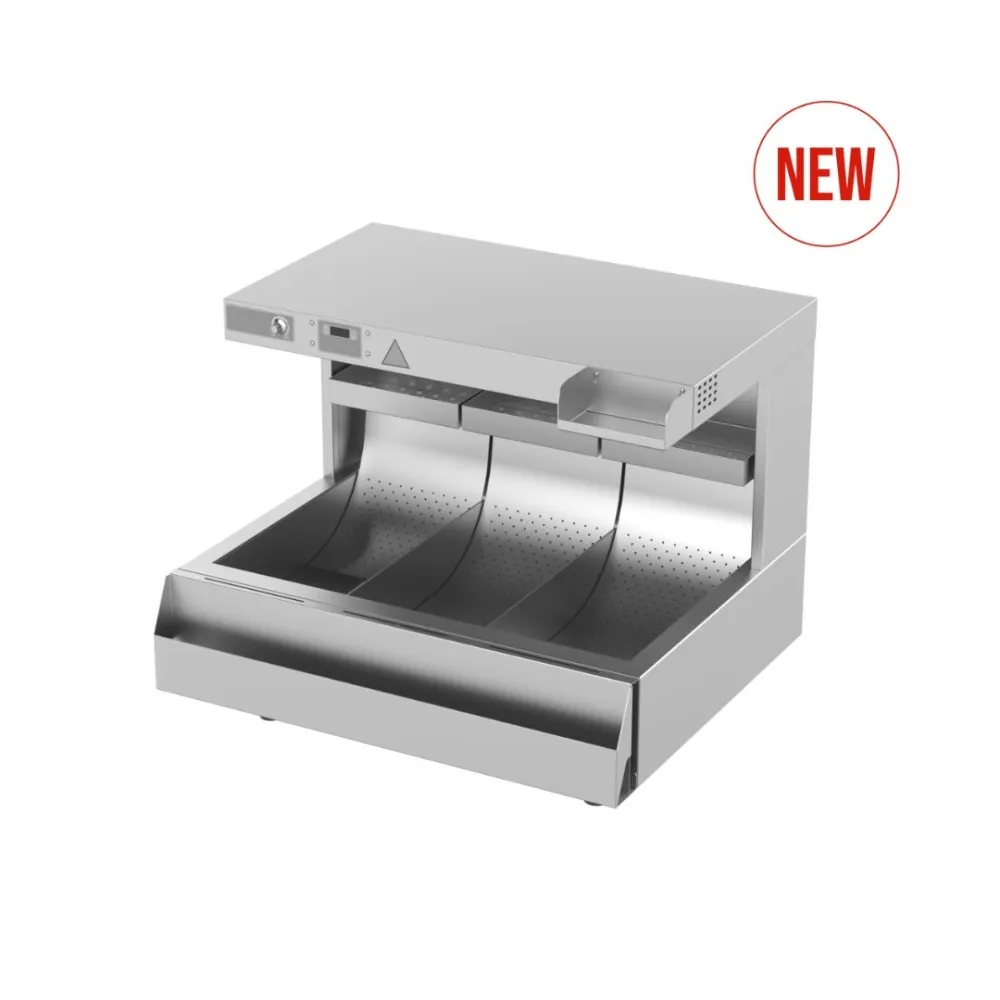

This Novameta BHS-Z-FRIES4-121/78/67 is a fries dump station designed for the handling of fried products. Its primary function is to receive freshly fried items, allowing them to be seasoned and held at a controlled temperature before serving.

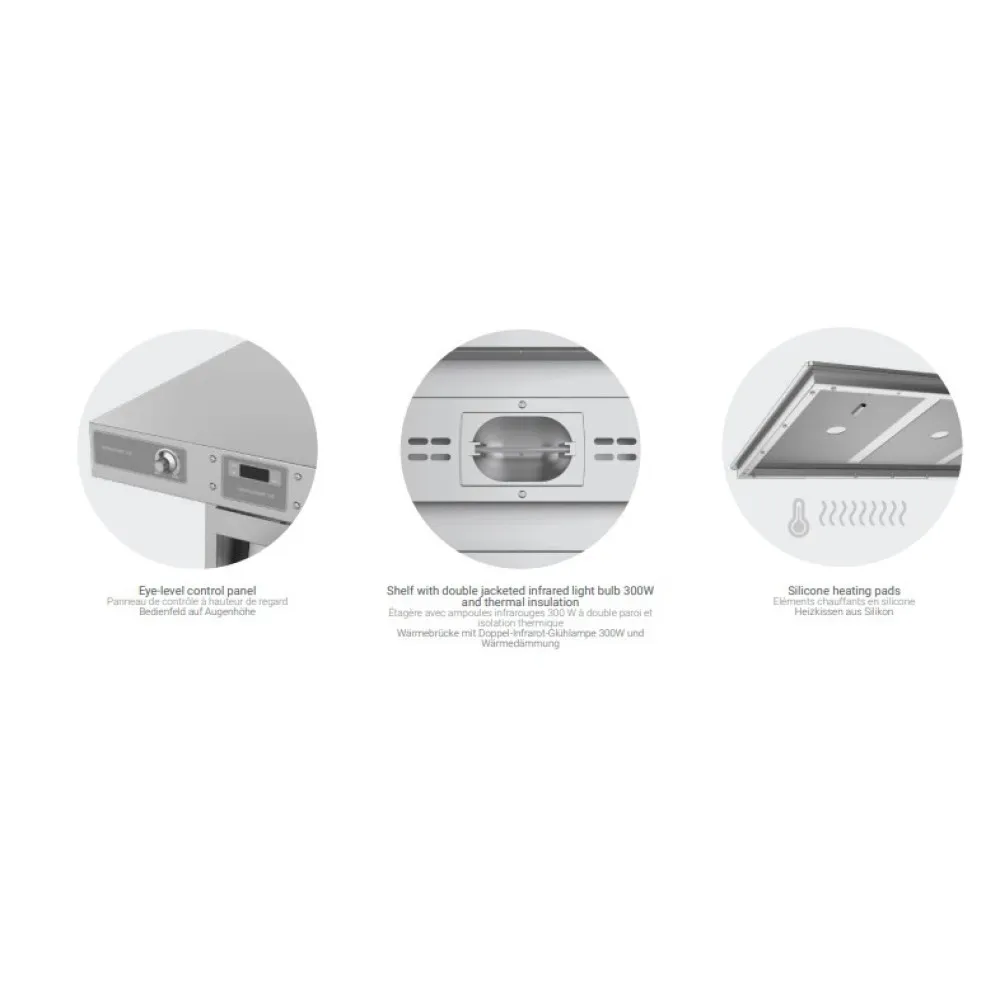

The operating principle involves maintaining a specific environment for the fried food. The unit can be heated up to a maximum temperature of 60 °C, which helps to keep the fries warm and prevent them from becoming cold or soggy while awaiting seasoning and bagging. This temperature control is managed by the unit's internal systems.

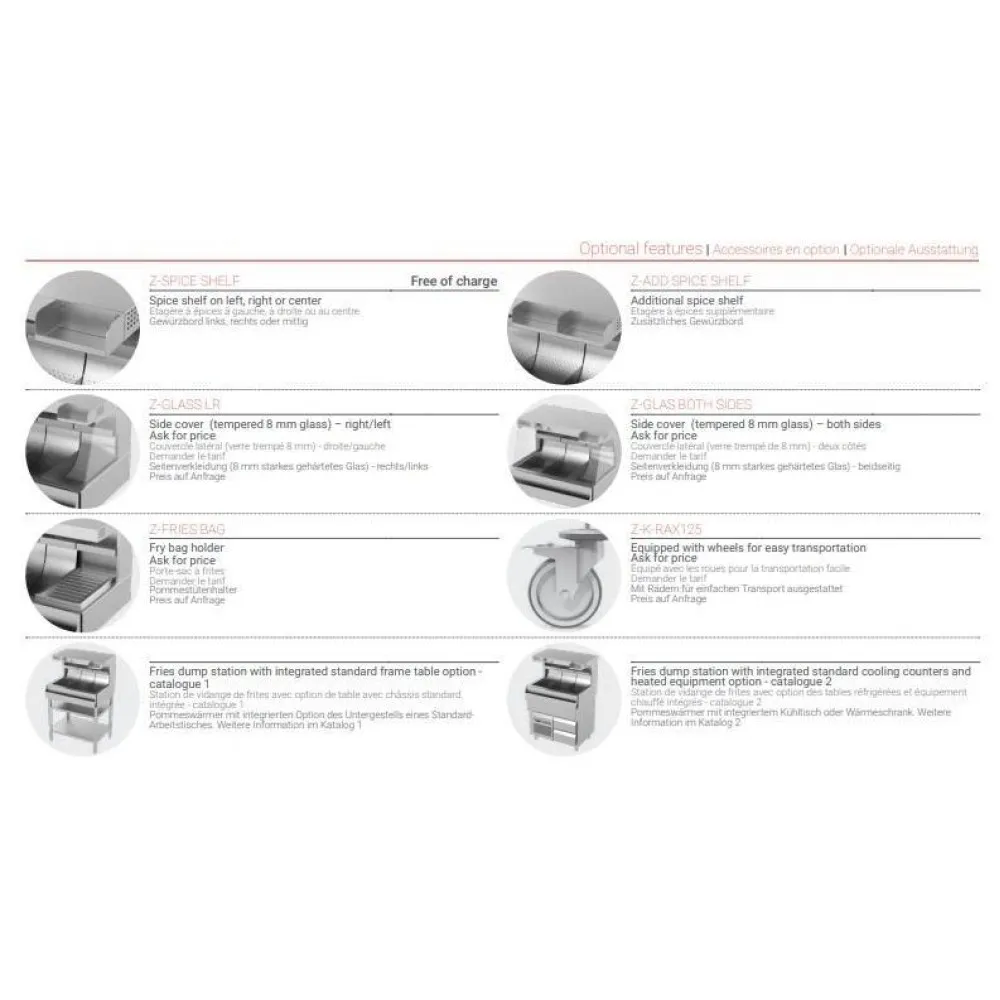

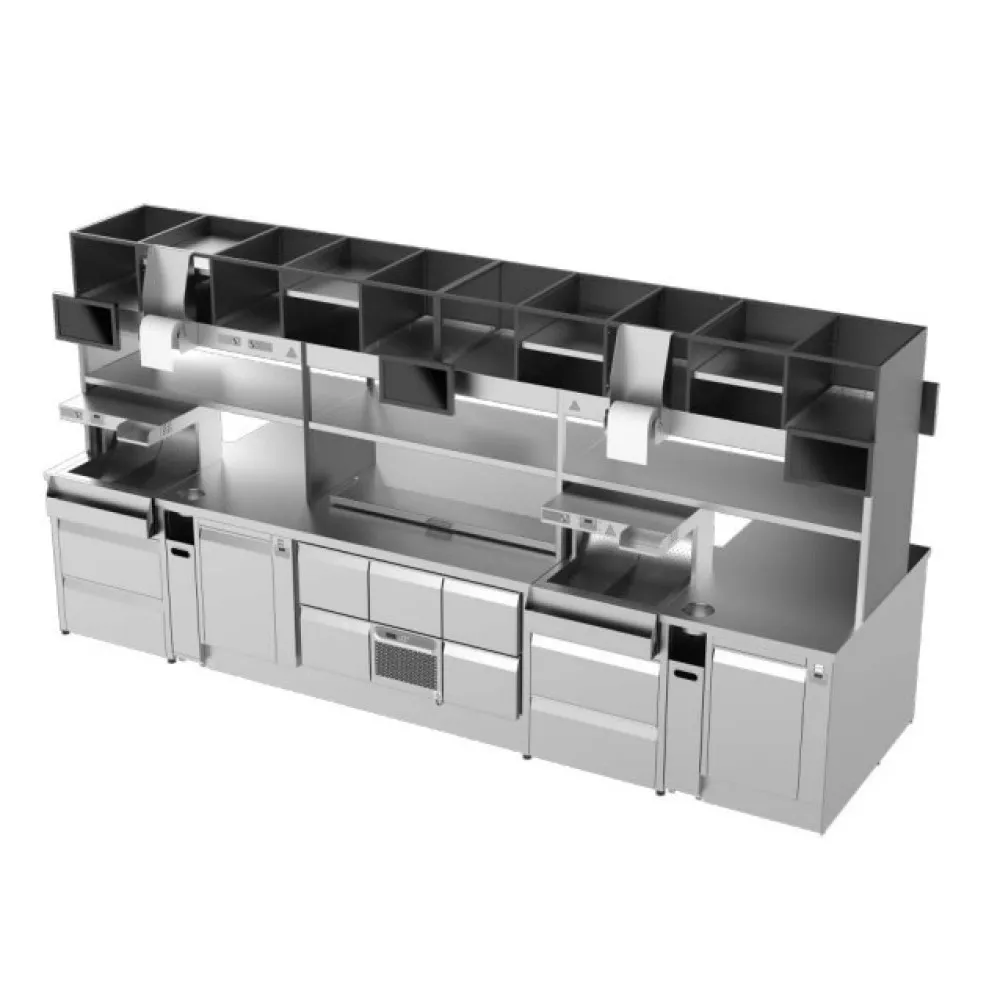

Use begins with placing the dump station in the desired location. Freshly fried items are then transferred into the station. The unit is equipped with a fry bag holder to facilitate the bagging process. Seasoning can be applied using the integrated spice shelves, which can be positioned on the left, right, or in the middle of the unit, with an additional shelf also available. For ease of movement and positioning, the station is fitted with wheels. The construction includes tempered 8 mm glass side covers, available on one or both sides, and can be configured with an integrated standard frame table or standard cooling counters and heated equipment options.

Key specifications include its dimensions: 1210 mm in length, 780 mm in width, and 670 mm in height. It operates on a 230 V supply and has a power consumption of 3.4 kW. The maximum operating temperature is 60 °C. The unit is constructed with 4 parts and features tempered glass side covers.
