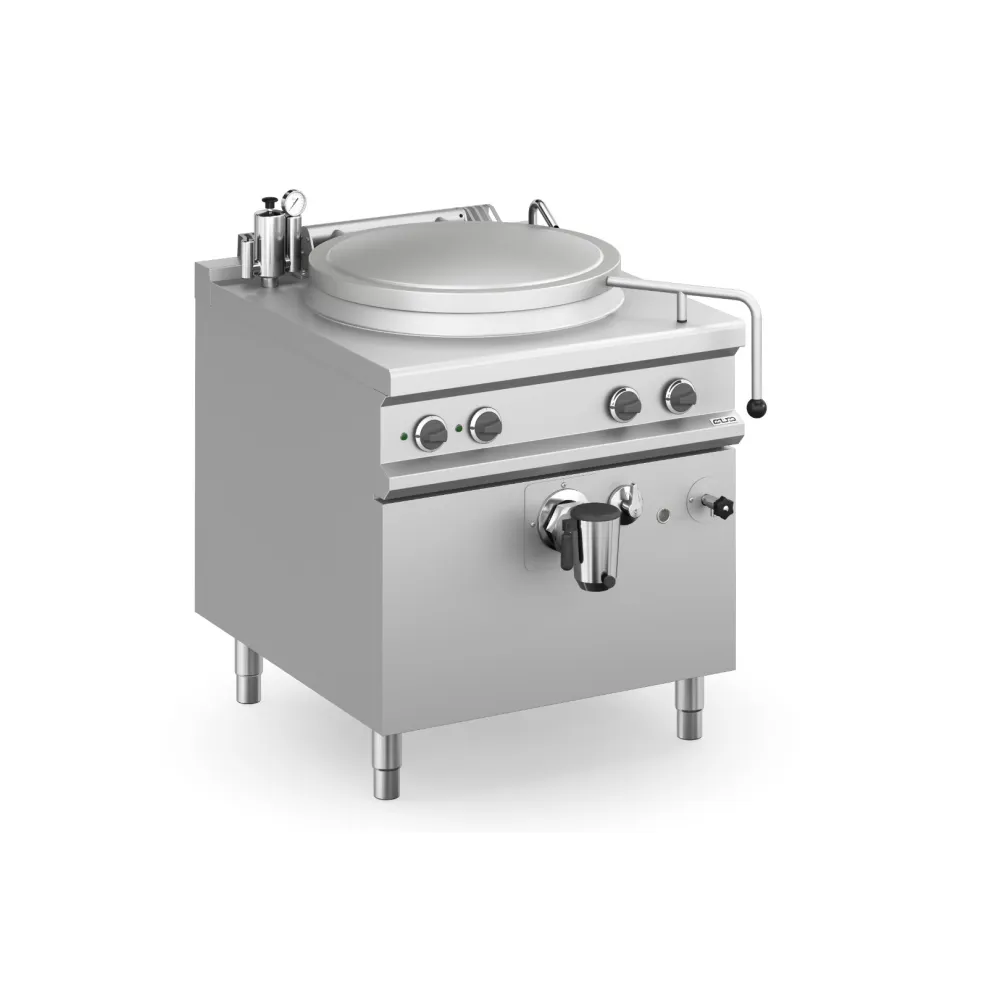

Electric boiling pot MBM MPEE98A150I

The MBM MAGISTRA PLUS 900 is an electric boiling pan, article number MPEE98A150I. This appliance is designed for cooking large volumes of food where boiling is the primary method.

An electric boiling pan operates by heating water or other liquids within an insulated jacket surrounding the main cooking vessel. This jacket is filled with water and heated by electric elements. The steam generated within the jacket then heats the contents of the main pan. This indirect heating method prevents scorching and allows for precise temperature control.

To use the appliance, the main pan is filled with ingredients and water. The 4-position switch is used to adjust the power output to the heating elements. A pressure gauge monitors the steam pressure in the interspace, which is automatically controlled. A safety valve is also fitted, accompanied by a gauge.

The construction features AISI 304 stainless steel for the tank sides and interspace, with AISI 316 stainless steel used for the bottom of the pan. The lid is also AISI 304 stainless steel. The 1 mm thick worktop is made from AISI 18/10 stainless steel. An interspace water-level viewer is located on the front panel for monitoring the jacket water level.

The power rating of 14.4 kW indicates the electrical load required for operation. The unit measures 800 mm in length, 900 mm in width, and 850 mm in height, with a diameter of 600 mm for the main pan. It operates on a 400 V, 3-phase electrical supply and has a total volume capacity of 150 litres. The weight of the appliance is 134 kg.

Cleaning involves the stainless steel surfaces. The interspace water level should be maintained and monitored via the viewer.

This model is listed in the catalogue under electric cooking kettles.
